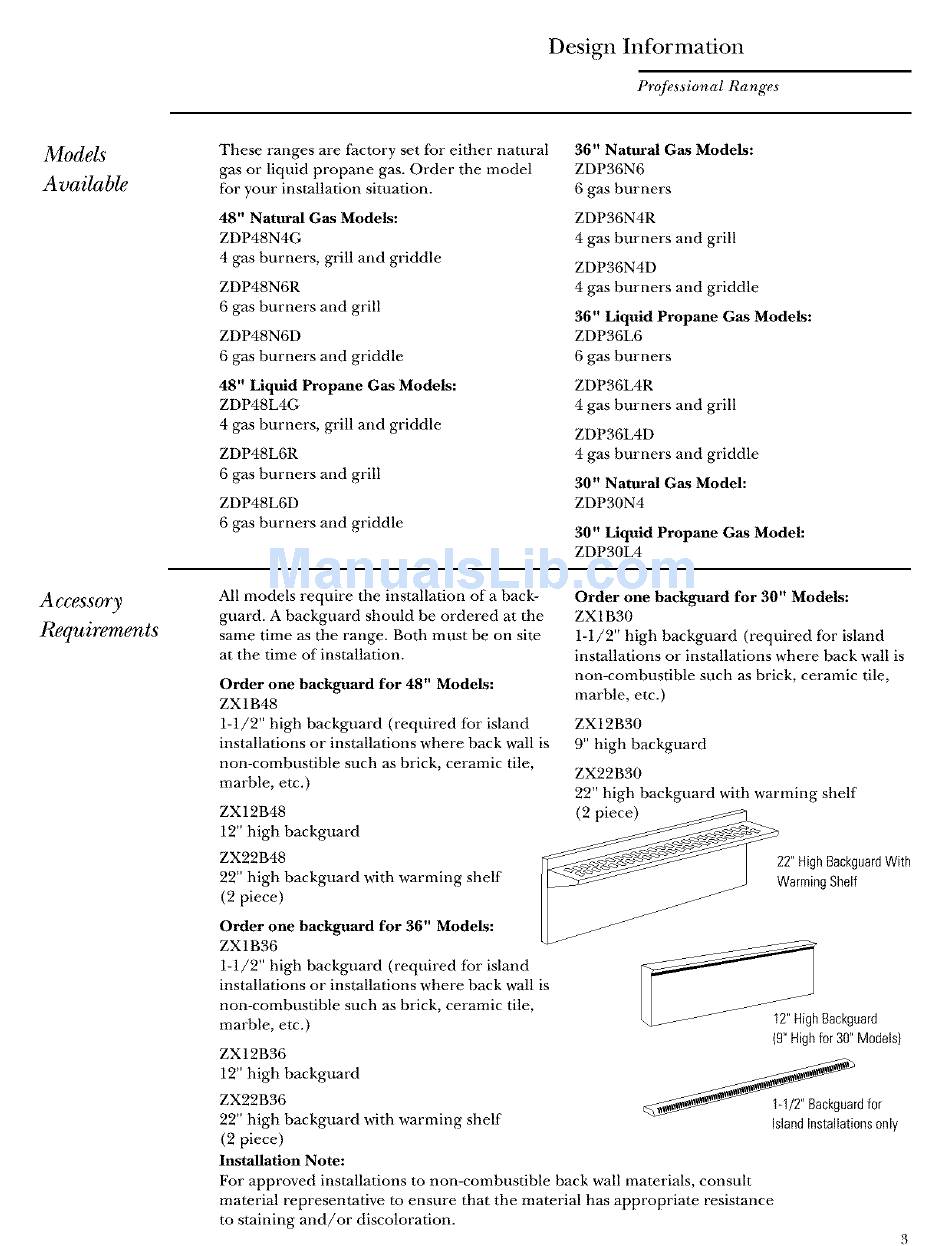

Design
Information
Pr@ssional
Ranges
Models"
Available
These
ranges
are factory
set fbr either
natural
gas or liquid
propane
gas. Order
the model
for your installation
situation.
48" Natural
Gas Models:
ZDP48N4G
4 gas burners,
grill and griddle
ZDP48N6R
6 gas burners
and grill
ZDP48N6D
6 gas burners
and griddle
48" Liquid
Propane
Gas Models:
ZDP48L4G
4 gas burners,
grill and griddle
ZDP48L6R
6 gas burners
and grill
ZDP48L6D
6 gas burners
and griddle
36" Natural
Gas Models:
ZDP36N6
6 gas burners
ZDP36N4R
4 gas burners
and grill
ZDP36N4D
4 gas burners
and griddle
36" Liquid
Propane
Gas Models:
ZDP36L6
6 gas burners
ZDP36L4R
4 gas burners
and grill
ZDP36L4D
4 gas burners
and griddle
30" Natural
Gas Model:
ZDP30N4
30" Liquid
Propane
Gas Model:
ZDP30L4
A ccesso, 7
Requirements
All models require
the installation
of a back-
guard. A backguard
should be ordered
at the
same time as the range. Both must be on site
at the time of installation.
Order
one backguard
for 48" Models:
ZXIB48
1-1/2"
high
backguard
(required
for island
installations
or installations
where
back wall is
non-combustible
such as brick,
ceramic
tile,
marble,
etc.)
ZX12B48
12" high
backguard
ZX22B48
22" high
backguard
with warming
shelf
(2 piece)
Order
one backguard
for 36" Models:
ZXIB36
1-1/2"
high
backguard
(required
for island
installations
or installations
where
back wall is
non-combustible
such as brick,
ceramic
tile,
marble,
etc.)
Order
one backguard
for 30" Models:
ZX1B30
1-1/2"
high
backguard
(required
for island
installations
or installations
where
back wall is
non-combustible
such as brick,
ceramic
tile,
marble,
etc.)
ZX12B30
9" high
backguard
ZX22B30
22" high
backguard
with warming
shelf
2 hgB;':gf
00rdW
ZX12B36
12" high
backguard
ZX22B36
22" high
backguard
with warming
shelf
(2 piece)
Installation
Note:
For approved
installations
to non-combustible
back wall materials,
consult
material
representative
to ensure
that the material
has appropriate
resistance
to staining
and/or
discoloration.
12"High13ackguard
(9" Highfor 30" Models)
_rd
for
IslandInstallatioasonly
