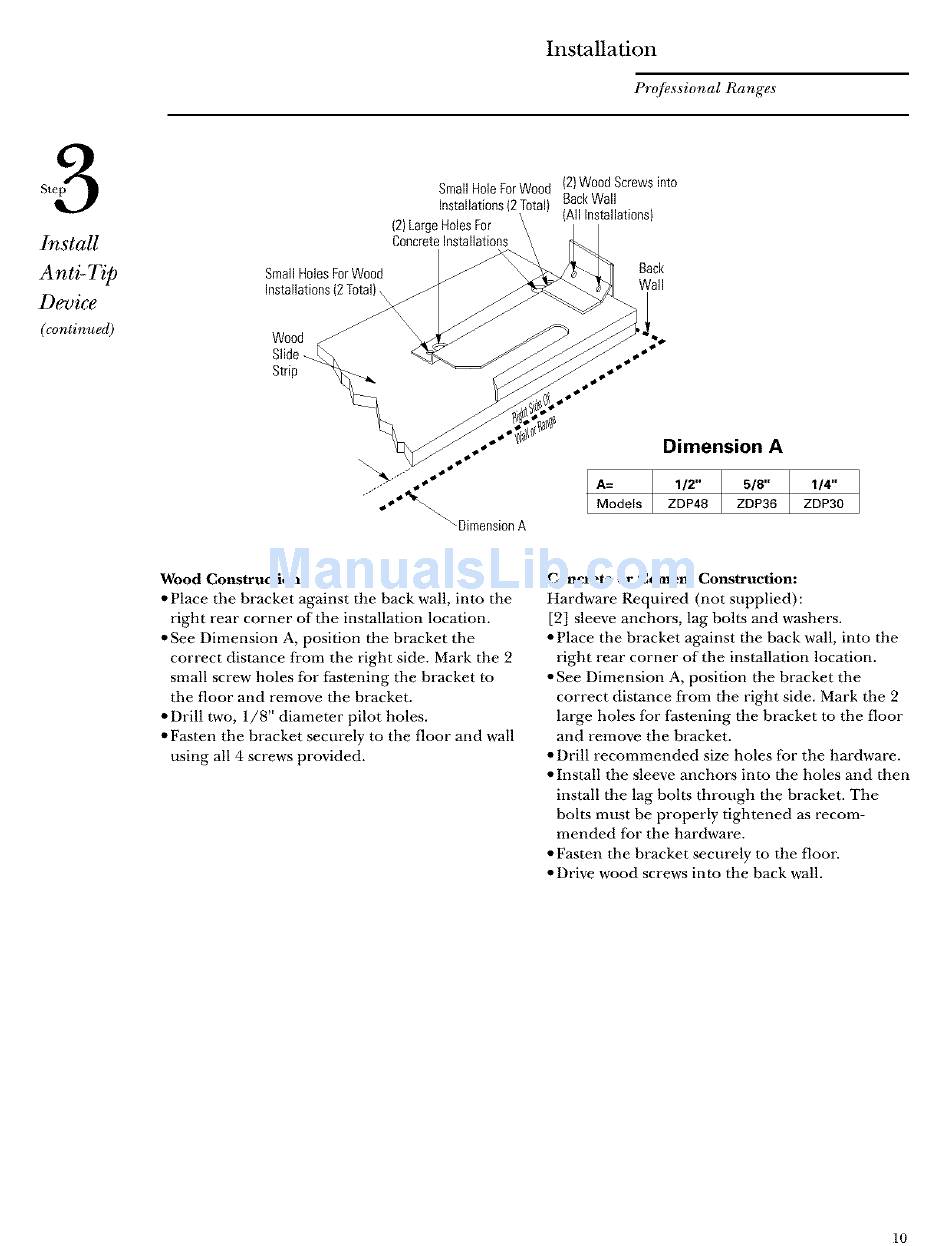

Installation
Pro/essional Ranges
Install
Anti-Tip
Device
(continued)
Small HolesForWood
installations(2 Total)\
Wood J
Slide __
Strip
Small HoleForWood (2}Wood Screwsinto
Installations(2Total) BackWall
(All Installations)
(2)LargeHolesFor \
ConcreteInstallations
Sack
Wall
\Dimension A
Dimension A
A=dels[V'o 112" 5/8" 1/4"
ZDP48 ZDP36 ZDP30
Wood Construction:
• Place the bracket against the back wall, into the
right rear corner of the installation location.
• See Dimension A, position the bracket the
correct distance from the right side. Mark the 2
small screw holes for fastening the bracket to
the floor and remove the bracket.
• Drill two, 1/8" diameter pilot holes.
• Fasten the bracket securely to the floor and wall
using all 4 screws provided.
Concrete or Cement Construction:
Hardware Required (not supplied):
[2] sleeve anchors, lag bolts and washers.
• Place the bracket against the back wall, into the
right rear corner of the installation location.
• See Dimension A, position the bracket the
correct distance from the right side. Mark the 2
large holes for fastening the bracket to the floor
and remove the bracket.
• Drill recommended size holes for the hardware.
• Install the sleeve anchors into the holes and then
install the lag bolts through the bracket. The
bolts must be properly tightened as recom-
mended for the hardware.
• Fasten the bracket securely to the floor.
• Drive wood screws into the back wall.
