6. The IP Extender cables

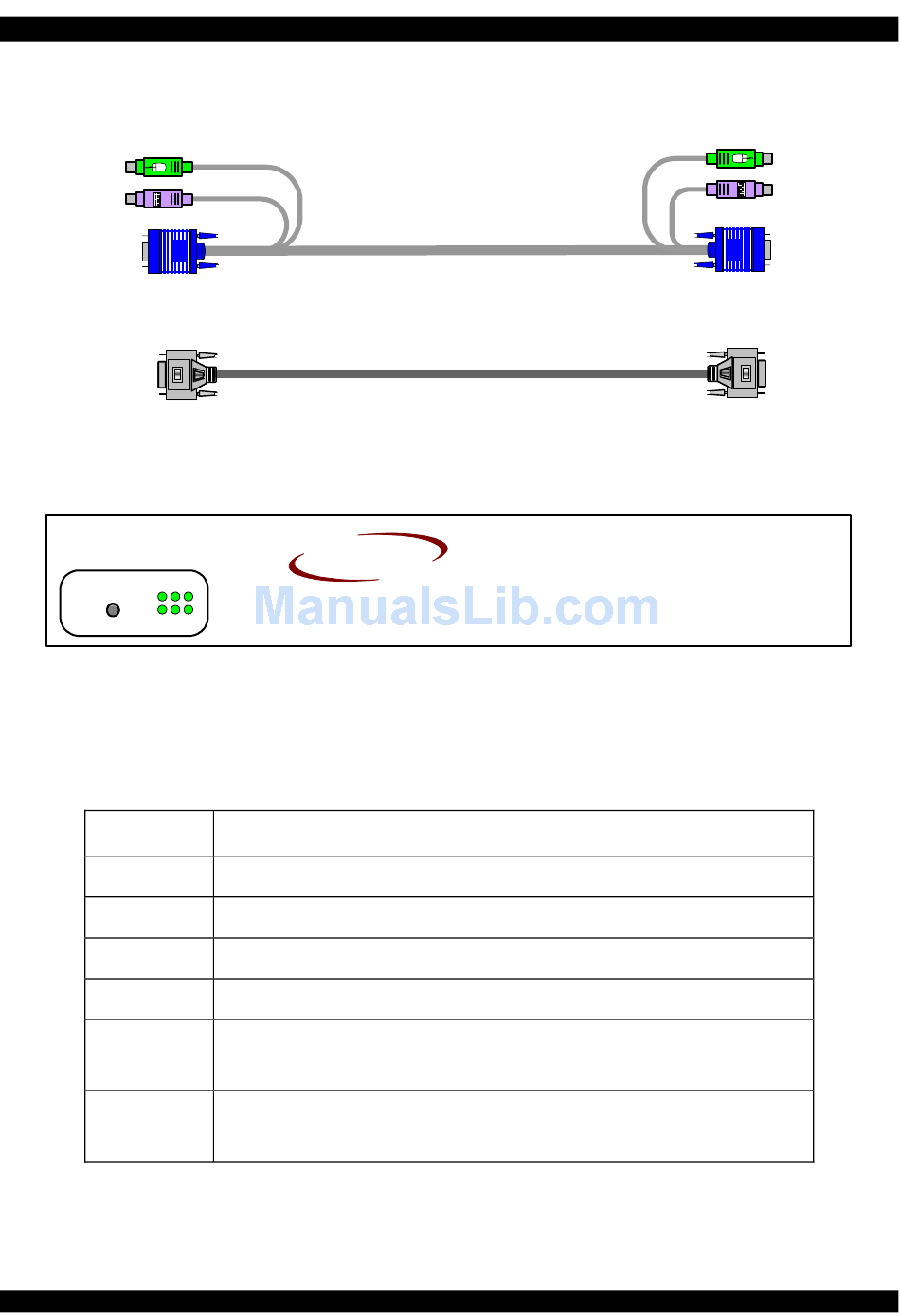

The IP Extender package contains the following cables.

7. IP Extender front panel

Figure 3 illustrates the IP Extender front panel.
G I
RESET
V R
The Reset button resets the IP Extender.
The table below explains the functions of the front panel LEDs.
LED
V
R
E
F
I
G
S M A R T
F
E
Function
Video signals indicator
IP Extender system is running
Ethernet connection in 100 Mbit mode
Ethernet connection in full-duplex mode
ISDN subsystem is available and active (EMEA
version only)
Remote user is logged on and the video engine is
outputting data
USER GUIDE
3 in 1 CPU cable
Null Modem cable
IP
Extender
Figure 3 Front panel
8
