Features of IP Extender

•
KVM (keyboard, video, mouse) access over IP, ISDN or analogous
telephone line.
•
Automatically senses video resolution for best possible screen capture
•
High-performance mouse tracking and synchronization
•
Connect a user console for direct access to KVM switch
•
Local Mouse suppression (only when using SUN's Java Virtual Machine)
IP Extender supports PS/2 type keyboards and mice and HD 15 video output. See
the pin assignments in Appendix C.
IP Extender automatically detects the current video mode of the console, however
manual tuning is recommended to get the best video quality. IP Extender will accept
video streams up to 110 MHz dot clock. This results in a screen resolution of
1280x1024 dots with a refresh rate of 75Hz.
4.

Remote power management

There are three remote power management options:
•
Internal reset/power
•
External scalable power switch box
•
IPMI Version 1.5
The management system to use depends on the remote server interface.
USER GUIDE
G I F
RESET
V
R E
G I F
RESET
V
R E
G I F
RESET
V
R E
G I F
RESET
V R E
IP Network

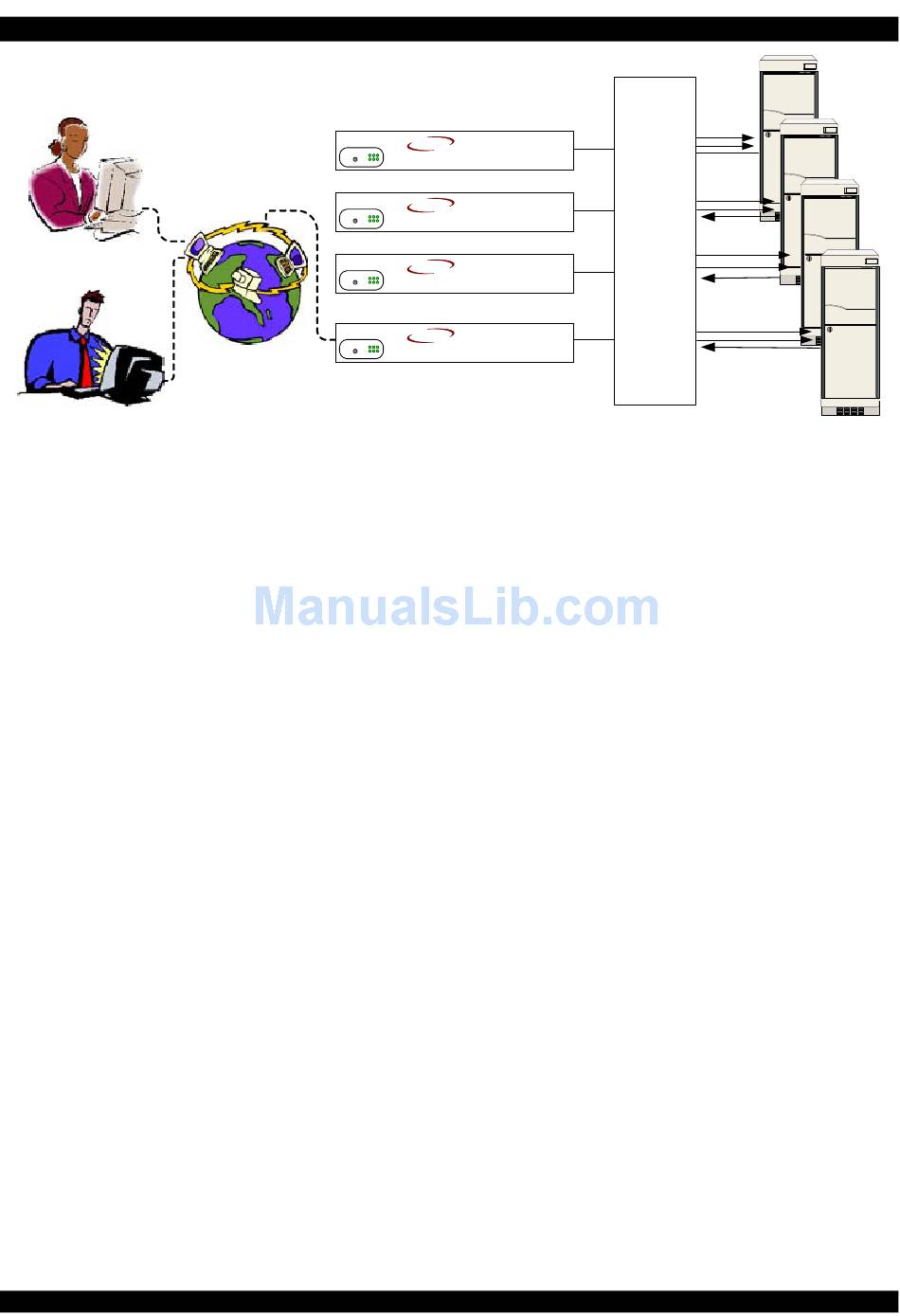

Figure 2 Multiple users/servers
