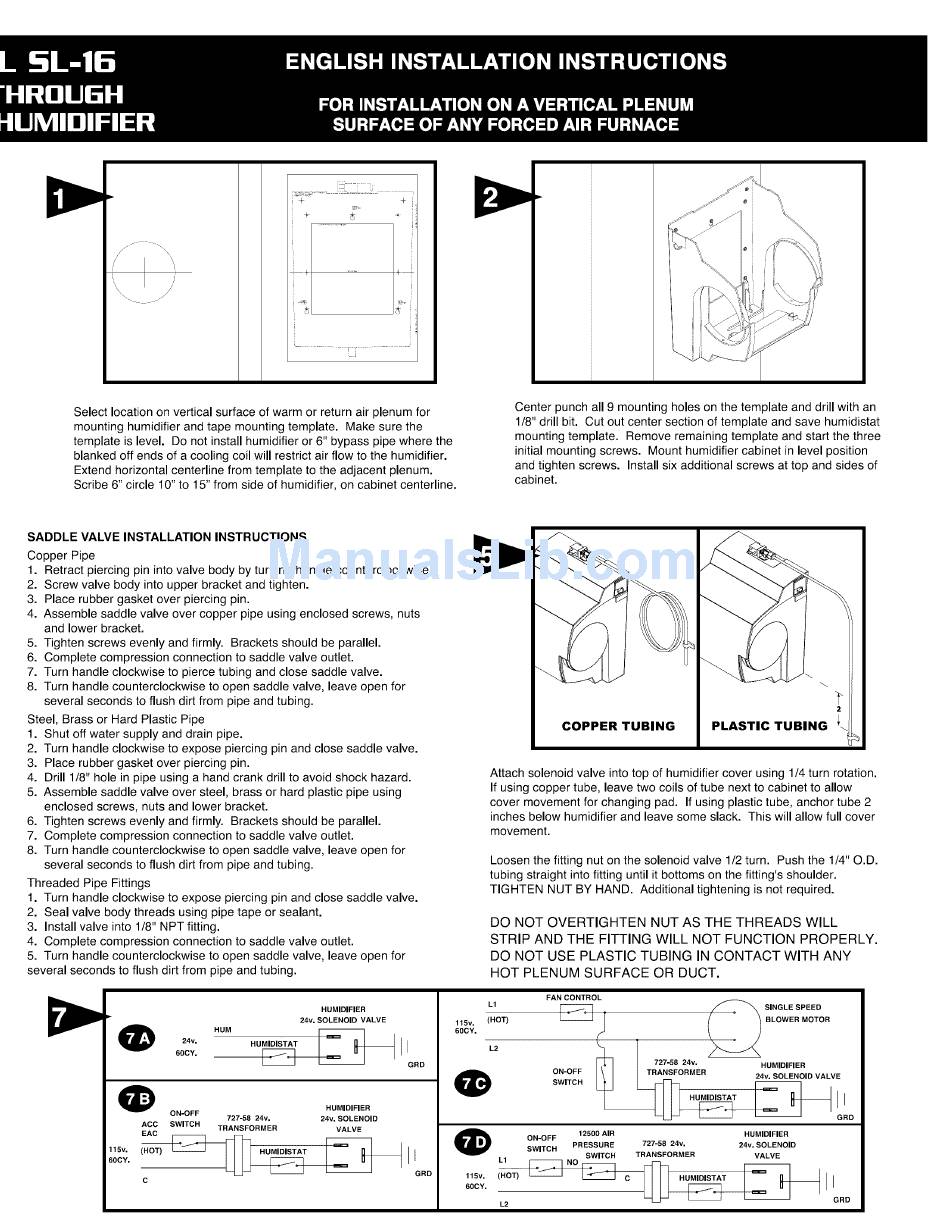

Select location on vertical surface of warm or return air plenum for
mounting humidifier and tape mounting template. Make sure the
template is level. Do not install humidifier or 6" bypass pipe where the
blanked off ends of a cooling coil will restrict air flow to the humidifier.
Extend horizontal centerline from template to the adjacent plenum.
Scribe 6" circle 10" to 15" from side of humidifier, on cabinet centerline.
Center punch all 9 mounting holes on the template and drill with an
1/8" drill bit. Cut out center section of template and save humidistat
mounting template. Remove remaining template and start the three
initial mounting screws. Mount humidifier cabinet in level position
and tighten screws. Install six additional screws at top and sides of
cabinet.
SADDLE VALVE INSTALLATION INSTRUCTIONS
Copper Pipe
1. Retract piercing pin into valve body by turning handle counterclockwise.
2. Screw valve body into upper bracket and tighten.
3. Place rubber gasket over piercing pin.
4. Assemble saddle valve over copper pipe using enclosed screws, nuts
and lower bracket.
5. Tighten screws evenly and firmly. Brackets should be parallel.
6. Complete compression connection to saddle valve outlet.
7. Turn handle clockwise to pierce tubing and close saddle valve.
8. Turn handle counterclockwise to open saddle valve, leave open for
several seconds to flush dirt from pipe and tubing.
Steel, Brass or Hard Plastic Pipe
1. Shut off water supply and drain pipe.
2. Turn handle clockwise to expose piercing pin and close saddle valve.
3. Place rubber gasket over piercing pin.
4. Drill 1/8" hole in pipe using a hand crank drill to avoid shock hazard.
5. Assemble saddle valve over steel, brass or hard plastic pipe using
enclosed screws, nuts and lower bracket.
6. Tighten screws evenly and firmly. Brackets should be parallel.
7. Complete compression connection to saddle valve outlet.
8. Turn handle counterclockwise to open saddle valve, leave open for
several seconds to flush dirt from pipe and tubing.
Threaded Pipe Fittings
1. Turn handle clockwise to expose piercing pin and close saddle valve.
2. Seal valve body threads using pipe tape or sealant.
3. Install valve into 1/8" NPT fitting.
4. Complete compression connection to saddle valve outlet.
5. Turn handle counterclockwise to open saddle valve, leave open for
several seconds to flush dirt from pipe and tubing.
COPPER TUBING PLASTIC TUBING
Attach solenoid valve into top of humidifier cover using 1/4 turn rotation.
If using copper tube, leave two coils of tube next to cabinet to allow
cover movement for changing pad. If using plastic tube, anchor tube 2
inches below humidifier and leave some slack. This will allow full cover
movement.
Loosen the fitting nut on the solenoid valve 1/2 turn. Push the 1/4" O.D.
tubing straight into fitting until it bottoms on the fitting's shoulder.
TIGHTEN NUT BY HAND. Additional tightening is not required.
DO NOT OVERTIGHTEN NUT AS THE THREADS WILL
STRIP AND THE FITTING WILL NOT FUNCTION PROPERLY.
DO NOT USE PLASTIC TUBING IN CONTACT WITH ANY
HOT PLENUM SURFACE OR DUCT.
HUMIDIFIER
24v. SOLENOID VALVE
24v. HU I
60CY.
GRD
_1 ON-OFF HUMIDIFIER
727-58 24v. 24v. SOLENOID
ACC SWITCH TRANSFORMER VALVE
EAC
50cv.11sv" (HOT) _ll
GRD
C
L1
115v. (HOT)
60CY.
L2
O
L1
115v. (HOT)
60CY.
FAN CONTROL
BLOWER MOTOR
727_8 24v. HUMIDIFIER
ON-OFF 24v. SOLENOID VALVE
TRANSFORMER
SWITCH _
12500 AIR HUMIDIFIER
ON-OFF
SWITCH PRESSURE 727-58 24v. 24v. SOLENOID
SWITCH TRANSFORMER VALVE
__ IIORD
