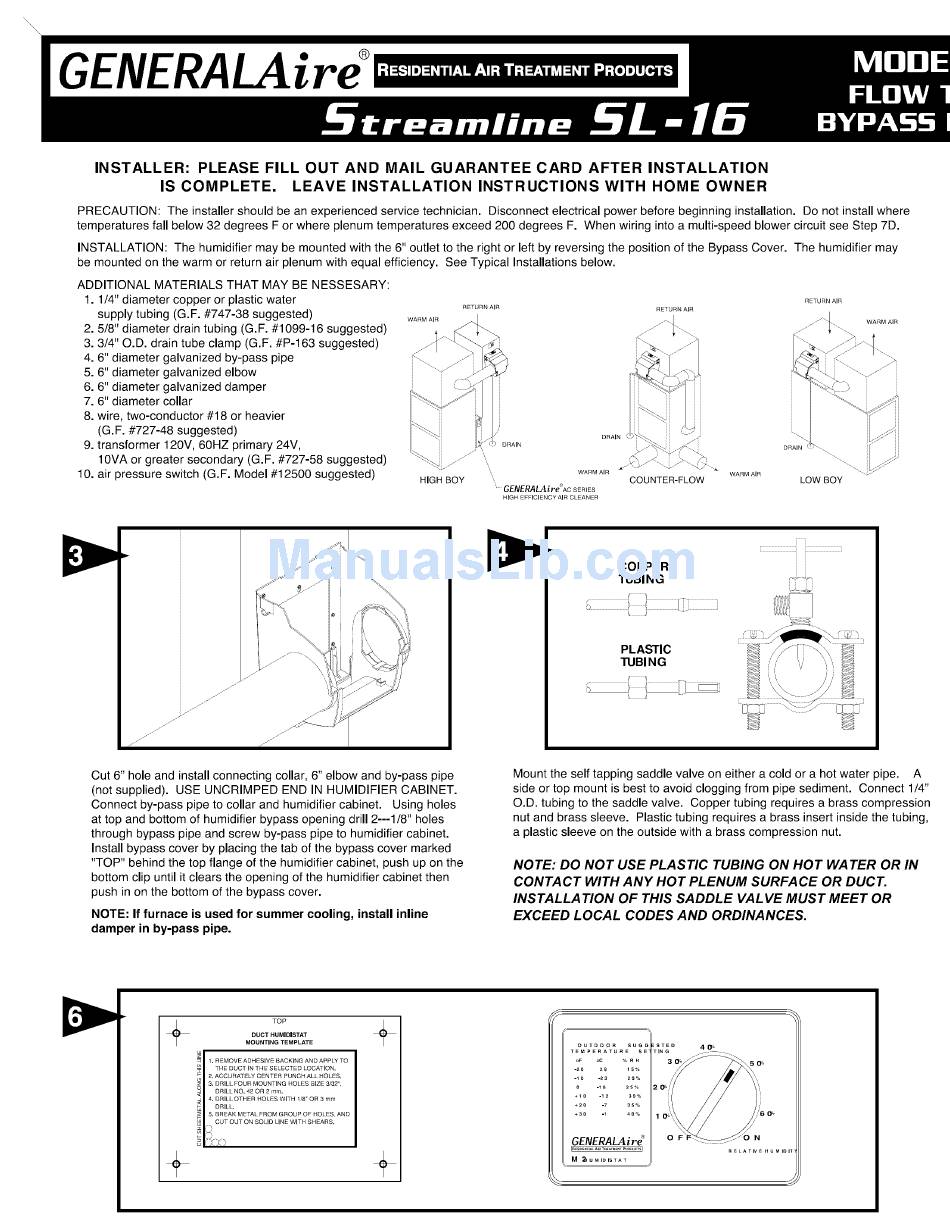

GeneralAire Streamline SL-16 Installation Instructions Manual

Flow through bypass
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

GENERAI_A_ire
INSTALLER:
PLEASE FILL OUT AND MAIL GUARANTEE
CARD AFTER INSTALLATION
IS COMPLETE.
LEAVE INSTALLATION
INSTRUCTIONS
WITH HOME OWNER
PRECAUTION:
The installer should be an experienced service technician.
Disconnect electrical power before beginning installation.
Do not install where
temperatures fall below 32 degrees F or where plenum temperatures
exceed 200 degrees F. When wiring into a multi-speed blower circuit see Step 7D.
INSTALLATION:
The humidifier may be mounted with the 6" outlet to the right or left by reversing the position of the Bypass Cover.
The humidifier may
be mounted on the warm or return air plenum with equal efficiency.
See Typical Installations below.
ADDITIONAL
MATERIALS THAT MAY BE NESSESARY:
1.1/4" diameter copper or plastic water
supply tubing (G.F. #747-38 suggested)
2. 5/8" diameter drain tubing (G.F. #1099-16 suggested)
3. 3/4" O.D. drain tube clamp (G.F. #P-163 suggested)
4. 6" diameter galvanized by-pass pipe
5. 6" diameter galvanized elbow
6. 6" diameter galvanized damper
7. 6" diameter collar
8. wire, two-conductor #18 or heavier
(G.F. #727-48 suggested)
9. transformer 120V, 60HZ primary 24V,
1OVA or greater secondary (G.F. #727-58 suggested)
10. air pressure switch (G.F. Model #12500 suggested)
HIGH BOY
',,,
",
WARMAIR
'
GENERALAIre"ACSERIES
HIGH EFFICIENCYAIRCLEANER
WARM
AIR
COUNTER-FLOW
LOW BOY
COPPER
TUBING
PLASTIC
TUBING
Cut 6" hole and install connecting collar, 6" elbow and by-pass pipe
(not supplied).
USE UNCRIMPED
END IN HUMIDIFIER CABINET.
Connect by-pass pipe to collar and humidifier cabinet.
Using holes
at top and bottom of humidifier bypass opening drill 2---1/8" holes
through bypass pipe and screw by-pass pipe to humidifier cabinet.
Install bypass cover by placing the tab of the bypass cover marked
"TOP" behind the top flange of the humidifier cabinet, push up on the
bottom clip until it clears the opening of the humidifier cabinet then
push in on the bottom of the bypass cover.
NOTE: If furnace
is used for summer
cooling, install inline
damper in by-pass
pipe.
Mount the self tapping saddle valve on either a cold or a hot water pipe.
A
side or top mount is best to avoid clogging from pipe sediment.
Connect 1/4"
O.D. tubing to the saddle valve. Copper tubing requires a brass compression
nut and brass sleeve. Plastic tubing requires a brass insert inside the tubing,
a plastic sleeve on the outside with a brass compression nut.
NOTE: DO NOT USE PLASTIC TUBING ON HOT WATER OR IN
CONTACT WITH ANY HOT PLENUM SURFACE OR DUCT.
INSTALLATION
OF THIS SADDLE VALVE MUST MEET OR
EXCEED LOCAL CODES AND ORDINANCES.
TOP
DUCT
HUMIDISTAT
MOUNTING
TEMPLATE
+
1, REMOVE
ADHESIVE
BACKING
AND APPLY
TO
THE
DUCT
IN THE SELECTED
LOCATION,
2, ACCU
RATE|Y
CENTER
PUNCH
ALL HOLES,
3. DRILl
FOUR
MOUNTING
HOLES
SIZE
3/32",
DRILL
NO, 42 OR 2 ram,
4. DRILl
OTHER
HOtES
WITH
118" OR 3 mm
DRILL,
5, BREAK
METAL
FROM
GROUP
OF HOLES
AND
CUT
OUT ON SOLID
LINE
WITH
SHEARS.
+
OUTDOOR
SUGC
TEMPERATURE
SE
oF
oC
% R H
-20
29
IS°/o
0
-lS
2S_
+I0
-12
30_
*2O
-7
3S%
+3O
-I
40_
GENERALAire_
E
]
M _UMIDISTAT
\
/
