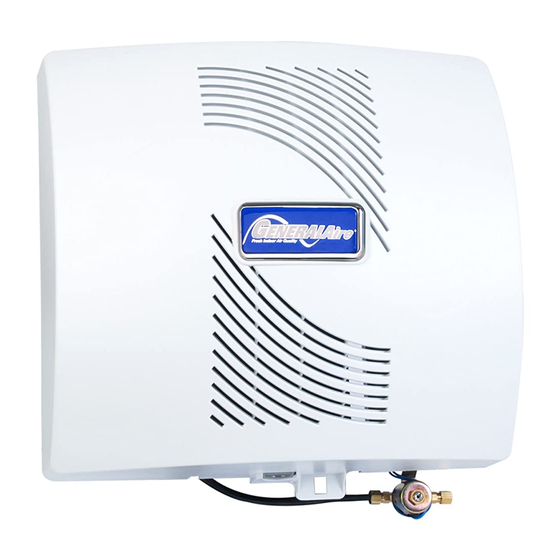

GeneralAire 1000 Installation & Owner's Manual
Hide thumbs
Also See for 1000:
- Installation instructions manual (8 pages) ,
- User instructions (7 pages) ,
- Manual (5 pages)
Table of Contents
Advertisement
Model 1000 (A & M)
Installation & Owners Manual
Please Read And Save These Instructions
• Installation by anyone other than a qualified contractor voids the warranty.
• Product designed for residential installation only. Commercial installation voids warranty.
• Modification or alteration of product, parts, installation instructions or local safety codes voids warranty.
General Filters, Inc.
43800 Grand River Avenue
Novi, Michigan 48375
Toll Free: (866) 476-5101
www.generalaire.com
• Read our full warranty policy at the end of this document.
Canadian General Filters, Ltd.
400 Midwest Rd.
Toronto, ON M1P3A9 Canada
Toll Free: (888) 216-9184
www.cgfproducts.com
Breathe Healthier
Humidifier
GFI #5730 & 5735
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GeneralAire 1000
Summary of Contents for GeneralAire 1000
- Page 1 Model 1000 (A & M) Humidifier GFI #5730 & 5735 Installation & Owners Manual Please Read And Save These Instructions • Installation by anyone other than a qualified contractor voids the warranty. • Product designed for residential installation only. Commercial installation voids warranty. • Modification or alteration of product, parts, installation instructions or local safety codes voids warranty. • Read our full warranty policy at the end of this document. Breathe Healthier General Filters, Inc. Canadian General Filters, Ltd. 43800 Grand River Avenue 400 Midwest Rd.
-
Page 2: Table Of Contents
Model 1000 Humidifier Installation Manual Model 1000 Table of Contents Table of Contents Specifications Unit Location Additional Materials That May Be Necessary: Installation Installing The Control Final Steps Of Installation How The Humidifier Works Maintenance Parts Drawing Humidifier Chassis Cut Out... -
Page 3: Specifications
Model 1000 Humidifier Installation Manual Specifications • Model: 1000 (A & M) Elite Flow Through Humidifiers (GFI #5730 & #5735) • Type: Fan Powered Flow Through • GPD: 18 Based on 120° F / 49° C Plenum Temperature • Warranty (Years): 10 • Replacement Vapor Pad... -
Page 4: Installation
Model 1000 Humidifier Installation Manual Installation 1. Select a location on the vertical surface of warm air plenum of a forced air handling system for mounting humidifier that allows for service and maintenance. Do not install humidifier where the blanked off ends of a cooling coil will restrict air flow to the humidifier. -
Page 5: Installing The Control
Model 1000 Humidifier Installation Manual Installation Cont. 5. GCV3412 Code Valve Installation Instructions* 1/2” TEE Copper Pipe: 1. CAUTION: Turn off water supply. 2. Clean pipe, fittings and valve with sandpaper or wire brush. 3. Apply a thin layer of flux to all surfaces to be soldered. - Page 6 Model 1000 Humidifier Installation Manual Installing The Control, Cont. ON-OFF HUMIDIFIER SWITCH 120v. OUTLET 115v. ON-OFF HUMIDIFIER (HOT) 60CY. SWITCH 120v. OUTLET FURNACE 115v. FIELD SUPPLIED HUMIDISTAT (HOT) CONTROL BOARD RELAY 24V COIL, N.O. 60CY. YELLOW WIRES 24V. FROM HUMIDIFIER 60CY.
-
Page 7: Final Steps Of Installation
Model 1000 Humidifier Installation Manual Final Steps Of Installation 7. Replace evaporator pad assembly and humidifier cover. CAUTION: To prevent possible injury, ensure cover is fully seated before continuing to next step. Insert low voltage six connector wiring harness from cover into chassis solenoid harness. -
Page 8: Maintenance
Model 1000 Humidifier Installation Manual Maintenance Your humidifier is engineered to give helpful and trouble-free humidification. For maximum efficiency the following cleaning procedures should be carried out at the end of each heating season: 1. Turn off the water supply and electrical power to the humidifier. -
Page 9: Humidifier Chassis Cut Out
Model 1000 Humidifier Installation Manual Humidifier Chassis Cut Out 16-1/2” 14-1/8” 16-3/4” 17” 12-1/8” Humidifier Chassis with plenum cut out shown as dashed lines Inside Your Box Model 1000A (GFI#5730) includes: Humidifier components: GA19 Vapor pad, Solenoid Assembly Accessories: GFX3 Automatic Digital Humidistat, Code Valve, Saddle Valve... -
Page 10: Troubleshooting
Model 1000 Humidifier Installation Manual Troubleshooting 1. My humidifier will not operate. Check for the following: • Set thermostat to operate both furnace burner and blower. Operation may be necessary for system power. • Humidity level in home may be higher than humidistat setting. Increase humidity setting on humidistat. - Page 11 5. Dry air can cause harm to expensive musical instruments like pianos and violins. 6. Dry air causes gaps in window & door frames, letting cold outdoor air in; causing you to turn up the heat and increasing your heating bills! Controlled humidity from the GeneralAire Humidifier allows you the ®...
-
Page 12: Limited Warranty
What is Covered • Ten Years: The 1000 Humidifier is warranted by General Filters, Inc. (“Company”) for a period of ten (10) years from the date of the original installation, when installed in residential applications only (“Limited Warranty Period”). •... - Page 13 SÉRIE 1000 HUMIDIFICATEUR À QualitØ de l air frais intØrieur INSTALLATEUR : VEUILLEZ REMPLIR ET POSTER LA CARTE DE GARANTIE UNE ALIMENTATION CONTINUE FOIS L’INSTALLATION TERMINÉE. LAISSER LES DIRECTIVES POUR UNE INSTALLATION SUR LA D’INSTALLATION AU PROPRIÉTAIRE DE LA MAISON.
- Page 14 HUMIDISTAT ÉLECTRONIQUE GFX3 HUMIDISTAT MANUEL MHX3 DÉTECTEUR DE TEMPÉRATURE EXTÉRIEURE (NON UTILISÉ EN MODE MANUEL) FILS DE COMMANDE DE L’HUMIDIFICATEUR (FILS JAUNES) SORTIE DE 24 V DE L’HUMIDIFICATEUR (FILS ROUGES) OU PLAQUE DE MONTAGE SUR CONDUIT STANDARD AUX PLAQUE DE MONTAGE 727-58 TRANSFORMATEUR DE 24 V AVEC ALIMENTATION CONSTANTE É.-U., ACCESSOIRE EN OPTION MURAL STANDARD AU...
- Page 15 900-10 BUSE GA19 TAMPON D’ÉVAPORATION 900-15 GOULOTTE DU DISTRIBUTEUR GA4247 PALE DE VENTILATEUR GA4237 MOTEUR 900-71 PLAQUE SIGNALÉTIQUE 1000-11 FAISCEAU - CARTE DE CIRCUITS IMPRIMÉS 900-14 BAC DE RÉCUPÉRATION GA4238 ENSEMBLE DU RELAIS 1137-31 CORDON D’ALIMENTATION GA4231 ORIFICE - JAUNE P-190 MANCHON DE COMPRESSION (PLASTIQUE)/P102 MANCHON DE COMPRESSION (LAITON) P-101 ÉCROU À...
- Page 16 CARACTÉRISTIQUES DE L’HUMIDIFICATEUR ELITE 1000 Performance d’humidité prévue selon la superficie en mètres carrés/pieds carrés et le type de construction Moyen (0,50 CAH) Élevé (0,30 CAH) Nº de modèle Faible (0,75 CAH) Elite 570 111 m /1200 pi 186 m...
