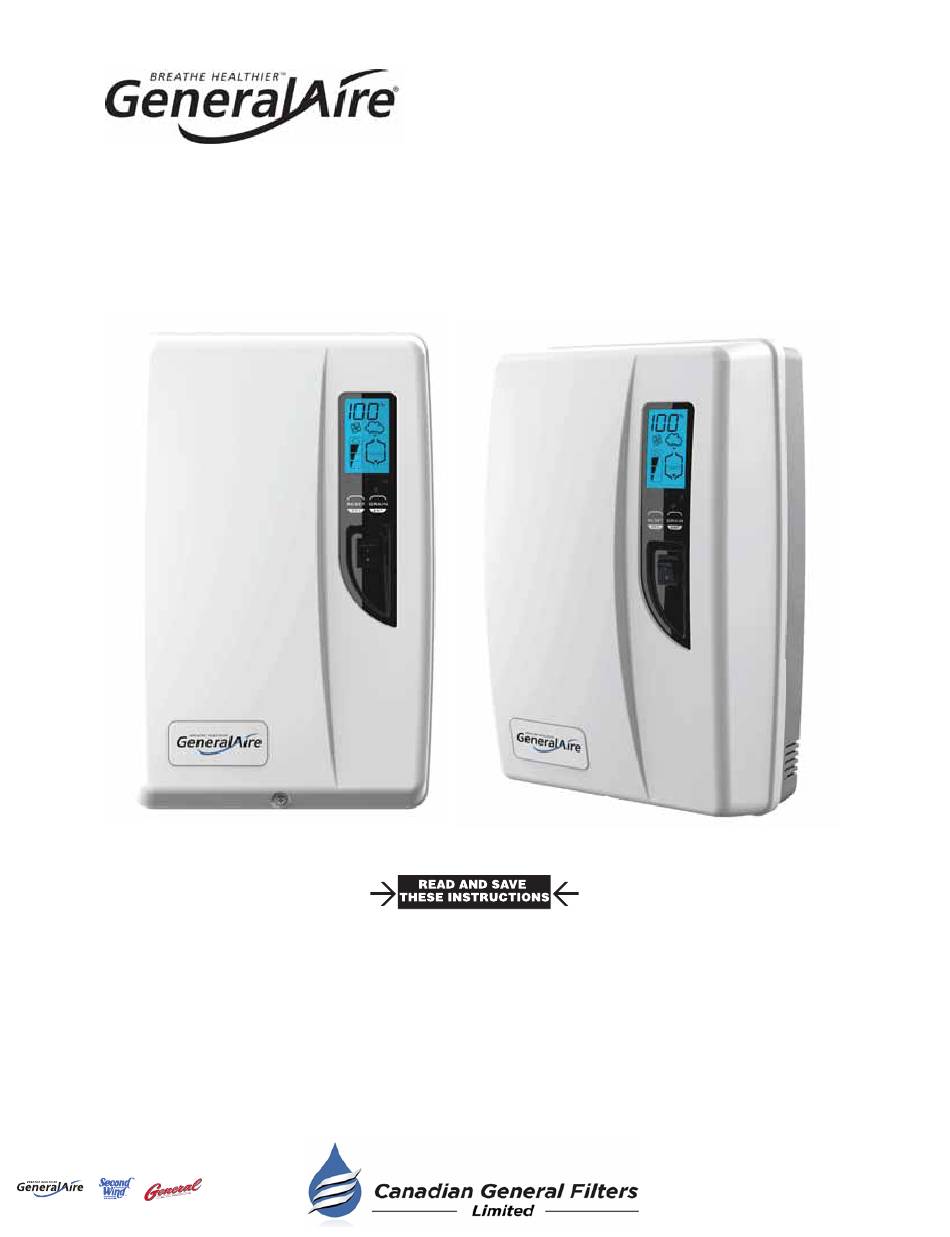

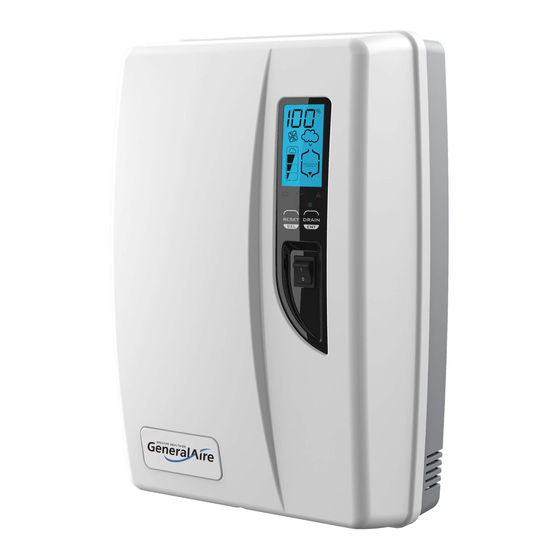

GeneralAire® GF-5500 Steam Humidifi er
Installation & User Manual
Installation Kit and Mounting Straps are included.
Before installing or handling the humidifi er, please carefully read and follow the instructions and safety
standards described within this manual and on the labels attached to the GF- 5500 Steam Humidifi er.
Test water conductivity before installing the GF-5500 Steam Humidifi er.
Our Brands
®
Last Updated: 05-2021
Form No. 5500-32 Rev B
Code: +0700092EN REV 2.0 22042021
400 Midwest Rd.
Toronto, ON M1P 3A9
Canada
Toll Free: (888) 216-9184
www.generalaireiaq.ca
sales@GeneralAireIAQ.ca
Advertisement
Table of Contents
Related Manuals for GeneralAire GF-5500
Summary of Contents for GeneralAire GF-5500
- Page 1 Before installing or handling the humidifi er, please carefully read and follow the instructions and safety standards described within this manual and on the labels attached to the GF- 5500 Steam Humidifi er. Test water conductivity before installing the GF-5500 Steam Humidifi er. Form No. 5500-32 Rev B Code: +0700092EN REV 2.0 22042021...
- Page 2 NTERNAL SWITCH: THE FACTORY DEFAULT SETTING IS 230 VAC; however, the humidifi er can also be powe- red at a nominal voltage of 115 VAC 50/60 Hertz. Ensure the GF-5500’s internal power selection switch matches the power supplied to the GF-5500 (also described in this manual).
- Page 3 WARNINGS PLEASE NOTE: This product is to be installed only in a residential setting. The conditions of the environment and the power supply voltage must comply with the specifi ed values listed on the data label in the humidifi er. The humidifi er must be installed in accordance with all local and national standards.
-
Page 4: Table Of Contents
Contents 1. HOW IT WORKS Operating Stages ......................11 Cylinder Life ......................... 13 Calculating Humidity Load..................14 2. MODEL INFORMATION 3. INSTALLATION Positioning ..........................16 Mounting / Dimensions and Weight ..............16 Fastening to the Wall...................... 17 Characteristics of the Supply Water ..............18 Water Connections ...................... - Page 5 5. OPERATING THE HUMIDIFIER Displaying Information ....................34 Selecting Signal Type ..................... 34 Changing the Maximum Production ..............35 GF-X4 Humidistat ....................... 35 Alarms ............................. 37 6. TROUBLESHOOTING 7. MAINTENANCE Periodic Checks ......................... 39 Cylinder Maintenance ....................39 Maintenance of Other Plumbing Components ........... 41 Replacement Parts......................
-
Page 6: How It Works
Fig. 1.a OPERATING STAGES • As the water fi lls the cylinder, it will reach the On a call for humidity, the GF-5500 Steam Humidifi er electrodes ❻ and electrical current will begin to (See Figure 1.a.) controller will: fl ow. As the water continues to fi ll the cylinder, •... - Page 7 A strainer in the cylinder helps to prevent mineral debris from jamming the drain pump. If the GF-5500 Steam Humidifier remains powered but idle (i.e. without producing steam) for more than 72 hours (3 days), the cylinder will automatically be emptied of water and will not refill until the unit is restarted.
-
Page 8: Cylinder Life
CYLINDER LIFE Water Filtration Typically, additional fi ltration of the incoming water Basics of the Steam Cylinder supply is not necessary. If mineral content is known The steam cylinder is the engine of the humidifi er. As to reduce cylinder life excessively or if cylinder life the water is evaporated inside the cylinder, minerals proves insuffi cient, then water fi ltration can be are left behind. -
Page 9: Calculating Humidity Load
Humidifi ca-tion Gallons per Day load, however, in an unfi nished structure may be fi ve to eight times higher than when fi nished. GF-5500 Pounds of Moisture / Hour / Cubic Foot* Steam humidifi ers may be operated while... -
Page 10: Model Information
Fig. 2.a Fig. 2.c GFI # CGF# DESCRIPTION PARTS INCLUDED GF-5500 steam unit features: 5580 GF-5500 Includes humidifi er and duct steam • 115V – 230V dual voltage mounting kit components: 6 ft. steam • 125 – 1250 μS/cm water conductivity hose, 8 inch steam manifold, GF-X4 •... -
Page 11: Installation
3. INSTALLATION POSITIONING MOUNTING / DIMENSIONS AND WEIGHT The GF-5500 Steam Humidifier has been designed Removing the Front Cover for wall mounting and since it is an electrode steam humidifier, should be placed close to The front cover is fastened by two tabs at the top... -
Page 12: Fastening To The Wall
FASTENING TO THE WALL The 5500 Steam Humidifi er can be installed on a fi nished wall or exposed studs per the following options: • Option 1: Attach directly to a wall using the supplied screws and anchors. Use the two inner holes of the supplied mounting strap as a template for the humidifi er mounting holes (marked by “A”... -
Page 13: Characteristics Of The Supply Water
CHARACTERISTICS OF THE SUPPLY WATER The humidifi er must be supplied with water with the following characteristics: • Incoming Pressure: Between 20psi and 90psi or 0.1 and 0.8 MPa (1 - 6 bar) • Maximum intermittent pressure: 110psi (8 bar). Maximum intermittent pressure includes water hammer or other supply water pressure spikes. -
Page 14: Water Connections
Figure 3.d.). Water Drain and Drain Hose The GF-5500 Steam Humidifi er requires a connection to a drain. A 10’ length of ¾” ID drain hose is included with unit. Attach the drain hose to the water drain fi tting and secure with the hose clamp provided. -
Page 15: Steam Distribution & Installation
Turbulent air fl ow may require Height >8” longer lengths. 8” Steam Manifold (included) The GF-5500 Steam Humidifi er comes standard with an 8” steam manifold. An optional steam nozz- le and steam manifolds are available separately for 1/3 Height other installations. - Page 16 Steam Nozzle (optional) The optional steam nozzle (See Figure 3.h. and Table 3.d.) can be used for horizontal surface installations (i.e. the bottom of a horizontal duct) or vertical surface installations (See Figure 3.i.). A condensate hose is requi- red. To install the steam nozzle, cut a 2-1/2” round hole in the duct. Apply silicone sealant to the mounting plate and insert the nozzle through the hole and secure with sheet metal screws.
-
Page 17: Steam Manifold (12" & 17.5" Options Available)
STEAM MANIFOLD (12” & 17.5” OPTIONS AVAILABLE) For certain applications, a longer steam manifold may be required. Select an accessible location on the duct, allowing at least 36” of straight duct (no elbows or obstructions) after the point where the steam manifold will be installed and the clearances can be maintained as per the following drawings. -
Page 18: Steam Hoses
STEAM HOSES To avoid these problems, remember one simple fact when running the steam hose: steam naturally fl ows up hill and condensate naturally fl ows downhill. Run the steam hose or piping to avoid any kinks, sharp elbows, or low spots that could collect or restrict the fl ow of steam to the distributor manifold, or the fl ow of condensate back to the humidifi er. -
Page 19: Power Supply Voltage Selection
NOTE: To avoid unwanted interference, the 3.10 POWER SUPPLY VOLTAGE SELECTION power cables should be kept separate from any The humidifi er can be powered at either a nominal control wiring. voltage of 115 Vac 50/60 Hertz or a nominal volta- NOTE: Tolerance allowed on main voltage = ge of 230 Vac 50/60 Hz. -
Page 20: Control Wiring
Current (A) (single phase) (lbs/hr) (kg/h) Power Wires (A) or Breaker 115-230 VAC 9.9 @ 230V 4.5 @ 230V GF-5500 3.3 max. AWG12 50/60 Hz 4.9 @ 115V 2.1@115V Tab. 3.e 3.12 CONTROL WIRING • Figure 3.s: A combination of both... -
Page 21: Connect The Gfx4 Humidistat For On/Off Operation
south side of the house or in direct sunlight. Do Contact AB-AB: not route sensor wire near high voltage wires. • Closed: humidifi er enabled to produce steam 4. Connect the GF-X4 and steam humidifi er to the (production starts when humidistat closes). HVAC equipment as shown in Figure 3.s. -
Page 22: Pressure, Safety, And High Limit Switches (Field Supplied)
3.15 PRESSURE, SAFETY, AND HIGH LIMIT CONDITIONER RELAY INTERLOCK SWITCHES (FIELD SUPPLIED) Auxiliary DPDT safety relay: Use this method in the Recommended as an additional precaution. Remove following situations: the jumper between terminals AB-AB and connect 1. To prevent the air conditioner from running any simple high-limits air fl ow switch (suggest part when there is a call for humidity. -
Page 23: Wiring Connections
3.17 WIRING CONNECTIONS Terminals Functions Electrical Specifi cations L1-L2 Power supply and ground Power supply 115 VAC 1-phase 50-60Hz 1.86kW -GROUND connections or 230 VAC 1-phase 50-60Hz 4.05kW Programming port Connecting to programming port or supervisor Imposes an external NO contact; Rmax=300 Ohm; Vmax=33 Vdc; Imax=- AB-AB Remote enabling input 6mAdc;... -
Page 24: Wiring Diagram Of Controller
3.18 WIRING DIAGRAM OF CONTROLLER Always use AWG12 wires and dedicated 20A breaker for power supply connections to L1 / 2 in Figure 3.x. Fig. 3.x 400 Midwest Rd. Toronto, ON M1P 3A9 Our Brands Canada Toll Free: (888) 216-9184 ®... -
Page 25: Start Up
(See item #13 in fi gure 4.a.). The yellow power LED will be lit. The GF-5500 Steam Humidifi er is When installation is completed, fl ush the supply now ready to operate. -
Page 26: Controller Display
CONTROLLER DISPLAY The 5500 Steam Humidifi er Controller features a comprehensive information display that shows the operation of the system at a glance: Location Description Display is % of nominal capacity Maintenance alarm Display is amperage (default) Steam is being produced Cylinder fi lling Foaming Water presence inside the cylinder... -
Page 27: Initial Configuration
INITIAL CONFIGURATION Select Voltage • Before starting the unit, confi rm power supply voltage and circuit breaker. • Confi rm the voltage switch is on the correct voltage as described in Section 3. • Press the ON button (item 13), the unit switches on and the display show 03, with the ‘SET’ symbol fl ashing. •... -
Page 28: New Steam System Or Replacement Steam Cylinder
NEW STEAM SYSTEM OR REPLACEMENT STEAM CYLINDER When starting with a new cylinder, you should acti- vate the cylinder cleaning function as follows: 1. Switch the 5500 Steam Humidifi er off . 2. Press and hold both buttons, “RESET/SEL” and “DRAIN/ENTER”, and switch the 5500 Steam Humidifi er back on. -
Page 29: Operating The Humidifier
5. OPERATING THE HUMIDIFIER DISPLAYING INFORMATION The information shown on the display during the normal operation of the humidifi er is the instant current in amperes running between the electrodes. To display other information, press and hold the “RESET/SEL” button until the display shows the required information. -
Page 30: Changing The Maximum Production
Production and exit to the normal opera- 5. Press “RESET/SEL” to change signal type betwe- ting mode. en 0 and 1: 0 = On-Off humidistat such as the GeneralAire® GFX4 HUMIDISTAT “M” or “GFX” series humidistat. See GFX4 installation manual for complete 1 = external 0...10 Vdc modulating signal such... - Page 31 will have to be lowered when weather is colder or if condensation is suspected. SUGGESTED SETTING OUTDOOR TEMPERATURES -20˚F / -29˚C -10˚F / -23˚C 0˚F / -18˚C +10˚F / -12˚C +20˚F / -7˚C +30˚F / -1˚C Tab. 5.c NOTE: If the outdoor temperature sensor fails, fl ashes and the unit will default to MANUAL mode.
-
Page 32: Alarms
ALARMS In the event of an alarm, the red alarm LED will fl ash, the alarm relay will close, and the alarm code will fl ash in the display. Multiple alarms will fl ash in sequence, alternating with the main display. Pressing the “RESET/ SEL”... -
Page 33: Troubleshooting
6. TROUBLESHOOTING PROBLEM CAUSE SOLUTION Check the safety devices upstream from the humidifi er No electrical power and the presence of power ON/OFF switch of the humidi- Close the switch on the panel: position I The humidifi er fi er in position 0 (open) Check that connectors are properly inserted in terminal does not turn on Control connectors improperly connected... -
Page 34: Maintenance
7. MAINTENANCE PERIODIC CHECKS CYLINDER MAINTENANCE • After one hour of operation: Check that there are The life of the cylinder depends on a number of no signifi cant water leaks. factors, as previously described. As previously • Every fi fteen days: Check operation for water leaks mention in this manual, maximum production can and the general condition of the cylinder. - Page 35 Replacing the Cylinder IMPORTANT WARNING: the cylinder may be Red O-Ring hot. Allow it to cool before touching it and/or use protective gloves. DO NOT attempt to clean the cylinder or its components. Damage may result that will Fig. 7.b aff ect operation and void the warranty.
-
Page 36: Maintenance Of Other Plumbing Components
MAINTENANCE OF OTHER PLUMBING IMPORTANT WARNING: after having repla- COMPONENTS ced or checked the plumbing, check that components have been reconnected correct- ly with the proper seals. Re-start the humidi- IMPORTANT WARNINGS: fi er and perform several cleaning cycles (from 2 to 4. -
Page 37: Replacement Parts
• O-ring is included with replacement cylinder. Fig. 7.d Fig. 7.c ITEM USA GFI PART NO. CANADA CGF PART NO. DESCRIPTION 7746 GF-5500-02 5500-02 REPLACEMENT STEAM CYLINDER 7747 GF-5500-03 5500-03 CONTROL MODULE ASSEMBLY 115V/230V 7551 GF-35-18 35-18 ON/OFF SWITCH 7753 GF-5500-08 5500-08 FILL &... -
Page 38: Technical Specifications
8. TECHNICAL SPECIFICATIONS SPECIFICATION DESCRIPTION NOTES 4.9 lbs/hr (2.2 kg/h) / 115 VAC 1-phase 50-60 Hz / 1.86 kW Capacity / VAC / kW 9.9 lbs/hr (4.5 kg/h) / 230 VAC 1-phase 50-60 Hz / 4.05 kW Steam pressure 3.81 in WC / 950 Pa (.137 PSI) Dimensions (inches / mm) 21”... - Page 39 NOTES: 400 Midwest Rd. Toronto, ON M1P 3A9 Our Brands Canada Toll Free: (888) 216-9184 ® www.generalaireiaq.ca sales@GeneralAireIAQ.ca Last Updated: 05-2021...
