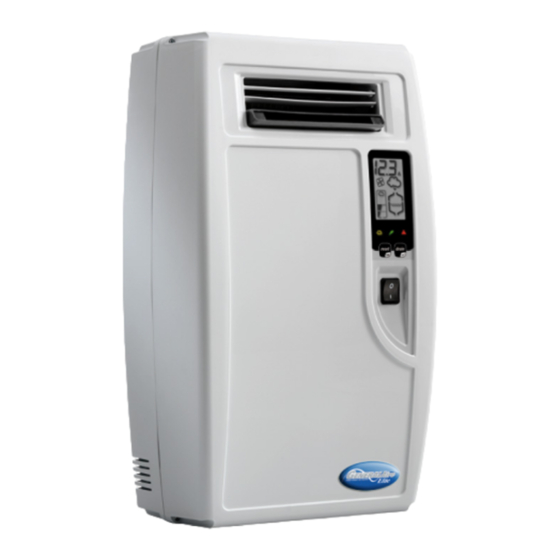

GeneralAire Elite Steam User Manual
Residential steam humidifiers
Hide thumbs
Also See for Elite Steam:
- User manual (28 pages) ,
- Installation, operating and maintenance manual (24 pages) ,
- User manual (28 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for GeneralAire Elite Steam
Summary of Contents for GeneralAire Elite Steam
-

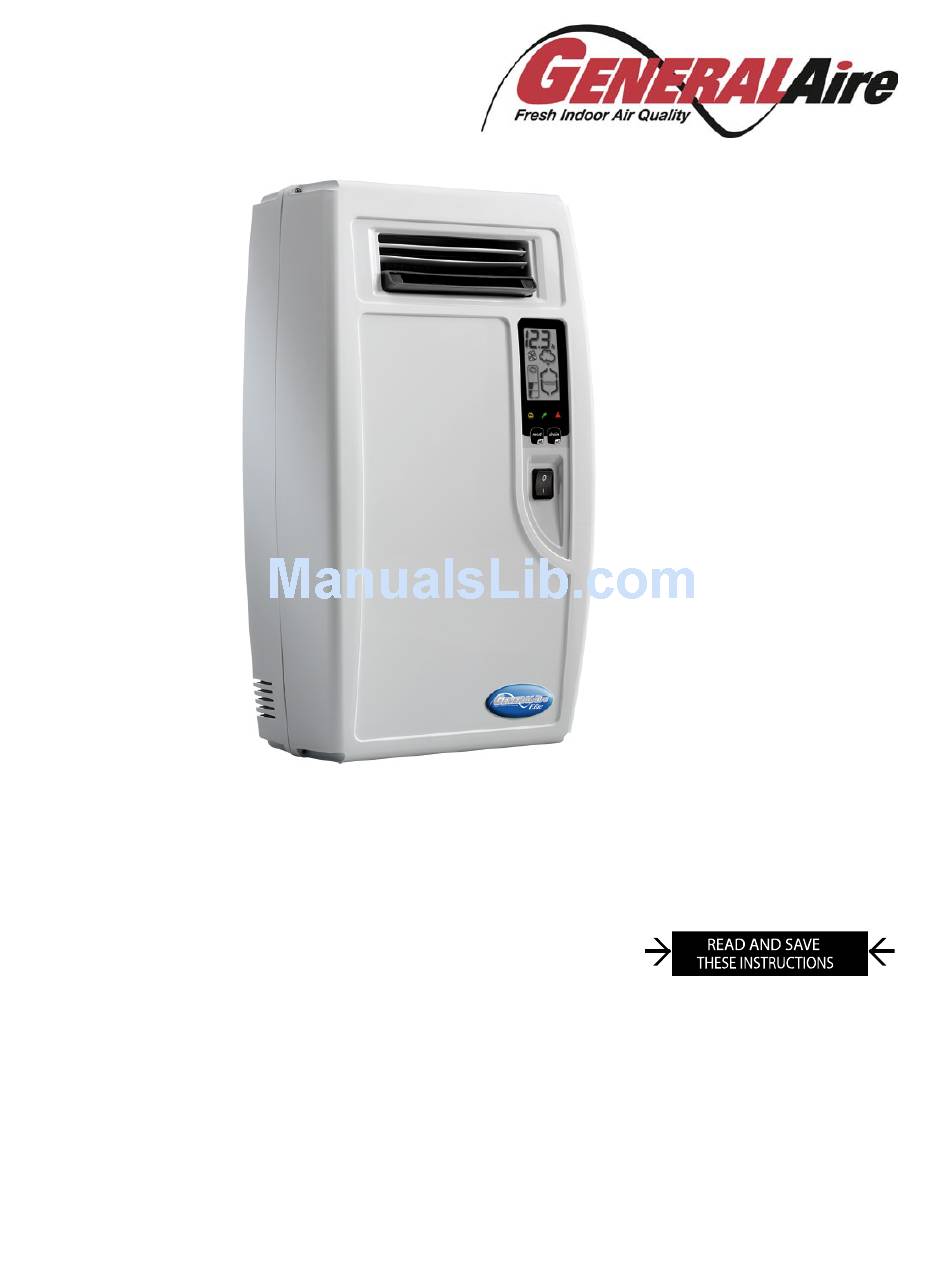

Page 1: User Manual
Elite Steam Residential Steam Humidifiers User manual Revision 3.0... - Page 2 Warning If present, remove the following items: LATCH THE CYLINDER CLAMP REMOVE BEFORE INSTALLING REMOVE BEFORE INSTALLING REMOVE BEFORE INSTALLING REMOVE BEFORE INSTALLING REMOVE BEFORE INSTALLING...
-
Page 3: Important Warnings
The quality of the water used affects the operation of this unit, so the Elite Steam may be supplied with untreated water, as long as this is drinkable and not softened or demineralized. The water converted into steam is automatically replaced through an electric fill valve. - Page 4 Elite Steam +030222075 Rev. 3.0...
-
Page 5: Table Of Contents
CONTENTS 1. How The Elite Steam Works 1.1 Basic Operation 1.2 Cylinder Life 1.3 Calculating Humidity Load 2. Models 3. INSTALLATION 3.1 Positioning 3.2 Mounting 3.3 Plumbing 3.4 Steam distribution 3.5 Power wiring 3.6 Control wiring 3.7 Wiring Connections: 4. START-UP 4.1 Startup Checklist... -
Page 6: How The Elite Steam Works
A strainer (12) in the cylinder helps to prevent mineral debris from jamming the drain pump (11). In case Elite Steam remains powered but idle, i.e. without producing steam, for more than 72 hours (3 days), the cylinder will be emptied to not have stagnant water inside. -
Page 7: Cylinder Life
Humidification load, however, in an unfinished structure may be five to eight times higher than when finished. Elite Steam humidifiers may be operated while construction is underway but, reduced cylinder life is to be expected and budgeted for. Good practice dictates that the steam cylinders also be replaced once the project is complete. -
Page 8: Models
Remote mount blower 12 ft. steam hose, E2 humidistat, code valve, condensate (not shown) kit for DS 25 hose, water fill connector, water supply tubing, and thru-the wall sleeve with 240v blower and grille pkg. Elite Steam +030222075 Rev. 3.0... -
Page 9: Installation
Duct Steam Injection Positioning The Elite Steam has been designed for wall mounting and, since it is an atmospheric steam humidifier, should be placed close to the point where the steam will be used, to minimize the steam hose length (and the amount of condensate). Certain clearances must be maintained around the unit for safety and maintenance. - Page 10 3.2.2 Fastening to the wall Drill the wall according to the drilling template supplied; then secure Elite Steam firmly to the wall by the screws and anchors supplied. Fig. 3.f Elite Steam +030222075 Rev. 3.0...
-
Page 11: Plumbing
3/4” G connection. Note that there is a strainer built into the fill valve fitting underneath the unit, which will require periodic cleaning, so be sure to allow clearance for access. Fill valve and filter Fig. 3.h Water drain Elite Steam +030222075 Rev. 3.0... -
Page 12: Steam Distribution
3.3.3 Water Drain The Elite Steam also requires a connection to a drain. The drain line may be routed out the back or bottom of the unit using the included angle fitting. The drain line can be 1-1/4” PVC, CPVC or polypropylene. The drain line is not glued or otherwise attached to the humidifier so it must be supported by itself. - Page 13 Support the hose adequately to avoid sags. The following diagrams are to provide you with some guidelines. If you have a situation you are unsure of, please contact the factory for instructions. Elite Steam +030222075 Rev. 3.0...
- Page 14 For further details on the assembly, the electrical connections and the use of a Remote Mount Blower, please refer to the specific instruction manual. Millimeters Inch ≥20% 150 mm 6” 1800 mm 72” 600 mm 24” 2100 mm 84” Tab. 3.g Fig. 3.n Elite Steam +030222075 Rev. 3.0...
-
Page 15: Power Wiring
AWG10 Control wiring Elite Steam allows connection of any simple or automatic humidistat, and safety devices such as high-limit humidistat, air flow proving switch, and remote on/off. The humidifier is operated by the closing of a mechanical humidistat H, or by the closing of a voltage-free remote contact, or alternatively by a combination of both. - Page 16 O terminals, using the terminal GND and 24V on the Elite Steam. Note MODULATING Fig. 3.w OPERATION requires a change in signal type. See SEC. 5.1.1 page 19. Connect an external signal to the ADCD using the terminal IN from the Elite Steam and AOUT in ADCD. See the diagram below.
-
Page 17: Wiring Connections
DISCONNECT TO BE INSTALLED (NOT SUPPLIED) RESPECT LOCAL CODES KEY FOR PROGRAMMING PORT = FILL VALVE = DRAIN PUMP POWER SUPPLY = DRAIN TEMPERING VALVE (110VAC 1-PHASE 50-60 HZ = HIGH-LEVELSENSOR 230 VAC 1-PHASE 50-60HZ) Fig. 3.z.1 Elite Steam +030222075 Rev. 3.0... -
Page 18: Start-Up
Condensate hoses are run correctly with no sags or kinks and sloped properly according to the manual. The Elite Steam Controller The Elite Steam controller features a comprehensive information display that shows the operation of the system at a glance: Display is % of nominal capacity... -
Page 19: Operating Elite Steam
5.1.1 Select Signal Type The Elite Steam is preset for the included E Series humidistat (signal type 0). If the included humidistat is used, this section may be omitted. If another humidistat is used, review this section to see if changes are needed. -
Page 20: Using The E2 Humidistat
Check drain pump and drain connection (current does not decrease within timeout) Cylinder exhausted The warning is automatically reset if Elite Steam can Change cylinder (urgent) (critical performance detected) produce the demand, otherwise turn off and then on. Foam detected Press “reset/sel”... -
Page 21: Trouble Shooting
4. Water conductivity is very high. 5. Check cylinder - replace if exhausted. If feed water 5. Water is foaming excessively. contains silica or nitrates, install a 1 micron water filter. Tab. 6.b Elite Steam +030222075 Rev. 3.0... -
Page 22: Maintenance
IMPORTANT WARNING: after having replaced or checked the plumbing, check that components have been reconnected correctly with the proper seals. Re-start the humidifier and perform a number of cleaning cycles (from 2 to 4, read chap. “Starting with a new cylinder”), then check for any water leaks. Elite Steam +030222075 Rev. 3.0... -
Page 23: Replacement Parts
25-5 DUCT TUBING KIT FOR DRAIN PUMP 7553 35-25 COVER HOLDING SCREWS FOR CH SERIES 7809 25-6 BOTTOM TANK FOR DRAIN PUMP 7810 25-8 DRAIN TANK + PLUG FOR DRAIN PUMP 25-50 WIRING KIT FOR UNIT WITH DRAIN PUMP 7811 Elite Steam +030222075 Rev. 3.0... -
Page 24: Technical Specifications
May be from back or bottom of unit. Drain water temp < 140°F drain tempering device (< 60°C) Drain flow Max 7.1 gpm (max 26.8 l/min) Embedded fan flow 71 cfm Direct Room Discharge Only (120 m³/hr) Serial communication RS485 Elite Steam +030222075 Rev. 3.0... -
Page 25: Limited Warranty
Magnuson-Moss Warranty Act. General Filters, Inc. Canadian General Filters, Inc. 43800 Grand River 400 Midwst Road Novi, MI 48375-1115 Scarborough, ON M1P 3A9 www.generalfilters.com www.cgfproducts.com Elite Steam +030222075 Rev. 3.0... - Page 26 NOTES _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________ _____________________________________________________________________________________________________________________...
-
Page 28: Elite Steam +030222075 Rev
GENERAL FILTERS, INC. Agency: 43800 GRAND RIVER AVE NOVI, MICHIGAN 43875-1115 WWW.GENERALAIRE.COM CANADIAN GENERAL FILTERS, LTD. 400 MIDWEST POAD SCARBOROUGH, ONTARIO M1P3A9 WWW.CGFPRODUCTS.COM Elite Steam +030222075 REV 3.0...
