Avoid Tip Over Hazard
Do not use the dishwasher
until it is completely
installed. When opening the door on an uninstalled
dishwasher,
carefully
open
the
door
while
supporting
the rear of the unit. Failure to follow
this warning
can result in serious
injury.

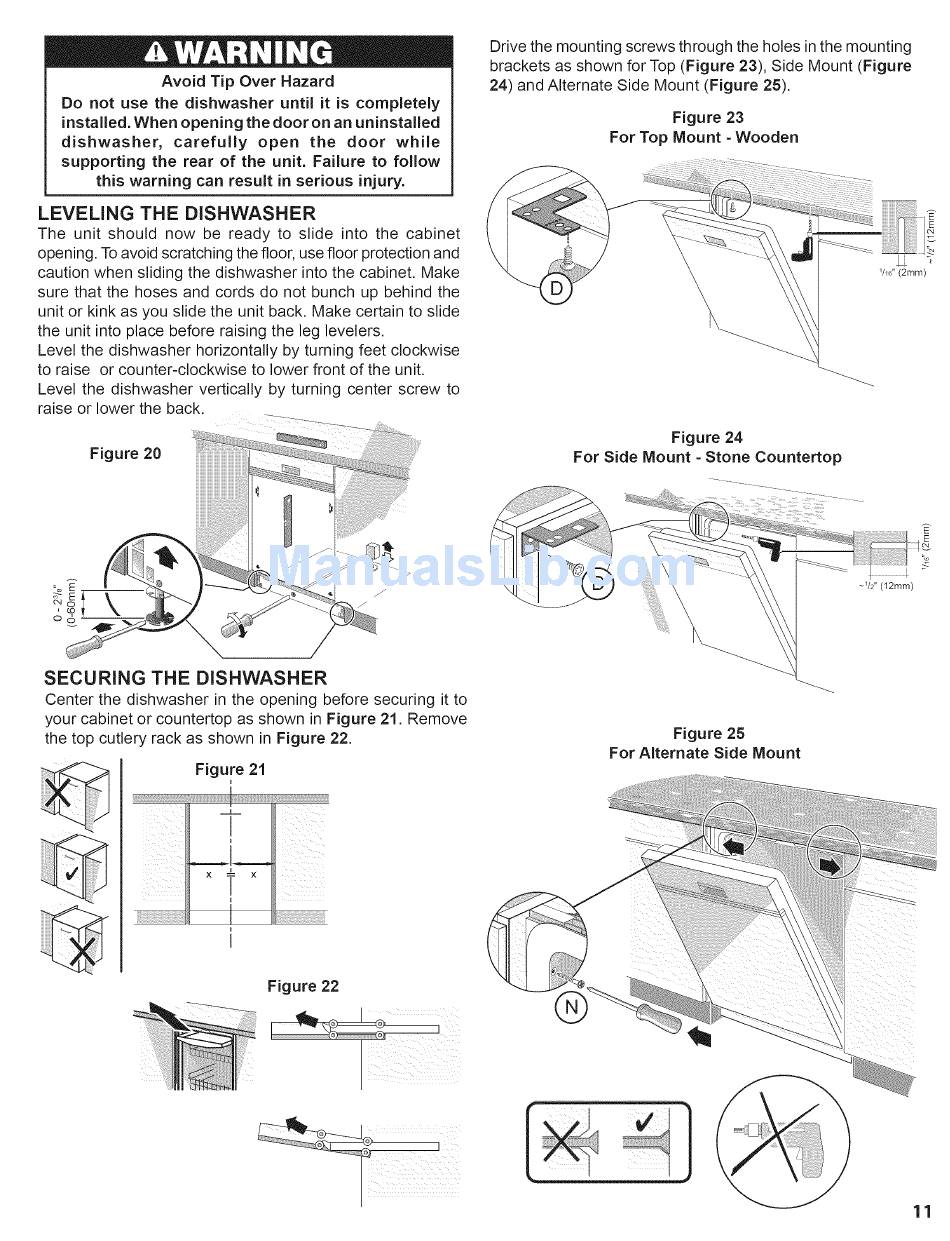

LEVELING
THE DISHWASHER
The unit should
now be ready to slide into the cabinet
opening. To avoid scratching the floor, use floor protection and
caution when sliding the dishwasher into the cabinet. Make
sure that the hoses and cords do not bunch up behind the
unit or kink as you slide the unit back. Make certain to slide
the unit into place before raising the leg levelers.
Level the dishwasher horizontally by turning feet clockwise
to raise or counter-clockwise
to lower front of the unit.
Level the dishwasher
vertically by turning center screw to
raise or lower the back.
Figure 20
Drive the mounting screws through the holes in the mounting
brackets as shown for Top (Figure 23), Side Mount (Figure
24) and Alternate Side Mount (Figure 25).
Figure 23
For Top Mount - Wooden
VE6"(2ram)
Figure 24
For Side Mount - Stone Countertop
SECURING
THE DISHWASHER
Center the dishwasher in the opening before securing it to
your cabinet or countertop as shown in Figure 21. Remove
the top cutlery rack as shown in Figure 22.
q
!i!i!i!{U
Figure 21
ii(ii!ii -----I----
X
t
X
I
I
i
Figure 22
Figure 25
For Alternate
Side Mount
~//2" (12mm)
11
