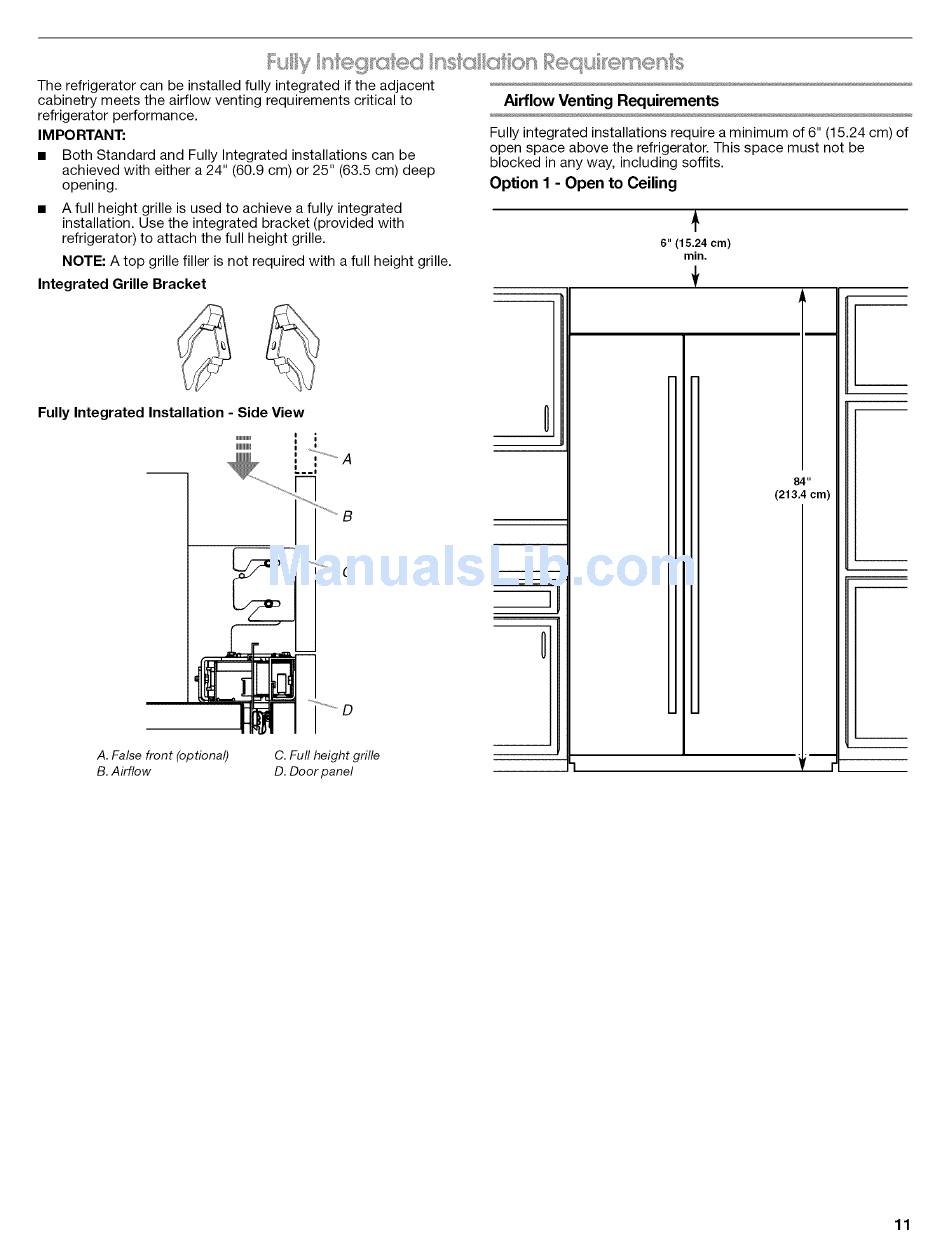

The refrigerator can be installed fully integrated if the adjacent
cabinetry meets the airflow venting requirements critical to
refrigerator performance.
IM PO RTAN T:
• Both Standard and Fully Integrated installations can be
achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep
opening.
• A full height grille is used to achieve a fully integrated
installation. Use the integrated bracket (provided with
refrigerator) to attach the full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket
Fully Integrated Installation - Side View
iiiiiiiiiiiiiiii1_ 0
o o
IIIIIIIIIIIIIIIIll 0
A. False front (optional)
B. Airflow
Airflow Venting Requirements
Fully integrated installations require a minimum of 6" (15.24 cm) of
open space above the refrigerator. This space must not be
blocked in any way, including soffits.
Option 1 - Open to Ceiling
0
6" (15.24 cm)
min.
84"
(213.4 cm)
.m
11
