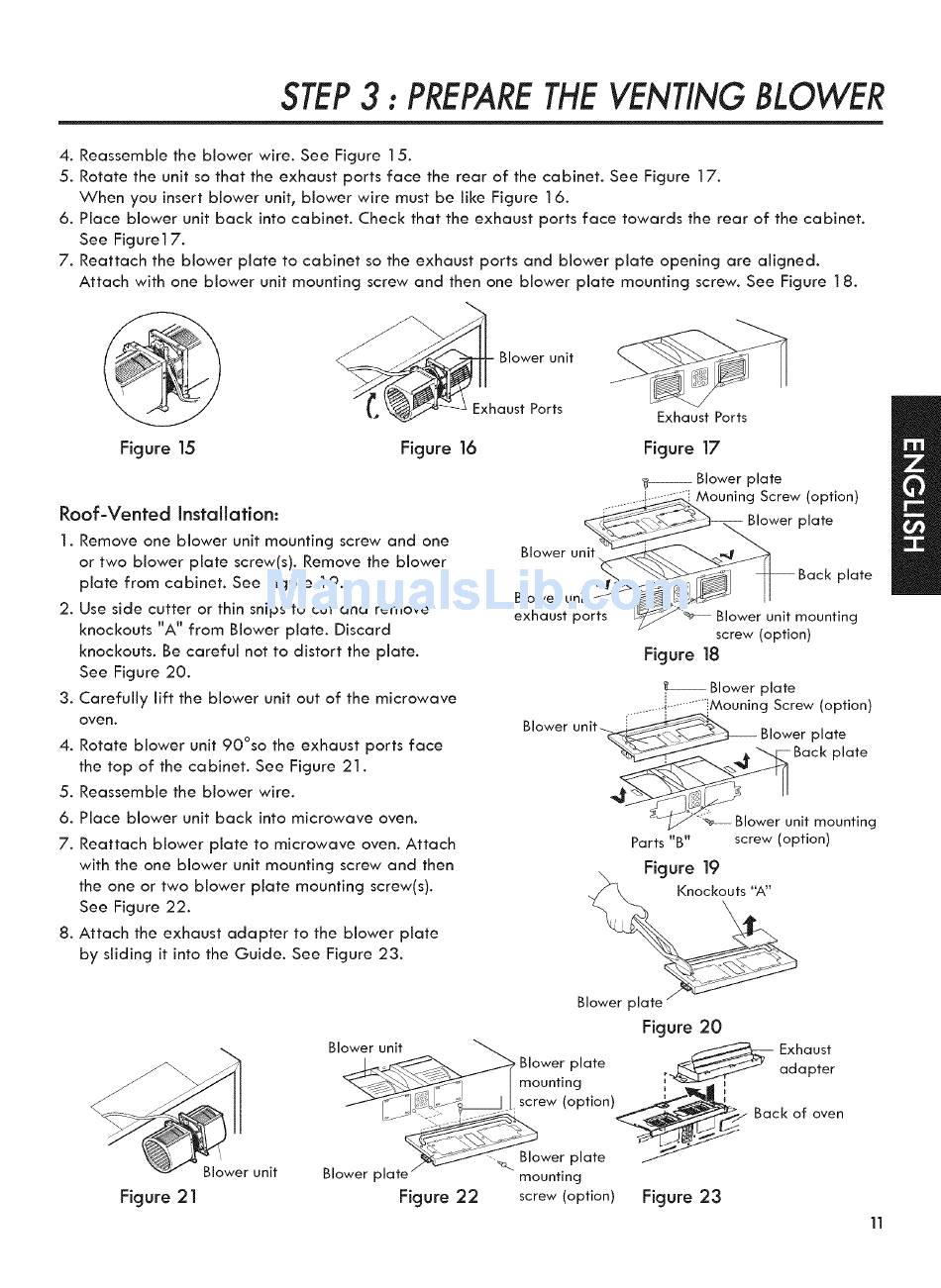

Kenmore 721.85062 Installation Instructions Manual page 11

STEP3 : PREPARE THEVENtiNG BLOWER
4. Reassemble the blower wire. See Figure 15.
5. Rotate the unit so that the exhaust ports face the rear of the cabinet. See Figure ] 7.
When you insert blower unit, blower wire must be like Figure 16.
6. Place blower unit back into cabinet. Check that the exhaust ports face towards the rear of the cabinet.
See Figure1 7.
7. Reattach the blower plate to cabinet so the exhaust ports and blower plate opening are aligned.
Attach with one blower unit mounting screw and then one blower plate mounting screw. See Figure 18.
@
Blower unit
Exhaust Ports
Exhaust Ports
Figure 15 Figure 16 Figure 17
Roof-Vented Installation:
1. Remove one blower unit mounting screw and one
or two blower plate screw(s). Remove the blower
plate from cabinet. See Figure 19.
2. Use side cutter or thin snips to cut and remove
knockouts "A" from Blower plate. Discard
knockouts. Be careful not to distort the plate.
See Figure 20.
3. Carefully lift the blower unit out of the microwave
oven.
4. Rotate blower unit 90°so the exhaust ports face
the top of the cabinet. See Figure 21.
5. Reassemble the blower wire.
6. Place blower unit back into microwave oven.
7. Reattach blower plate to microwave oven. Attach
with the one blower unit mounting screw and then
the one or two blower plate mounting screw(s).
See Figure 22.
8. Attach the exhaust adapter to the blower plate
by sliding it into the Guide. See Figure 23.
Blower unit
Blower unit
Figure 21
Blower plate
Figure 22
___ Blower plate
Blower unit __...__ wer
_x'___ I _Back plate
exhaust ports _-- glower unit mounting
screw (option)
Figure 18
_--, Blower plate
.......... i............. iMouning Screw (option)
Blower unit Blower plate
__Back plate
_'___4glower Ilunit mounting
Parts "B" screw (option)
Bi%Kn°ck _.__Figure 19 ....
Figure 20
_ Exhaust
Blower adapter
i i
screw (option) __ Back of oven
Blower plate __'_
mounting
screw (option) Figure 23
11
