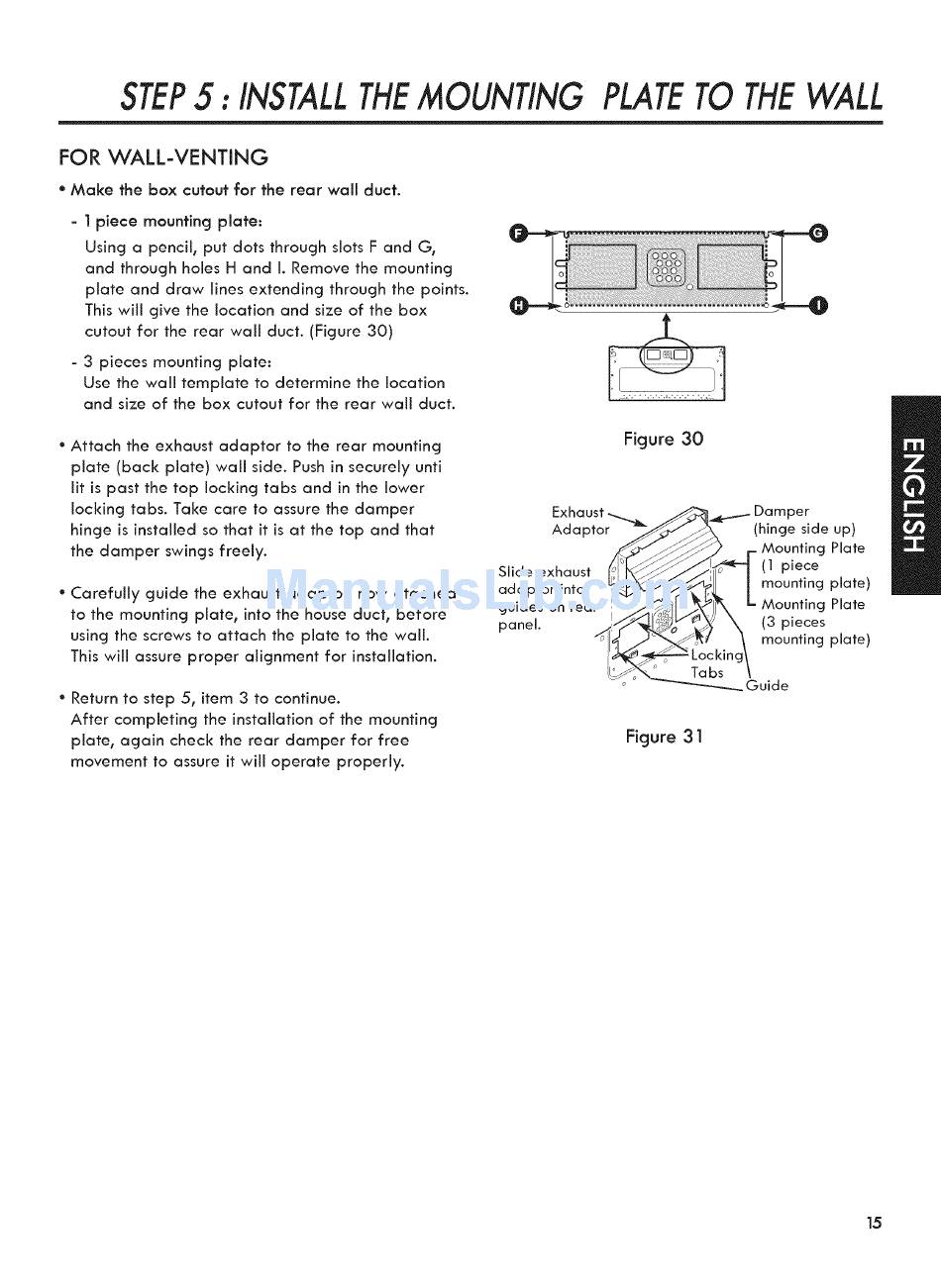

STEP 5 : INSTALL THE MOUNTING PLATE TO THEWALL
FOR WALL-VENTING
* Make the box cutout for the rear wall duct.
- 1 piece mounting plate:
Using a pencil, put dots through slots F and G,
and through holes H and [. Remove the mounting
plate and draw lines extending through the points.
This will give the location and size of the box
cutout for the rear wall duct. (Figure 30)
- 3 pieces mounting plate:
Use the wall template to determine the location
and size of the box cutout for the rear wall duct.
* Attach the exhaust adaptor to the rear mounting
plate (back plate) wall side. Push in securely unfi
lit is past the top locking tabs and in the lower
locking tabs. Take care to assure the damper
hinge is installed so that it is at the top and that
the damper swings freely.
* Carefully guide the exhaust adaptor, now atached
to the mounting plate, into the house duct, before
using the screws to attach the plate to the wall.
This will assure proper alignment for installation.
* Return to step 5, item 3 to continue.
After completing the installation of the mounting
plate, again check the rear damper for free
movement to assure it wiJJ operate properly.
Figure 30
Exhaust _ ._......._ Damper
Adaptor _J_ (hinge side up)
,_..¢__...2 - Mounting Plate
Slide exhaust __..._ _ (1 piece
adaptor nto _._'.._._ [ mounting plate)
guides on rear v_l j" _.._ k Mount,ng Plate
_ane !/_I_L_¢_/ \ (3 pieces
" .-S _+o
mounting plate)
__ Locking\
u,de
Figure 31
15
