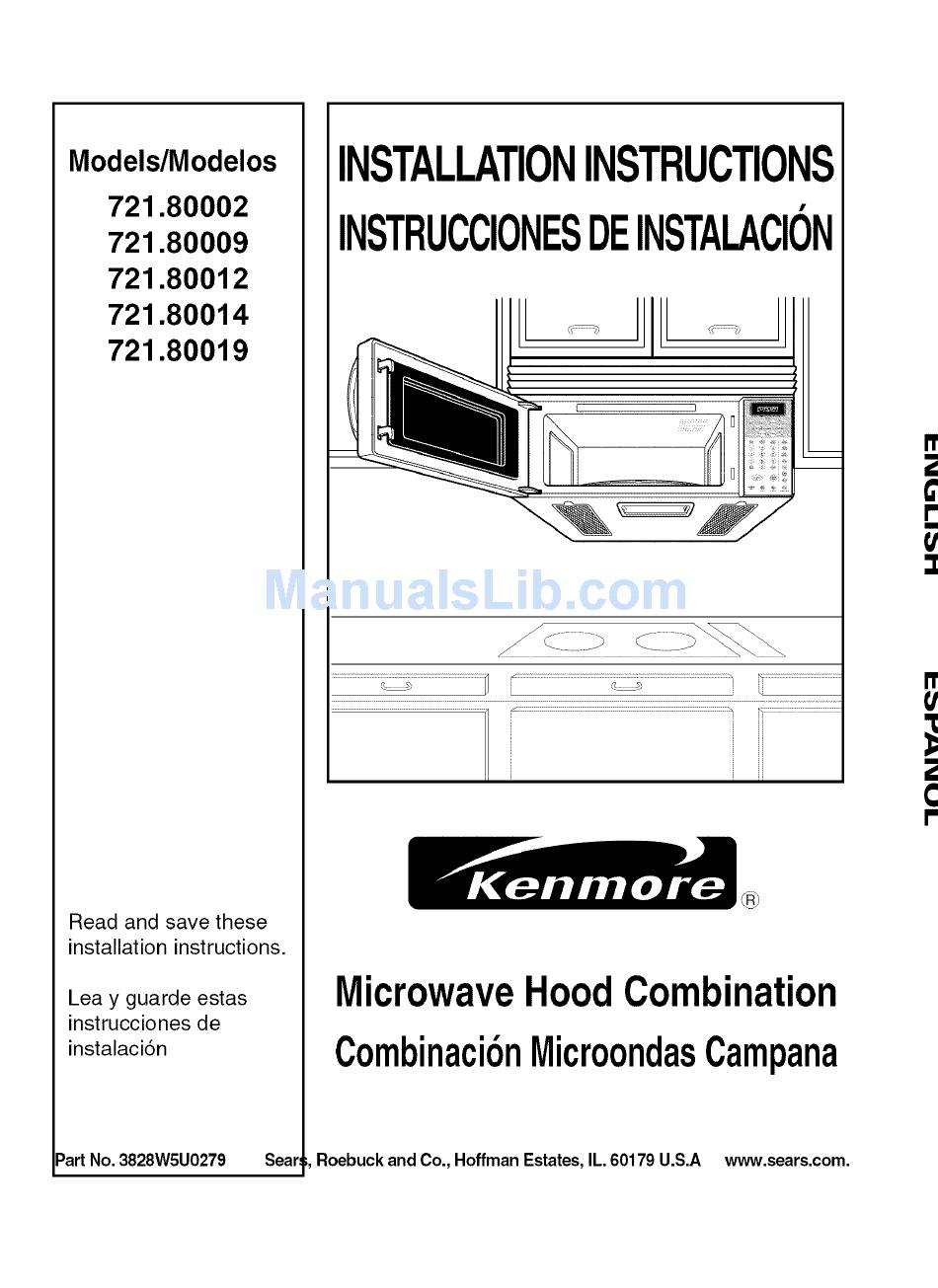

Models/Modelos
721.80002
721.80009
721.80012
721.80014
721.80019
Read and save these
installation
instructions.
Lea y guarde estas
instrucciones
de
instalaci6n
Part No. 3828W5U0279
Sear
INSTALLATION
INSTRUCTIONS
INSTRUCCIONES
DE INSTALACION
l
1
Microwave HoodCombination
Combinaci6n
Microondas
Campana
Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A
www.sears.com.
Advertisement
Table of Contents
Related Manuals for Kenmore 721.80002
Summary of Contents for Kenmore 721.80002
- Page 1 INSTALLATION INSTRUCTIONS Models/Modelos 721.80002 INSTRUCCIONES DE INSTALACION 721.80009 721.80012 721.80014 721.80019 Read and save these installation instructions. Microwave HoodCombination Lea y guarde estas instrucciones Combinaci6n Microondas Campana instalaci6n Part No. 3828W5U0279 Sear Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A...
-
Page 2: Your Safety First
YOUR SAFETY FIRST BEFORE YOU START • Proper installation is the installer's responsibility! - Read the entire manual before you begin. - The model number label is located on the oven front. See Figure 1. - Mounting plate is located on back side of microwave oven. See Figure 2. BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:... - Page 3 YOUR SAFETY FIRST • THIS APPLIANCE MUST BE GROUNDED! - If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
- Page 4 YOUR SAFETY FIRST • MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT. - Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath. - ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2"...
-
Page 5: Parts, Tools
PARTS, TOOLS, MATERIALS FOLLOWING PARTS SUPPLIED WITH THE OVEN: NOTE: Depending on your ventilation requirements, you may not use all of these parts, Damper/duct connector One power cord clamp One dark-colored mountinc screw (for roof vented or wall vented installation) Not Actual Size (to hold the power... -
Page 6: Parts, Tools, Materials
PARTS, TOOLS, MATERIALS YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION: Carton or other heavy material for covering the counter top. Stud finder or thin nail. Clear tape (for taping the templates to the wall) Saber saw (for cutting vent holes for roof Key hole saw (for the power cord hole) or wall venting) Phillips screwdriver (for the screws) - Page 7 STEP 1: PREPARE THE ELECTRICAL CONNECTIONS _k WARNING AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED! 1. Locate the grounded electric outlet for this oven in the cabinet above the oven, as shown in Figure 4 Detail. Upper NOTE: The outlet should be on a circuit dedicated to the microwave oven 120V, 60Hz., AC only, with a Cabinet 20ampere fused electrical supply.
-
Page 8: Step 2: Prepare The Venting System
STEP 2: PREPARE THE VENTING SYSTEM NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork fittings and length are shown in Figure 9, page 9. WARNING - FIRE HAZARD A I THIS OVEN MUST BE PROPERLY VENTED! You may vent your oven in one of three ways: Roof Venting... -
Page 9: Duct Length
STEP 2: PREPARE THE VENTING SYSTEM STANDARD FITTINGS NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension duct installed between the damper assembly and the adapter to prevent the exhaust damper sticking. DUCT LENGTH The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not exceed the equivalent... - Page 10 STEP PREPARE VENTING BLOWER Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to adjust the blower if you want wall vented or roof vented installation. WAR NING ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING DO NOT PULL OR STR ETCH...
-
Page 11: Step 3: Prepare The Venting Blower
STEP 3: PREPARE THE VENTING BLOWER WALL VENTED INSTALLATION: 1. Remove one blower unit mounting screw and plate blower unit two blower plate screws. Remove the blower plate from cabinet. See Figure 12. 7blower plate mounting screws 2. Carefully lift the blower unit out of the microwave oven. - Page 12 STEP 3: PREPARE THE VENTING BLOWER ROOF VENTED INSTALLATION: blower plate 1. Remove one blower unit mounting screw and mounting screws two blower plate screws. Remove the blower plate from cabinet. See Figure 18. 2. Carefully lift the blower unit out of the microwave oven.
-
Page 13: For Installation
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION MEASURE ANDTACK /TAPE UP THE TEMPLATE 1. Using a plumb line and (metal) measuring tape, find and mark the vertical center line (_)on the back wall, as in Figure 2. Find and mark one or two points where the studs are on the wall (Studs are normally... -
Page 14: Step 4: Prepare The Wall And Upper Cabinet For Installation
STEP 4: PREPARE THE WALL AND UPPER CABINET FOR INSTALLATION DRILL THE HOLES IN THE WALL AND UPPER CABINET. WARNING BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL. Electrical wires could be concealed behind the wall covering and if the drill hits them you could get an electric shock. - Page 15 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL THE OVEN MUST BE CONNECTED TO AT LEAST WALL STUD. 1, Draw a vertical line on the wa II at the center of the 30" wide space, 3/16Hole on S tuds Use the mounting plate as the template for the...
- Page 16 STEP 5: INSTALL THE MOUNTING PLATE TO THE WALL TO PREPARE REAR WALL CUTOUT OPENING EXHAUST ADAPTOR/MOUNTING PLATE WALL VENTING ROOF VENTING: NOTE: If room vented installation is used, skip this step. Using the Wall-template. This template will give the location and size of the box cutout for the rear wall...
-
Page 17: Step 6: A Ttach The Oven To The Wall
STEP 6: A TTACH THE OVEN TO THE WALL WARNING You will need two people to lift this microwave. Failure to use more than one person could result in power cord personal injury. 1. Carefully lift microwave oven and hang it on support tabs (See Figure 26) at the bottom of the mounting plate. - Page 18 STEP 6: ATTACH THE OVEN TO THE WALL Roof vented installation: See Figure 32. domp I_ Install ductwork through the vent opening in the upper cabinet. Complete the venting system through the roof according to the method needed. See "PREPARE THE VENTING SYSTEM," STEP 2 on the page 8.
- Page 19 MEMO...
