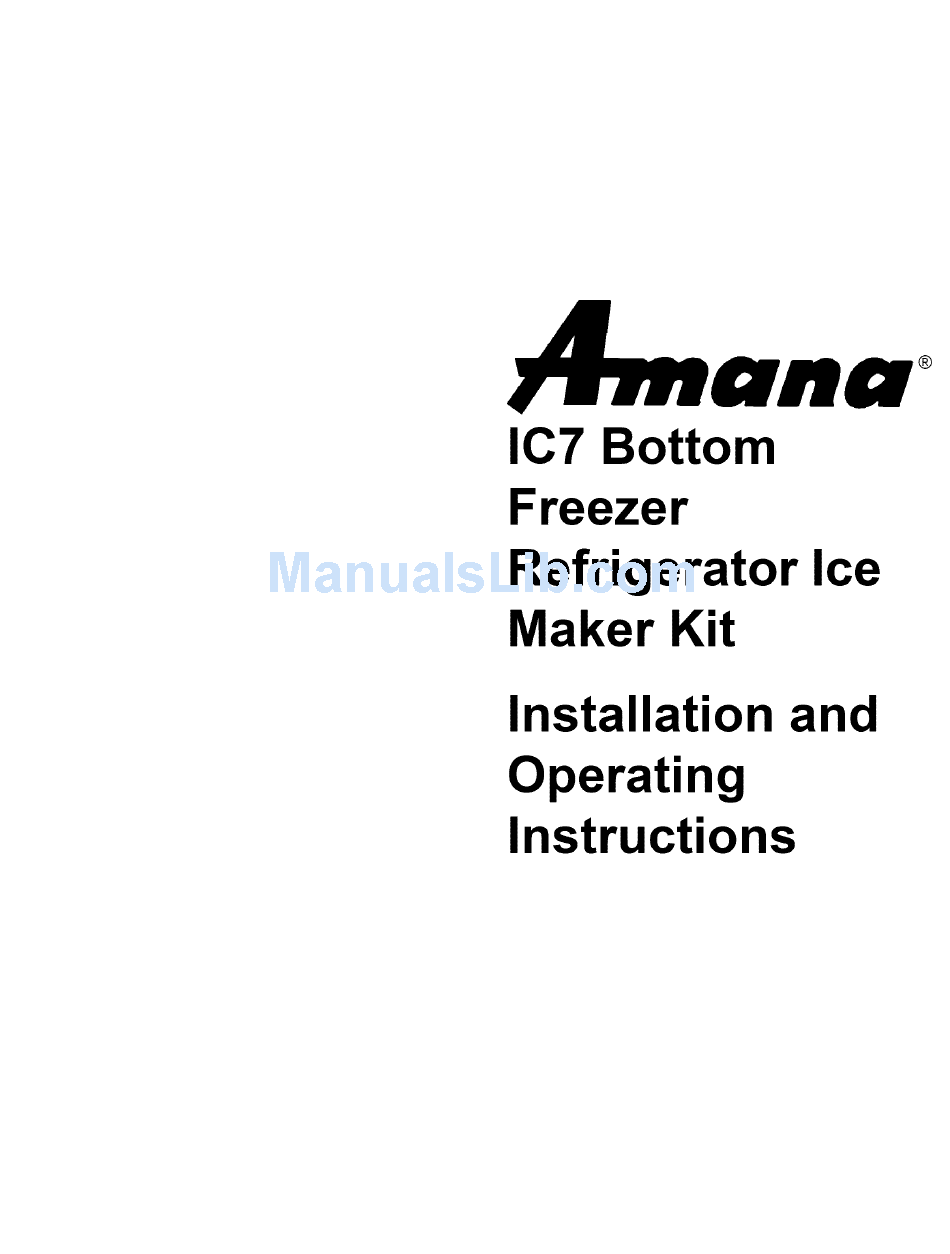

- Page 1 IC7 Bottom Freezer Refrigerator Ice Maker Kit Installation and Operating Instructions...
-
Page 3: Safety Instructions
Depending on installer's knowledge and skill, • Amana Refrigeration, Inc. recommends using a installation can take from 3 to 6 hours. saddle valve. Do not use self-piercing valve. Amana If unable to solve a problem during installation, Refrigeration, Inc. is not responsible for property contact an authorized Amana ®technician. - Page 4 Parts Use listed part numbers only when ordering replacement parts. Part numbers are not used in installation instructions. Item Description Part Number Quantity Ice maker D7824702 Ice maker cover 10519801 Warning label A3036901 Diagnostic label 10834701 Label 10549601 Ice maker arm 10884401 Lower mounting bracket B8391802...
- Page 6 Procedure 7. Connect wires to water valve. Place water valve on 1. Turn off water supply to refrigerator. mounting bracket. Insert screws into top 2 holes in Caution water valve cover plate and lower 2 holes in To avoid property damage, protect soft vinyl mounting bracket.
- Page 7 12.Remove iceservicerackby liftingrackoffplastic 17. Remove water tube inlet hole plug on rear of washers thenpulling out.Remove screws witha refrigerator cabinet with a screwdriver covered with 1/4"hexnutdriver. I nsertplugsintoscrewholes. masking tape. Washer Water tube inlet hole plug ......1/4" (6 mm) 18.
- Page 8 21. Slidestainless steelclipoverwallof icemaker watercup. Stainless steel clip 22. Remove 3 button plugs from left freezer wall with a knife covered with masking tape. Discard plugs. 23. Start 5/8" (15 mm) sheet metal screw in top front hole on left wall with a 1/4" hex nut driver. Leave head out approximately 3/8"...
-
Page 9: Before Calling For Service
Operating Instructions Before Calling For Service Confirm ice bucket is in place and ice maker arm is Give ice maker 1 overnight period to make ice before down. assuming a difficulty exists. If ice maker is not producing ice ..:...... -
Page 10: Warranty
Warranty Is Void If installation or usage. • Product is used on a commercial, rental or leased basis. In no event shall Amana Refrigeration, Inc. be • Product has defect or damage due to an liable for incidental or consequential... - Page 12 Part No. 10527010 _h1996 Amana Refrigeration, Inc. Printed in U.S.A. Amana, Iowa 52204 A Ra_/l'h_.NmCompany...
