OWC Mercury Elite Pro mini Assembly Manual & User Manual page 10

OWC Mercury Elite Pro mini Chapter 2 - Assembly & Installation Instructions
➆

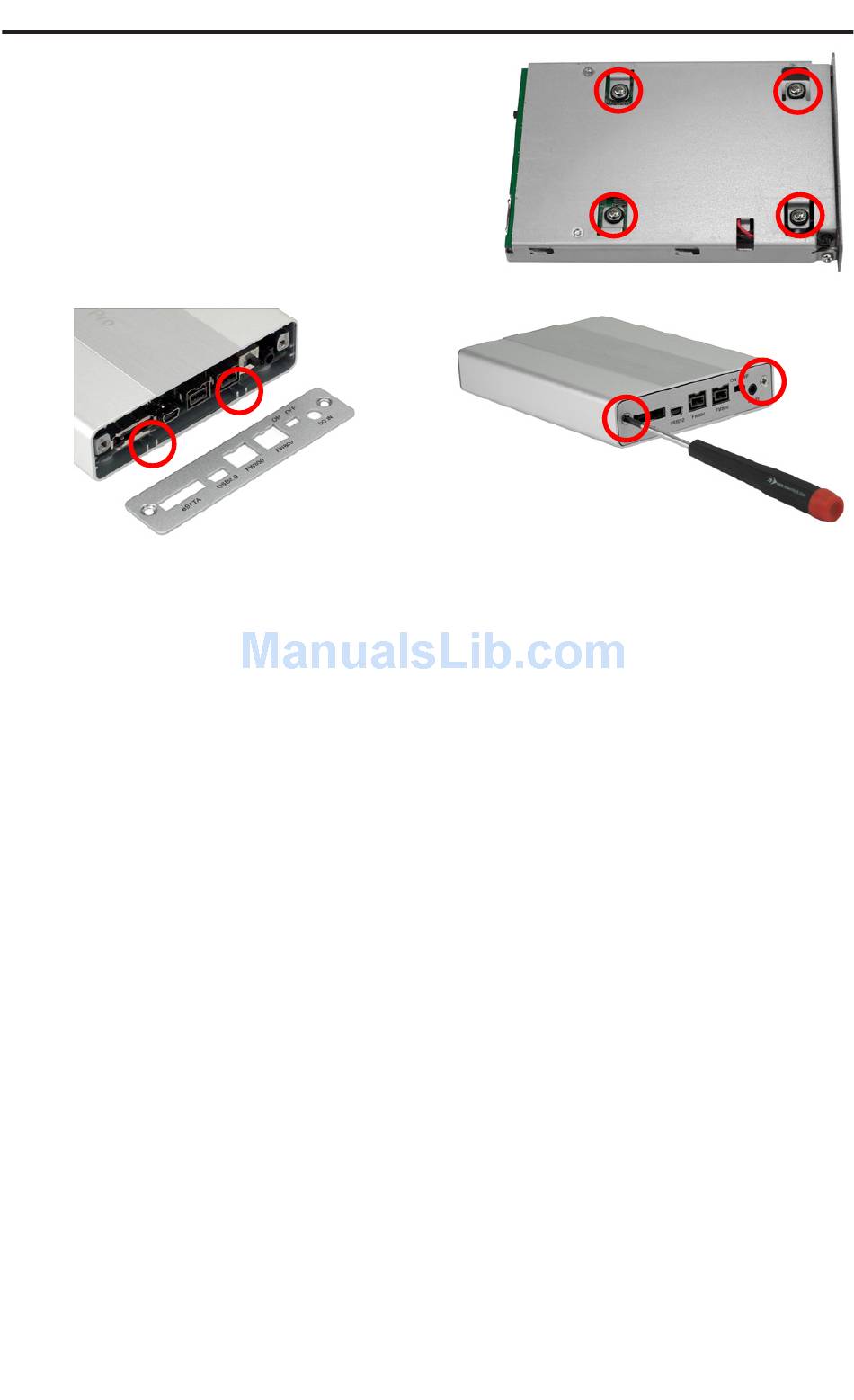

Using the Phillips P0 screwdriver and
the included screws from the plastic bag,
attach the drive mechanism to the enclo-
sure through the rubber grommets.
➇ ➈
Once you have installed the drive mechanism, take the outer enclosure and
look at the end of it. You will see on the bottom there are 2 metal channels;
on one side of the outer enclosure the metal channel extends all the way to
the edge of the outer enclosure, and the other side is inset to allow the rear
port cover to fit flush when attached.
Slide the inner chassis through the outer enclosure from the side that has
the metal channels flush with the edge. Place the rear port cover onto the
outer enclosure in the inset in the metal channel and attach it using the
Phillips P0 screwdriver and the 2 Phillips screws you removed to begin the
assembly process.
For information on how to connect your OWC Mercury Elite Pro mini
to your computer, please refer to section 1.3: Using your OWC Mercury
Elite Pro mini before proceeding.
