Hp X1800 And X3800 Front Panel Leds And Buttons; Hp X1800 And X3800 Rear Panel Components; Hp X1800 And X3800 Front Panel Led And Button Descriptions - HP X1000 System User's Manual

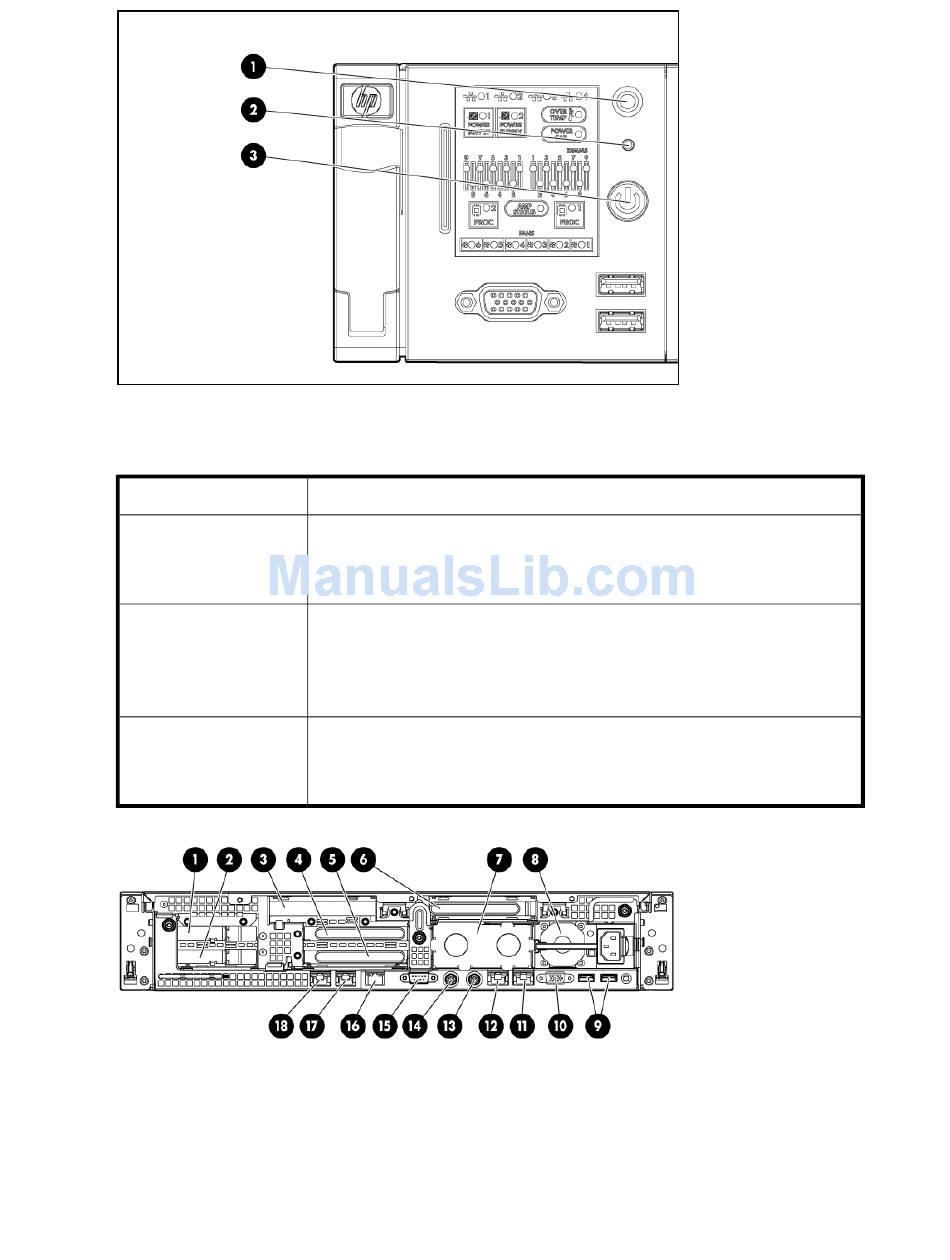

Figure 13 HP X1800 and X3800 front panel LEDs and buttons
.
Table 8 HP X1800 and X3800 front panel LED and button descriptions
Item / Description
1. UID LED and button
2. System health LED
3. Power On/Standby
button and system power
LED
Figure 14 HP X1800 and X3800 rear panel components
.
1. PCIe slot 5
Status
Blue = Activated
Flashing blue = System being remotely managed
Off = Deactivated
Green = Normal
Amber = System degraded
Red = System critical
To identify components in degraded or critical state, see
Green = System on
Amber = System in standby, but power is still applied
Off = Power cord not attached or power supply failure
HP X1000 and X3000 Network Storage System User Guide 33
