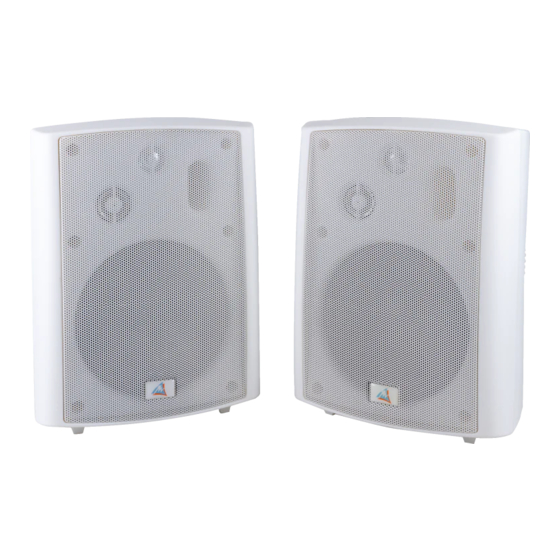

- Page 1 INSTALLATION AND OPERATION MANUAL AMPAV30 ACTIVE THREE WAY STEREO SPEAKER SYSTEM...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION Read these instructions. Lisez ces instructions. Keep these instructions. Tenez ces instructions. Heed all warnings. Notez tous les avertissements. Follow all instructions. Suivez toutes les avertissements. Do not use this apparatus near water. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.). Clean only with dry cloth. -
Page 3: Introduction And Contents
Volume controls as well as unbalanced stereo RCA and 3.5 mm SPECIFICATIONS TRS jack line inputs. The AMPAV30 features a 5.25” bass driver, 0.5” dynamic mid-range tweeter and a 1” piezo high frequency tweeter delivering a solid 2 x 15 watts RMS of clear, intelligible power. - Page 4 AMPAV30 FRONT PANEL – ACTIVE AND PASSIVE Grill Removed 5.25” BASS DRIVER 0.5” DYNAMIC TWEETER 1.0” PIEZO TWEETER BASS PORT PAGE 4 AMPAV30 INSTALLATION AND OPERATION MANUAL...
-
Page 5: Power On/Off
MP3 players, data projector audio and other portable audio devices. The integrated IEC and fuse holder socket is fitted with a 1 Amp slow NOTE: Only one AMPAV30 input should be used at any time to avoid blow fuse. Should the fuse require replacement, use a screw driver to compromising the performance of the speaker. -
Page 6: Mounting Brackets
Simply secure the bracket to the wall using suitable fittings but always ensure that they are fit for purpose. Once the bracket is secure, mount the speaker to the bracket and connect wiring. 156 mm 5 mm 80 mm PAGE 6 AMPAV30 INSTALLATION AND OPERATION MANUAL... -
Page 7: Specifications
Gross Weight per pair (box) 5.8 kg (12.7 lbs) Accessories (supplied) Passive Speaker Wall brackets (pair) Bracket fixing “dials” (pair) 1.65 M IEC mains cord 2.6 M Figure-8 speaker wire Installation & Operation Manual AMPAV30 INSTALLATION AND OPERATION MANUAL PAGE 7... - Page 8 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde Street, Silverwater, Sydney NSW 2128 Australia. Private Bag 149, Silverwater NSW 1811 ACN 007 573 417 Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au DISTRIBUTED IN AUSTRALIA AND NEW ZEALAND BY HILLS SVL www.hillssvl.com.au P: 02 9647 1411...
