AUSTRALIAN MONITOR XR12P Brochure

Features:

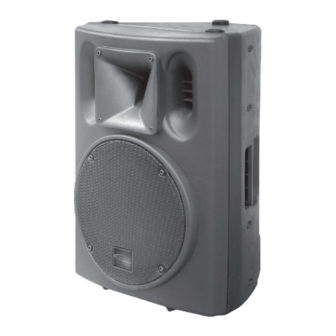

Two-way active speaker with one 12" woofer
and one 2" driver.
Cabinet is made from polypropylene and special
high-tech material. It's durable, anti-shock and
has good damping characters.
Voice coil in the 12" woofer is made from
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
Rotatable 50-100°x55° (HxV) dispersion horn makes
it suitable for any performance purposes.
Molded-in pole mount, easily suspended.
Vertical or horizontal layout, can be used as
a monitor or in any flying systems.
Arrayable vertically in 4 layers or horizontally
in more than 8 columns.
www.australianmonitor.com.au
Distributed by Audio Telex Communications Pty Ltd
EUROPE/ASIA/MIDDLE EAST
Phone: 61 2 9647 1411
Email: international@audiotelex.com.au
XR12P
POWERED SPEAKER SYSTEM
75mm
Model: XR12P
Technical Specifications
System:
Driver Quantity:
Frequency Response(-3dB):
Frequency Response(-10dB):
Max Sound Level(dB/1M):
Level Adjust range:
Output power:
Distortion:
Rotatable horn(HxV):
Load impedance:
Input impedance:
Connectors:
Power supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
SYDNEY (NSW & ACT SALES)
Phone: (02) 9647 1411
Email: nsw@audiotelex.com.au
ADELAIDE (SA & NT SALES)
Phone: (08) 8352 4444
Email: sa@audiotelex.com.au
www.audiotelex.com.au
XR12P
Built-in crossover two way full range active speaker
12"x1(Bass)
12dB(100Hz)-Bass
300W(Bass)+100W(Treb)
Line-0.02%, Microphone-0.04%
Treb - 8Ohm, Bass - 8 Ohm
Line - 20KOhm, Microphone - 10KOhm
AC 115/230V, 50/60Hz
MELBOURNE (VIC & TAS SALES)
Phone: (03) 9890 7477
Email: vic@audiotelex.com.au
PERTH (WA SALES)
Phone: (08) 9228 4222
Email: wa@audiotelex.com.au
1 x 44mm Driver
50Hz-18KHz
40Hz-20KHz
118dB
10dB(10KHz)-Treb
0 0
50-100 x55
XLR K3P
415X391 X600 mm
465X435X680mm
23Kg
25.2Kg
