AUSTRALIAN MONITOR XR10P Brochure

Features:

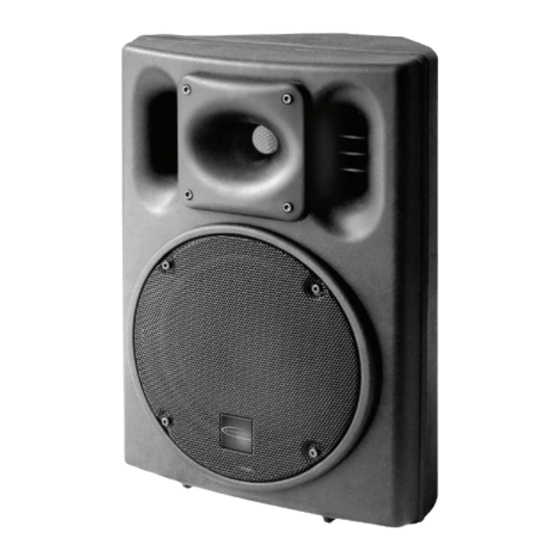

Two-way active speaker with one 10" woofer and
one 1" driver.
Cabinet is made tech from polypropylene and
special high-tech material. It's durable, anti-shock
and has good damping characters.
Voice coil in the 10" woofer is made from
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
Rotatable 90° x 60° (HxV) dispersion horn makes
it suitable for any performance purposes.
Molded-in pole mount, easily suspended.
Arrayable vertically in 4 layers or horizontally in
more than 8 columns.
www.australianmonitor.com.au
Distributed by Audio Telex Communications Pty Ltd
EUROPE/ASIA/MIDDLE EAST
Phone: 61 2 9647 1411
Email: international@audiotelex.com.au
XR10P
POWERED SPEAKER SYSTEM
50mm
Model: XR10P
Technical Specifications
System:
Driver Quantity:
Frequency Response(-3dB):
Frequency Response(-10dB):
Max Sound Level(dB/1M):
Level Adjust Range:
Output Power:
Distortion:
Tweeter Dispersion(HxV):
Load Impedance:
Input Impedance:
Connectors:
Power Supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
SYDNEY (NSW & ACT SALES)
Phone: (02) 9647 1411
Email: nsw@audiotelex.com.au
ADELAIDE (SA & NT SALES)
Phone: (08) 8352 4444
Email: sa@audiotelex.com.au
www.audiotelex.com.au
XR10P
Built-in crossover two way full range active speaker
10"x1(Bass)
100W(Bass)+50W(Treb)
Line-0.02%, Microphone-0.04%
Treb - 8Ohm, Bass - 8 Ohm
Line - 20KOhm, Microphone - 10KOhm
AC 115V/230V, 50/60Hz
MELBOURNE (VIC & TAS SALES)
Phone: (03) 9890 7477
Email: vic@audiotelex.com.au
PERTH (WA SALES)
Phone: (08) 9228 4222
Email: wa@audiotelex.com.au
1 x 34mm Driver
55Hz-18KHz
50Hz-18KHz
117dB
12dB(100Hz)- Bass
10dB(10KHz)- Treb
90 X60
XLR K3P
325X308 X478 mm
375X355X535mm
10.5Kg
11.8Kg
BRISBANE (QLD SALES)
Phone: (07) 3852 1312
Email: qld@audiotelex.com.au
AUCKLAND (NZ SALES)
Phone: (09) 415 9426
Email: sales@audiotelex.co.nz
ABN 78001345482 Incorporated in NSW
