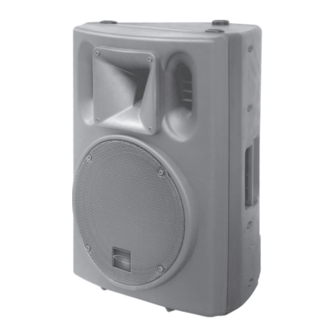

AUSTRALIAN MONITOR XR15 Brochure

Features:
Two-way passive speaker with one 15" woofer
and one 2" driver
Highly durable poly propylene injection
molded cabinet.
Voice coil in the 15" woofer is made from
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
High frequency driver protection.
Rotatable 100 x 55 (HxV) dispersion horn for
horizontal or vertical mounting.
Pole mount or eye bolt installation points.
www.audiotelex.com.au
Distributed by Audio Telex Communications Pty Ltd
SYDNEY (NSW & ACT SALES) MELBOURNE (VIC & TAS SALES)
Phone: (02) 9647 1411 Phone: (03) 9890 7477
Email: nsw@audiotelex.com.au Email: vic@audiotelex.com.au
XR15
75mm
Model: XR15
Technical Specifications
System:
Two Way Full Range Speaker With Built-in Crossover
Drivers:
Frequency Response(-3dB):
Frequency Response(-10dB):
Sensitivity(dB/1M/1W):
Impedance:
Recommendatory Power(RMS/W):
Max Sound Level(dB/1M):
Dispersion(HxV) Rotatable:
Harmonic Distortion:
Connectors:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
BRISBANE (QLD SALES) ADELAIDE (SA & NT SALES)
Phone: (07) 3852 1312 Phone: (08) 8352 4444
Email: qld@audiotelex.com.au Email: sa@audiotelex.com.au
XR15
15" x 1
1x 44mm Driver
40Hz-18KHz
35Hz-20KHz
8 Ohm
300 W
121dB
100
2xNL4
485X460X700mm
545X515X800mm
26.0Kg
28.0Kg
PERTH (WA SALES) AUCKLAND (NZ SALES)
Phone: (08) 9228 4222 Phone: (09) 415 9426
Email: wa@audiotelex.com.au Email: audiotlx@nznet.gen.nz
ABN 78001345482
98 dB
0 0
x55
1%
Incorporated in NSW
