Features:
Two-way active speaker with one 15" woofer and
one 2" driver.
Cabinet is made from polypropylene and special
high-tech material. It's durable, anti-shock and has
good damping characters.
Voice coil in the 15" woofer is made from
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
Rotatable 50-100°x55° (HxV) dispersion horn makes
it suitable for any performance purposes.
Molded-in pole mount, easily suspened.
Vertical or horizontal layout, can be used as a
monitor or in any flying systems.
Arrayable vertically in 4 layers or horizontally in more
than 8 columns.
www.australianmonitor.com.au
Distributed by Audio Telex Communications Pty Ltd
EUROPE/ASIA/MIDDLE EAST
Phone: 61 2 9647 1411
Email: international@audiotelex.com.au

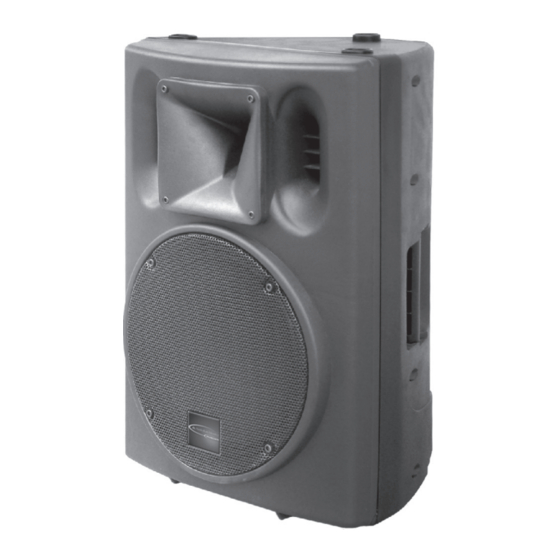

XR15P
POWERED SPEAKER SYSTEM
75mm
Model: XR15P
Technical Specifications
System:
Driver Quantity:
Frequency Response(-3dB):
Frequency Response(-10dB):
Max Sound Level(dB/1M):
Level Adjust range:
Output power:
Distortion:
Rotatable horn(HxV):
Load impedance:
Input impedance:
Connectors:
Power supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
SYDNEY (NSW & ACT SALES)
Phone: (02) 9647 1411
Email: nsw@audiotelex.com.au
ADELAIDE (SA & NT SALES)
Phone: (08) 8352 4444
Email: sa@audiotelex.com.au
www.audiotelex.com.au
XR15P
Built-in crossover two way full range active speaker
15"x1(Low)
12dB(100Hz)-Bass
300W(Bass)+100W(Treb)
Line-0.02%, Microphone-0.04%
Treb - 8Ohm, Bass - 8 Ohm
Line - 20KOhm, Microphone - 10KOhm
AC 115/230V, 50/60Hz
MELBOURNE (VIC & TAS SALES)
Phone: (03) 9890 7477
Email: vic@audiotelex.com.au
PERTH (WA SALES)
Phone: (08) 9228 4222
Email: wa@audiotelex.com.au
1 x
44mm Driver
40Hz-18KHz
35Hz-20KHz
120dB
10dB(10KHz)-Treb
0
0
50-100 x55
XLR K3P
485X460
X700
mm
545X515X800mm
30.5Kg
33.7Kg
BRISBANE (QLD SALES)
Phone: (07) 3852 1312
Email: qld@audiotelex.com.au
AUCKLAND (NZ SALES)
Phone: (09) 415 9426
Email: sales@audiotelex.co.nz
ABN 78001345482
Incorporated in NSW
