Features:

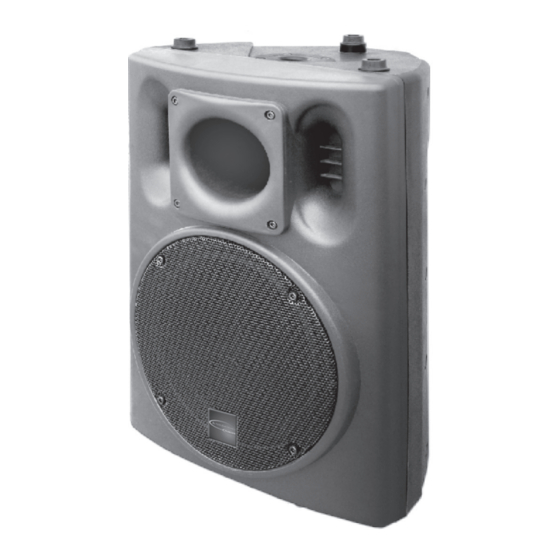

Active low frequency speaker with one 15" woofer.
Cabinet is made from polypropylene and special
high-tech material in large injection mold.
It's durable, anti-shock and has good
damping characters.
Voice coil in the 15" woofer is made from
copper cladding aluminium ribbon wire. Its efficiency
is 20% higher than normal round wires.
Heavy duty protective grille.
www.australianmonitor.com.au
Distributed by Audio Telex Communications Pty Ltd
EUROPE/ASIA/MIDDLE EAST
Phone: 61 2 9647 1411
Email: international@audiotelex.com.au
XR15SUBP
POWERED SPEAKER SYSTEM
75mm
Model: XR15SUBP
Technical Specifications
System:
Cabinet material:
Cabinet Colors:
Drive Quantity:
High Cut Adjustable:
Max Sound Level(dB/1M):
Output Power:
Distortion:
Load Impedance:
Input Impedance:
Connectors:
Power Supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
SYDNEY (NSW & ACT SALES)
Phone: (02) 9647 1411
Email: nsw@audiotelex.com.au
ADELAIDE (SA & NT SALES)
Phone: (08) 8352 4444
Email: sa@audiotelex.com.au
www.audiotelex.com.au
XR15SUBP
Active low frequency speaker
Polypropylene, Trapezoid
Black, White, Blue, Gray
AC 115V/230V, 50/60Hz
485x460
545x515x800mm
MELBOURNE (VIC & TAS SALES)
BRISBANE (QLD SALES)
Phone: (03) 9890 7477
Phone: (07) 3852 1312
Email: vic@audiotelex.com.au
Email: qld@audiotelex.com.au
PERTH (WA SALES)
AUCKLAND (NZ SALES)
Phone: (08) 9228 4222
Phone: (09) 415 9426
Email: wa@audiotelex.com.au
Email: sales@audiotelex.co.nz
ABN 78001345482
1x15" (Bass)
80Hz-250Hz
120dB
400W
0.02%
4 Ohm
20 KOhm
XLR K3P
x700
mm
30.5Kg
33.7Kg
Incorporated in NSW
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AUSTRALIAN MONITOR XR15SUBP
Summary of Contents for AUSTRALIAN MONITOR XR15SUBP
- Page 1 POWERED SPEAKER SYSTEM XR15SUBP Features: Active low frequency speaker with one 15” woofer. Cabinet is made from polypropylene and special high-tech material in large injection mold. It’s durable, anti-shock and has good damping characters. Voice coil in the 15” woofer is made from 75mm copper cladding aluminium ribbon wire.
- Page 2 POWERED SPEAKER SYSTEM XR15SUBP VOLUME X-OVER FREQ INPUT THRU Made in China 1. Volume control. 6. Phase inverting switch. 2. Active indicator. 7. High cut. (80Hz-250Hz adjustable) 3. Line/microphone input. 8. Limit indicator. 4. 115V/230V voltage input selector. 9. Line/microphone output. Make sure that the voltage selector is (Direct connection to input) set for your country’s correct voltage.
