Using the EM 9046
sys live
Jog dial
button
esc button

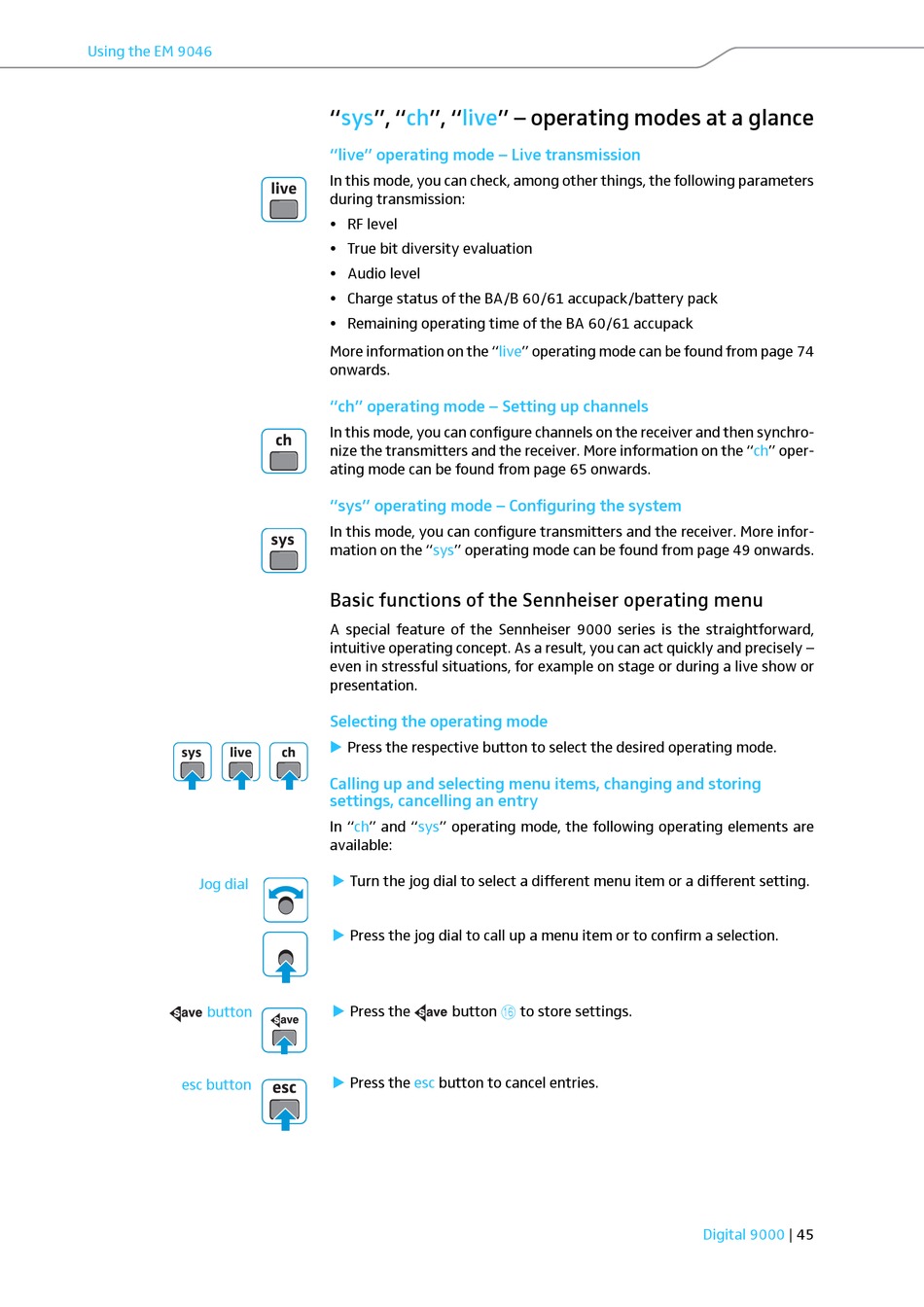

"sys", "ch", "live" – operating modes at a glance
"live" operating mode – Live transmission
In this mode, you can check, among other things, the following parameters
live
during transmission:
• RF level
• True bit diversity evaluation
• Audio level
• Charge status of the BA/B 60/61 accupack/battery pack
• Remaining operating time of the BA 60/61 accupack
More information on the "live" operating mode can be found from page 74
onwards.
"ch" operating mode – Setting up channels
In this mode, you can configure channels on the receiver and then synchro-
ch
nize the transmitters and the receiver. More information on the "ch" oper-
ating mode can be found from page 65 onwards.
"sys" operating mode – Configuring the system
In this mode, you can configure transmitters and the receiver. More infor-
sys
mation on the "sys" operating mode can be found from page 49 onwards.

Basic functions of the Sennheiser operating menu

A special feature of the Sennheiser 9000 series is the straightforward,
intuitive operating concept. As a result, you can act quickly and precisely –
even in stressful situations, for example on stage or during a live show or
presentation.
Selecting the operating mode
Press the respective button to select the desired operating mode.
ch
Calling up and selecting menu items, changing and storing
settings, cancelling an entry
In "ch" and "sys" operating mode, the following operating elements are
available:
Turn the jog dial to select a different menu item or a different setting.
Press the jog dial to call up a menu item or to confirm a selection.
Press the
esc Press the esc button to cancel entries.
F
button to store settings.
Digital 9000 | 45
