Jenn-Air JMC2430WS Product Dimensions

PRODUCT MODEL SERIES
JMC2430W
ELECTRICAL CONNECTION
To properly install your microwave oven, you must
determine the type of electrical connection you will
be using and follow the instructions provided for it
here.
Microwave oven must be connected to the
proper electrical voltage and frequency as
specified on the model/serial number rating plate.
The model/serial number rating plate is located
on the left-hand side trim.
A
A. Model/serial number plate
The microwave oven rated 120/240 volt, 20-amp,
has 4 wires (L1, L2, N and G) in the flex conduit
and should be connected to a 20-amp maximum
rated circuit, overcurrent protected on both the
L1 and L2 circuits.
A time-delay fuse or circuit breaker is
recommended.
CABINET OPENING DIMENSIONS
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
F
E
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

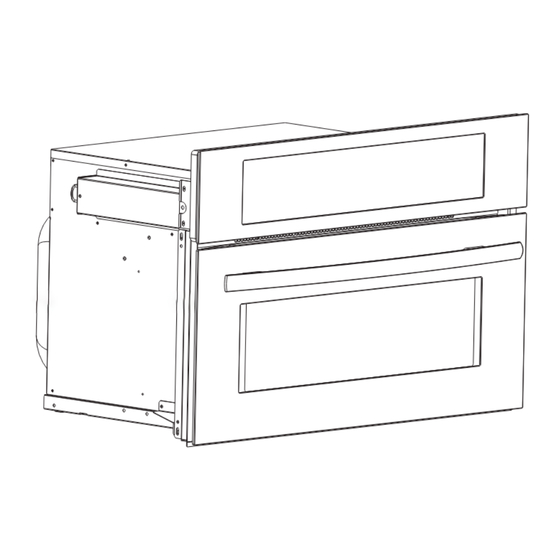

27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN
CONVECTION MICROWAVE OVEN
PRODUCT DIMENSIONS
A
D
B
G
C
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
A
E
D
27" (68.6 cm) models
B. 19 " (48.6 cm) overall height
C. 26 " (67.9 cm) overall width
D. 22 " (57.0 cm) overall depth
height
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
cutout to bottom of upper
cabinet door
C. (101.6 cm) bottom of
40"
cutout to floor (recommended)
D. 25 " (64.8 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
cutout height (will fit cutout
height from 17" [43.2 cm] to
G. 21 " (55.5 cm) min. cutout
depth
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
C
30" (76.2 cm) models
B. 19 " (48.6 cm) overall height
C. 29 " (75.6 cm) overall width
D. 22 " (57.0 cm) overall depth
height
30" (76.2 cm) models
A. 30" (76.2 cm) min. cabinet
width
cutout to bottom of upper
cabinet door
C. (101.6 cm) bottom of
40"
cutout to floor (recommended)
D. 28 " (72.4 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
cutout height (will fit cutout
height from 17" [43.2 cm] to
G. 21 " (55.5 cm) min. cutout
depth
Ref. W10221385A
08/12/2009
