Jenn-Air JMC2127W Product Dimensions

PRODUCT MODEL SERIES
JMC2127W
JMC2130W
ELECTRICAL CONNECTION
Microwave oven must be connected to the proper
electrical voltage and frequency as specified on the
model/serial number rating plate. The model/serial
number rating plate is located on the left-hand side
trim.
A
A. Model/serial number plate
Observe all governing codes and ordinances.
Required:
A 120 Volt, 60 Hz, AC only, 15- or 20-amp
electrical supply with a fuse or circuit breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave
oven.
CABINET OPENING DIMENSIONS
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
F
E
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC
BUILT-IN MICROWAVE OVEN

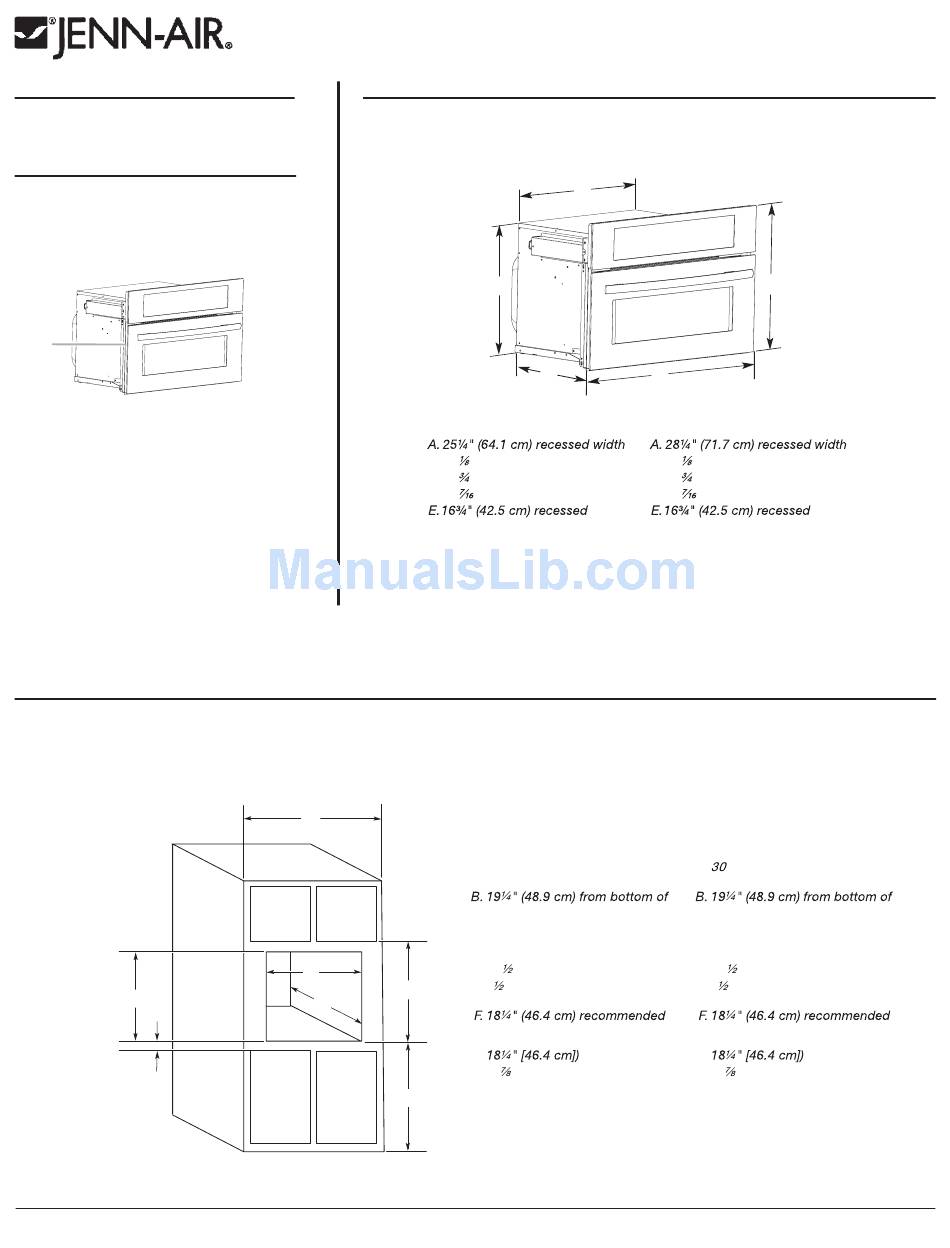

PRODUCT DIMENSIONS
27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens
A
D
B
G
C
A
E
D
27" (68.6 cm) models
B. 19 " (48.6 cm) overall height
C. 26 " (67.9 cm) overall width
D. 22 " (57.0 cm) overall depth
height
27" (68.6 cm) models
A. 27" (68.6 cm) min. cabinet
width
cutout to bottom of upper
cabinet door
C. 40" (101.6 cm) bottom of
cutout to floor (recommended)
D. 25 " (64.8 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
cutout height (will fit cutout
height from 17" [43.2 cm] to
G. 21 " (55.5 cm) min. cutout
depth
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
C
30" (76.2 cm) models
B. 19 " (48.6 cm) overall height
C. 29 " (75.6 cm) overall width
D. 22 " (57.0 cm) overall depth
height
30" (76.2 cm) models
A. " (76.2 cm) min. cabinet
width
cutout to bottom of upper
cabinet door
C. 40" (101.6 cm) bottom of
cutout to floor (recommended)
D. 28 " (72.4 cm) cutout width
E. 1 " (3.8 cm) min. bottom of
cutout to top of cabinet door
cutout height (will fit cutout
height from 17" [43.2 cm] to
G. 21 " (55.5 cm) min. cutout
depth
Ref. W10284419A
08/12/2009
