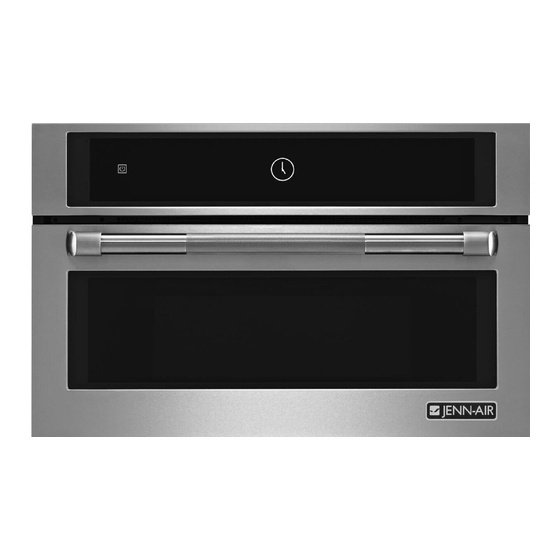

INSTALLATION INSTRUCTIONS 27" (68.6 CM)
AND 30" (76.2 CM) ELECTRIC BUILT-IN
CONVECTION MICROWAVE OVEN
INSTRUCTIONS D'INSTALLATION
FOUR À MICRO-ONDES ENCASTRÉ
ÉLECTRIQUE À CONVECTION DE
27" (68,6 CM) ET 30" (76,2 CM)
BUILT-IN MICROWAVE OVEN SAFETY ........................................1
INSTALLATION REQUIREMENTS .................................................2
Tools and Parts .............................................................................2
Location Requirements ................................................................2
Electrical Requirements ...............................................................3
INSTALLATION INSTRUCTIONS ...................................................4
Spacer Kit Installation ..................................................................4
Prepare Built-In Microwave Oven ................................................4
Make Electrical Connection .........................................................5
Install Microwave Oven ................................................................5
Complete Installation ...................................................................6
IMPORTANT:
Save for local electrical inspector's use.
IMPORTANT :
À conserver pour consultation par l'inspecteur local des installations électriques.
W10768186B
Table of Contents/Table des matières
BUILT-IN MICROWAVE OVEN SAFETY
SÉCURITÉ DU FOUR À MICRO-ONDES ENCASTRÉ ................7
EXIGENCES D'INSTALLATION .....................................................7
Outils et pièces .............................................................................7
Exigences d'emplacement ...........................................................7
Spécifications électriques ............................................................9
INSTRUCTIONS D'INSTALLATION .............................................10
Installation de la trousse d'entretoise ........................................10
Préparation du four à micro-ondes encastré.............................10
Raccordement électrique ...........................................................10
Installation du four à micro-ondes .............................................11
Achever l'installation ..................................................................12
Advertisement
Table of Contents
Related Manuals for Jenn-Air JMC2430D
Summary of Contents for Jenn-Air JMC2430D
- Page 1 INSTALLATION INSTRUCTIONS 27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN CONVECTION MICROWAVE OVEN INSTRUCTIONS D’INSTALLATION FOUR À MICRO-ONDES ENCASTRÉ ÉLECTRIQUE À CONVECTION DE 27" (68,6 CM) ET 30" (76,2 CM) Table of Contents/Table des matières BUILT-IN MICROWAVE OVEN SAFETY ........1 SÉCURITÉ...
- Page 2 INSTALLATION REQUIREMENTS Tools and Parts For installation above single built-in oven, the junction box ■ must located inside upper cabinet. Gather the required tools and parts before starting installation. If you are installing the junction box on rear wall behind ■...
- Page 3 Cabinet Dimensions Electrical Requirements 27" (68.6 cm) and 30" (76.2 cm) Microwave Ovens GROUNDING INSTRUCTIONS For a permanently connected microwave oven: The microwave oven must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the microwave oven.
- Page 4 A UL listed or CSA approved conduit connector For power requirements, refer to the following table: ■ must be provided. Voltage Microwave With Convection Oven If the house has aluminum wiring, follow the ■ procedure below: 120/240 VAC 19.9 A/3250 W 1.
- Page 5 3-Wire Cable with Ground from Home Power Supply Make Electrical Connection to Microwave Oven Cable with 4 Wires WARNING Electrical Shock Hazard Disconnect power before servicing. Use 12 gauge solid copper wire. Electrically ground oven. Failure to follow these instructions can result in death, A.
- Page 6 2. Push against the front frame of the microwave oven to Complete Installation insert oven into cabinet. Push microwave oven completely into cabinet and center in cabinet cutout. 1. Check that all parts are now installed. If there is an extra part, NOTE: Open microwave oven door and push against go back through the steps to see which step was skipped.
