User Manual

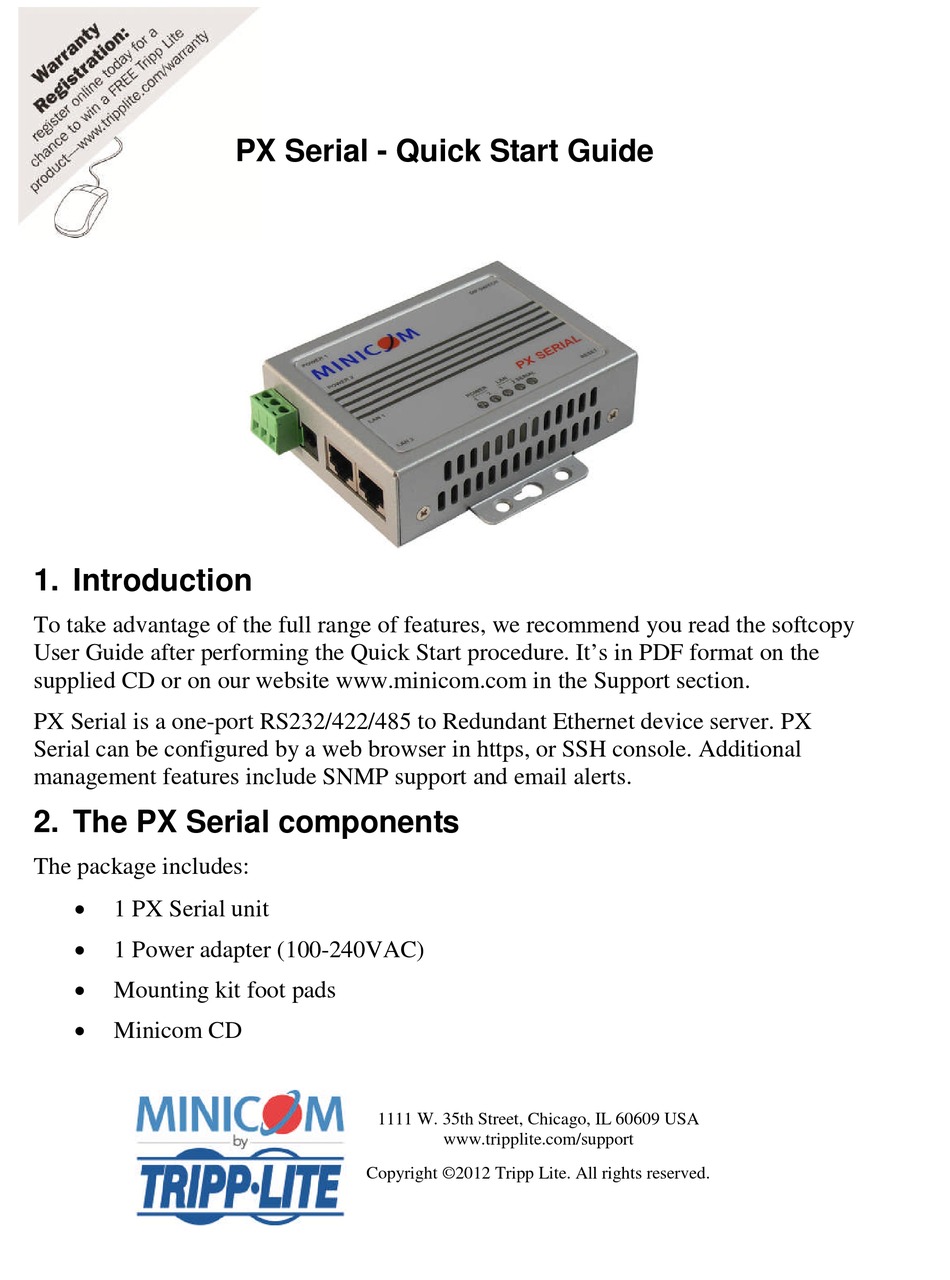

1. Introduction
To take advantage of the full range of features, we recommend you read the softcopy
User Guide after performing the Quick Start procedure. It's in PDF format on the
supplied CD or on our website www.minicom.com in the Support section.

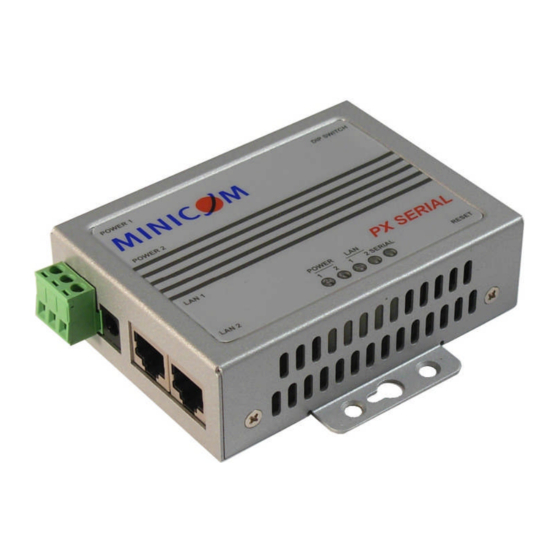

PX Serial is a one-port RS232/422/485 to Redundant Ethernet device server. PX
Serial can be configured by a web browser in https, or SSH console. Additional
management features include SNMP support and email alerts.
2. The PX Serial components
The package includes:
1 PX Serial unit
1 Power adapter (100-240VAC)
Mounting kit foot pads
Minicom CD
PX Serial - Quick Start Guide
1111 W. 35th Street, Chicago, IL 60609 USA
Copyright ©2012 Tripp Lite. All rights reserved.
www.tripplite.com/support
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Minicom 0SU70033
Summary of Contents for Minicom 0SU70033
-
Page 1: The Px Serial Components
2. The PX Serial components The package includes: 1 PX Serial unit 1 Power adapter (100-240VAC) Mounting kit foot pads Minicom CD 1111 W. 35th Street, Chicago, IL 60609 USA www.tripplite.com/support Copyright ©2012 Tripp Lite. All rights reserved. -
Page 2: Px Serial Ports
PX SERIAL 3. PX Serial ports Hardware reset button Long distance RS422 /485 120 Ohm termination dipswitches RS232/422/482 port, DB9M 15KV ESD for all signals Speed:110 bps to 460.8kbps Figure 1 PX Serial ports side 9-30 VDC Power Jack Redundant Dual 10/100M Ethernet 12-48 VDC Terminal Auto MDI/MDIX Auto- Block... -
Page 3: Px Serial Leds
QUICK START GUIDE 4. PX Serial LEDs Color Indication PWR 1 On: Power 1 is on and booting up. Blinking: Indicates an IP conflict, or DHCP or BOOTP server did not respond properly. Green On: Power is on and functioning normally. Blinking: Located by Administrator’s Location function. -
Page 4: Connecting To The Network Switch
PX SERIAL 5.1.1 Terminal Block (PWR1) 1. Insert the positive and negative wires of your DC supply into the V+ and V- contacts of the terminal block connector – see below. (GND / V- / V+) 2. Tighten the terminal screws to prevent the DC wires from coming loose – see below. -
Page 5: Configuring The Dipswitches
QUICK START GUIDE 5.4 Configuring the dipswitches The Long-Range Termination dipswitches can configure 120 Ohm termination for RS422 / 4-wire RS485 / 2-wire RS485. Set the dipswitches according to the following table. Dipswitch 1 Dipswitch 2 Configuration 120 Ohm terminator for long distance 4-wire RS485 / RS422 Don’t use this setting - it will cause errors! 120 Ohm termination for long distance 2-wire RS485 (Default) No termination for RS232/422/485 (short distance) -
Page 6: Network Setting
PX SERIAL 6.1 Network Setting Consult your Network Administrator for the network settings. Click Network Setting, the following appears. Figure 4 Network Setting On this page you configure for the PX: IP Configuration – DHCP or static IP address ... -
Page 7: Serial Setting
QUICK START GUIDE 7.1 Serial Setting Click Serial Setting, the following appears. Figure 5 Serial Setting Port Alias: Give the port an identifying name to be identified by the connected device. Select the Interface: RS232 / RS422 / RS485 (2-wires) / RS485(4-wires) Select the settings for Baud rate, Data Bits, Stop Bits, Parity and Flow Control. -
Page 8: Port Profile
PX SERIAL 7.2 Port Profile Click Port Profile, the following appears. Figure 6 Port Profile For advanced data packing options, you can specify delimiters for Serial to Ethernet and / or Ethernet to Serial communications. You can define up to a maximum of 4 delimiters (00~FF, HEX) for each way. The data will be held until the delimiters are received or the optional “Flush Ethernet to Serial data buffer”...
