Assembly and Parts

Cabinet and Cover Assemblies

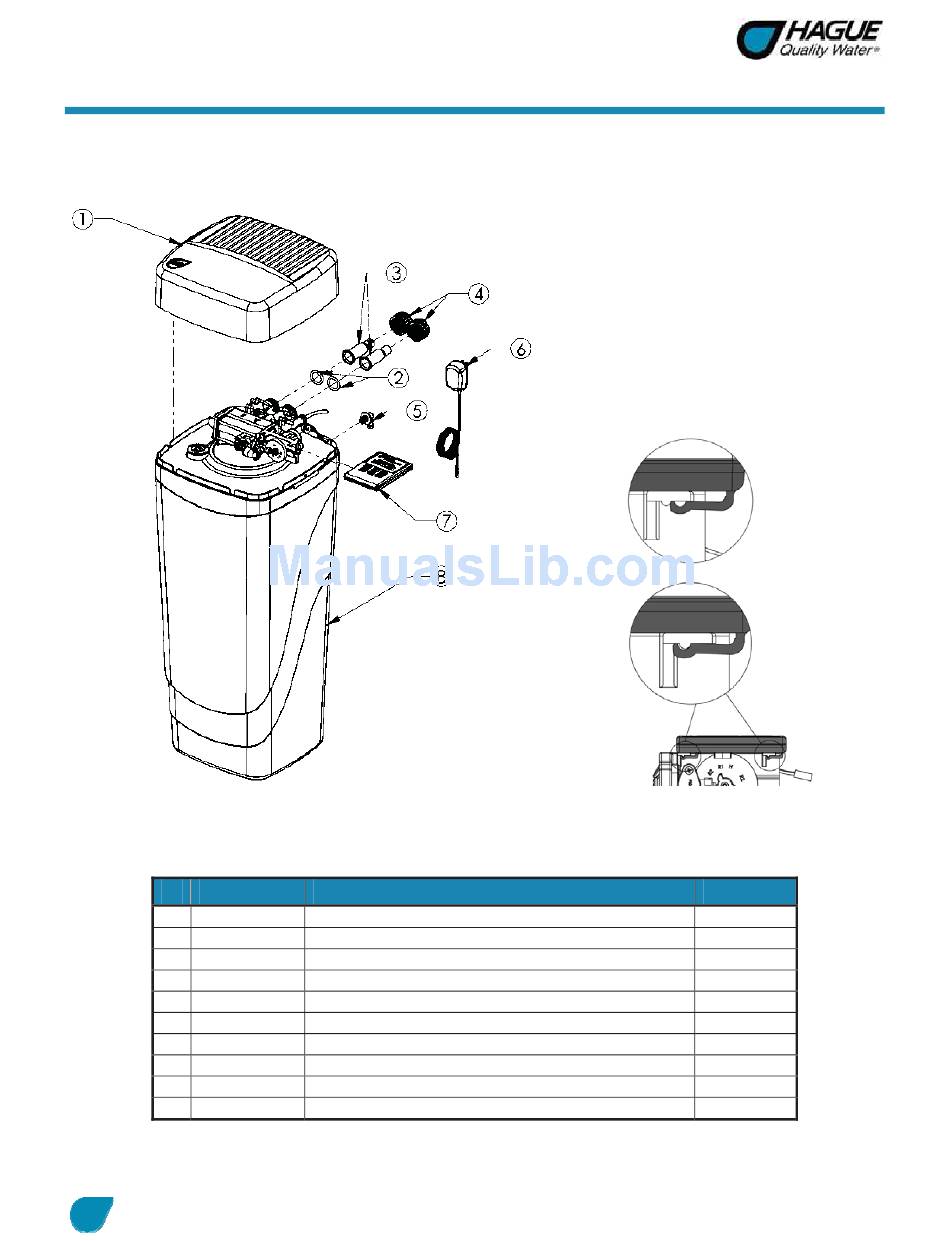

Figure 7: Cabinet and Cover Assemblies
Part #
1 54501
2 90837
3 90254
90256
90258
4 90251
5 C0700A
6 93245
7 54500
8 54003
WaterMax 60 Series Owner's Manual
Description
Media Cabinet Cover Assembly
Bypass Nut Gasket
Copper Adapter
PVC Adapter (optional)
Copper Adapter, 1" (optional)
Bypass Nut
Cabinet Overflow
12V Transformer/Power Cord
6 Button Control Assembly
Cabinet
Figure 8: Controller Tab Lock Detail
11/10/2008
Incorrect
Correct
Quantity
1
2
2
2
2
2
1
1
1
1
