Summary of Contents for Shoprider 889-3XLS

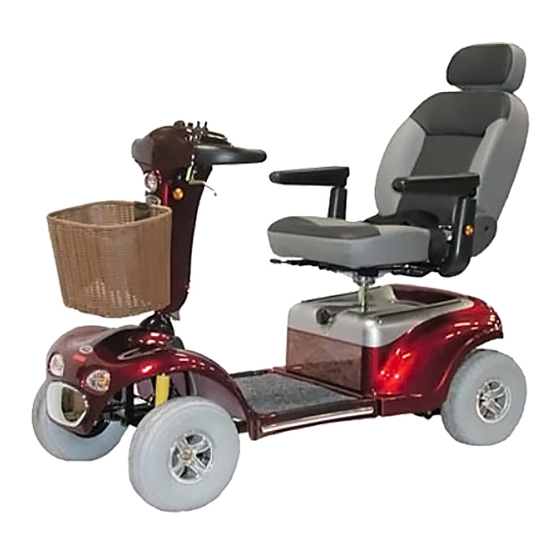

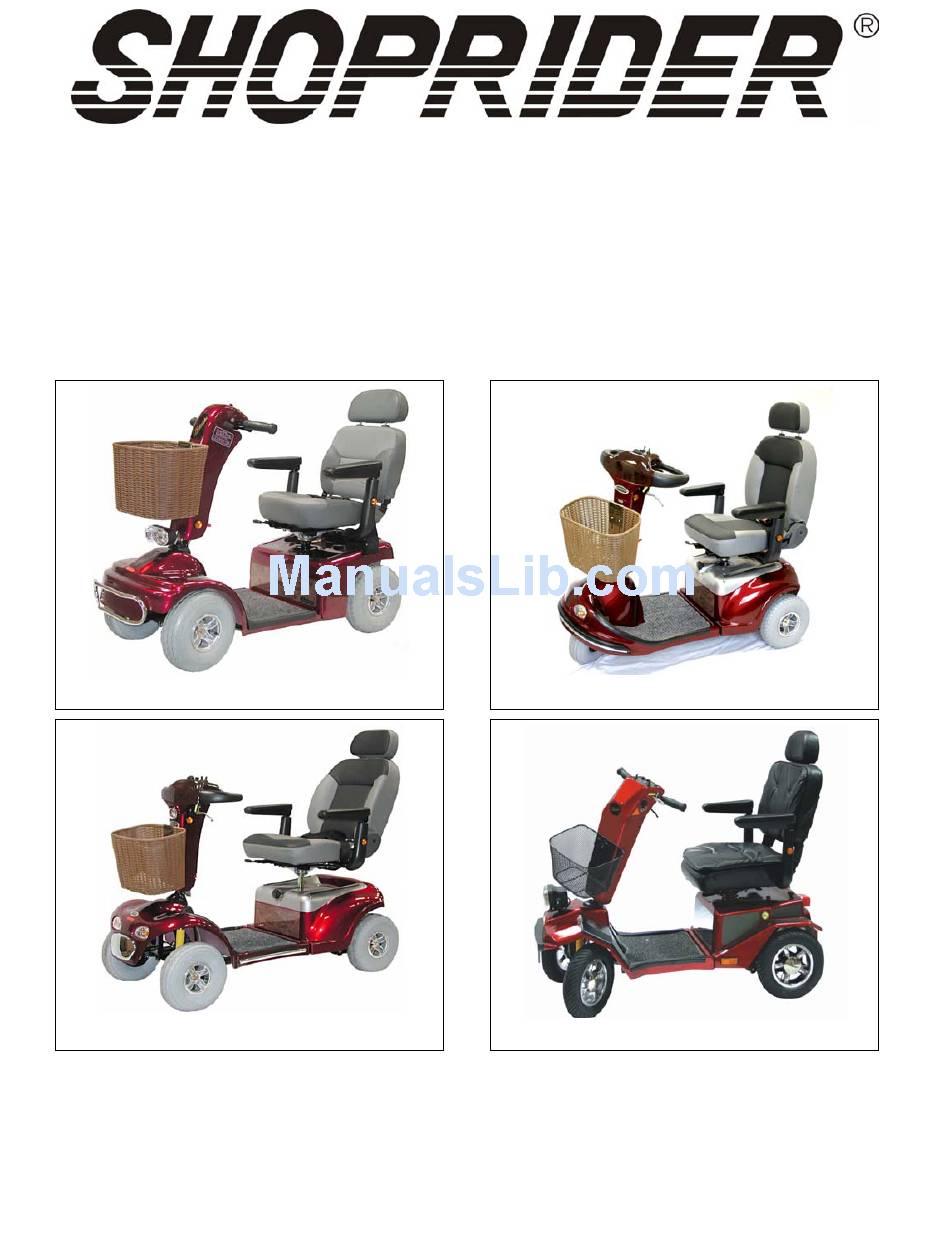

- Page 1 Heavy Duty Scooters SPRINTER XL4 SPRINTER XL3 DELUXE 889B-4) (889-3XLS) SPRINTER XL4 DELUXE SPRINTER JUMBO XL (889-4XLS) (889X) User Manual...
-
Page 2: Table Of Contents
INTRODUCTION ...3 FEATURE GUIDE (FIG. 1-4) ...3 SAFETY ADVICE...5 EMI Warning ...6 ADJUSTMENTS...8 Tiller Angle Adjustment (Fig. 5) ...8 Seat Slide & Swivel Adjustment (Fig. 6)...8 Seat Removal (Fig. 7) ...8 Seat Height Adjustment (Fig. 7)...8 Armrest Width Adjustments (Fig. 8) ...8 Armrest Angle Adjustment (Fig. -
Page 3: Captain Seat 6
Shoprider® scooter. Your scooter may be used in both indoors and outdoors. electromagnetic brakes give a safe and efficient ride. This Shoprider® scooter is designed for persons with limited mobility. - Page 4 Sprinter XL4 Deluxe (Figure 3) 1. Delta tiller control head 2. Head lights and indicators 3. Rear lights and indicators 4. Adjustable width armrests 5. Swivel and sliding seat 6. Seat height adjustment 7. Reclining captain’s seat 8. Foot rest 9.
-
Page 5: Safety Advice
• Do not use parts or accessories that are not authorized by Shoprider® Mobility Products Inc. • Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure the POWER is off and the scooter can not move under its own power. -
Page 6: Emi Warning
Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. interference (from radio wave sources) can cause the scooter to release its brakes, move by itself, or move in unintended directions. - Page 7 NOTE! There is no easy way to evaluate the overall immunity of the scooter. 5. Report all incidents of unintended movement or braking to your Shoprider® provider, and note whether there are sources of EMI nearby. WARNING: Shoprider® Mobility Products is not responsible for damage or injury incurred due to improper and unsafe use of our scooter.
-
Page 8: Adjustments
Tiller Angle Adjustment (Fig. 5) On the left hand side at the base of the tiller is a red lever. Push the lever to release the pin and select the desired tiller angle. Refit the pin into one of the five location holes to lock tiller in place. -
Page 9: Armrest Angle Adjustment (Fig. 9)
Armrest Angle Adjustment (Fig. 9) Flip up the armrests to allow access to the adjustment screw and lock nut, unscrew the lock nut and screw the bolt in or out to increase or decrease the angle. Re-tighten the lock-nut. The armrests are set parallel to the floor at the factory. -
Page 10: Scooter Tiller Controls (Fig. 11A&B&C)
SCOOTER TILLER CONTROLS (FIG. 11A, 11B & 11C) Speed Controls The speed control dial allows you to set a speed between 1 (minimum) and 10 (maximum). The Sprinter XL3 Deluxe, XL4 Deluxe, and Jumbo XL are also equipped with a speed high/low switch. Battery Level Indicator/Gauge The number of LED bars lit/where the needle rests, shows the amount of charge left in your batteries. -
Page 11: Free Wheel Operation (Fig. 12A&B)
The anti-tip wheels are located at the rear of the scooter frame (Sprinter XL4) (Fig. 12B). The scooter should not be used unless the anti-tipping wheels are in place. Shoprider® Mobility Products is not responsible for damage or injury incurred due to improper or misuse of the scooter. -
Page 12: Starting Scooter Movement
Starting Scooter Movement • Ensure that you are seated in a comfortable position. • Turn the key to the ON position. • Your speed setting should be on 1 or 2. If equipped, set the speed high/low switch to low. •... -
Page 13: Batteries And Battery Charger
The battery charger supplied for the Shoprider® Sprinter XL3 Deluxe, Sprinter XL4 Deluxe, and Sprinter Jumbo XL scooters are 24 volt 8 amp transformer type off-board chargers. The battery charger supplied for the Shoprider® Sprinter XL4 scooter is a 24 volt 3 amp transformer type off-board charger. -
Page 14: Wheels And Tires
Wheels and Tires The wheels of your scooter have split rims. This allows any punctures to be repaired easily. To change the wheel remove the center 13 mm bolt and slide the wheel off its axle. Ensure that when refitting the wheel the retaining bolt is fitted with a locking washer or the screw threads are treated with lock-tite or a similar adhesive. -
Page 15: Technical Specifications
UNIT SPECIFICATIONS Overall Dimensions: L¹ x W x H¹ Number, Size of Tires Suggested User Weight (on the level road) Weight of Heaviest Part (w/o battery, baskets and seat) Total Weight (w/ batteries, basket, seat) Each Battery Module Weight Maximum Battery Module Capacity Charger Output Power of Motor... -
Page 16: Quarterly Inspection
For your own safety, quarterly inspection and service on the product has to be performed and signed by an authorized provider. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement is not met. -
Page 17: Warranty
It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products. -
Page 18: Notes
Notes: 12/29/2004... - Page 19 Notes: 12/29/2004...
- Page 20 Provider’s Stamp Shoprider® Mobility Products, Inc. (800) 743-0772 www.shoprider.com 12/29/2004...
