Summary of Contents for Shoprider Explorer 888SE

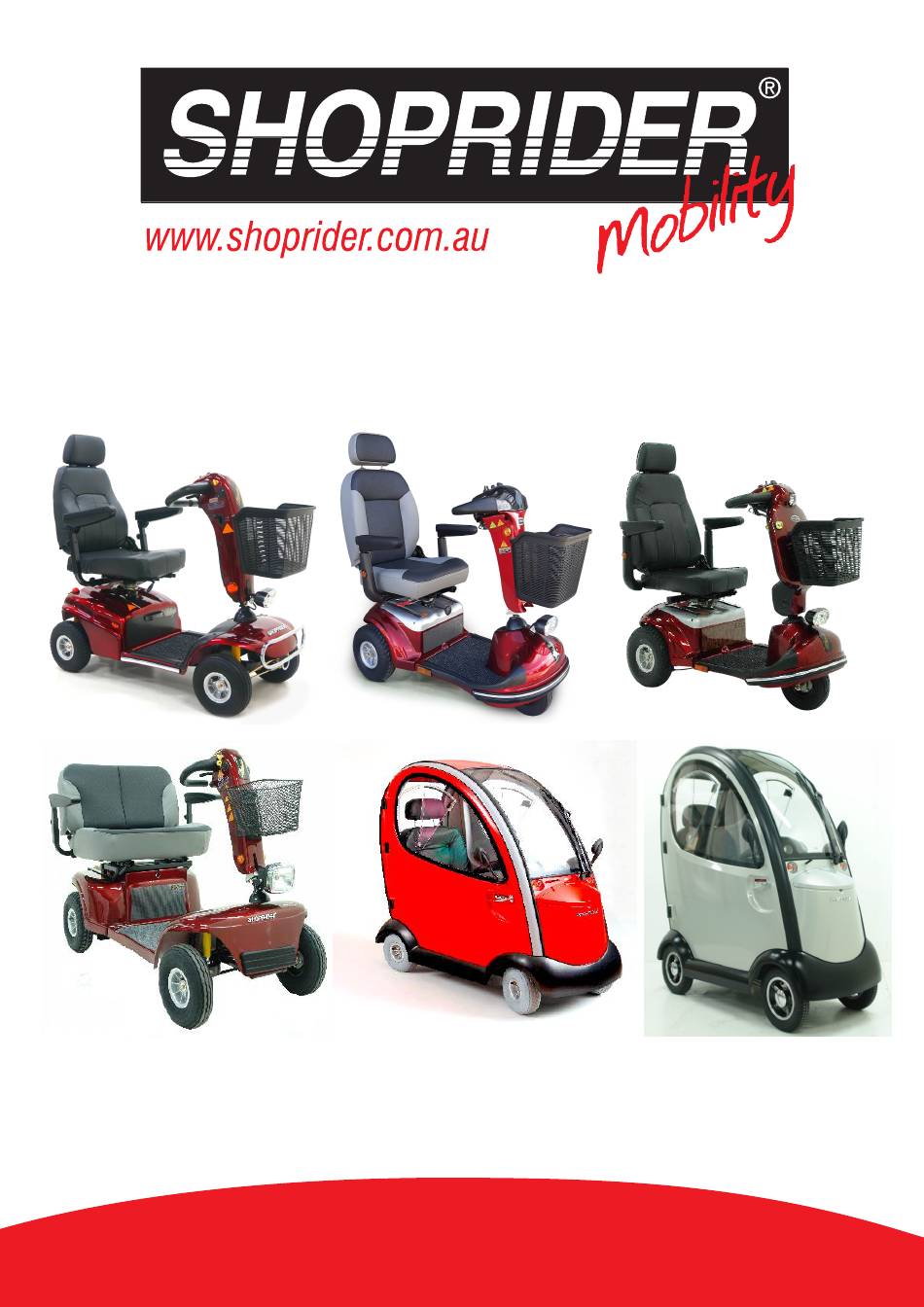

- Page 1 Scooter Owner’s Manual www.shoprider.com.au R E L I A B L E M O B I L I T Y G U A R A N T E E D...
-
Page 2: Table Of Contents
User Manual Contents INTRODUCTION SCOOTER FEATURE GUIDE SAFETY RULES EMI WARNINGS ADJUSTMENTS 10-11 Tiller Angle Adjustment (Fig. 6A&B) Seat Slide & Swivel Adjustment (Fig. 7) Seat Removal (Fig. 7) Seat Height Adjustment (Fig. 8) Armrest Width Adjustments (Fig. 9) Armrest Angle Adjustment (Fig. 11) Seat Reclining Angle (Fig. - Page 3 User Manual Contents continued OPERATING YOUR SHOPRIDER® SCOOTER Mounting the Scooter Starting Scooter Movement Steering Reversing Dismounting Basic Driving Grass and Gravel Ramps Curbs Maximum User Weights Ramp Angle (Appendix 1) BATTERIES AND BATTERY CHARGER Battery Charger Charging Periods of Storage Airline Travel CARE &...
-
Page 4: Introduction
ATTENTION: This owner's manual is printed based on the latest specifications and product information available at the time of publication. SHOPRIDER® reserves the right to make changes as they become necessary. Any changes to the SHOPRIDER® range may cause slight variations between the illustrations and explanations in this manual and the scooter model that was purchased. -
Page 5: Scooter Feature Guide
Scooter Feature Guide 888SE EXPLORER Tiller Scooter Controls Front Head Light Chrome Front Bumper With Tie Down Point 260mm X 85mm Pneumatic Tyres Adjustable Width & Height Armrest Seat Swivel Lever Seat Recline Adjustment Lever Easy Clean Multi Position Handle Bar Detachable Shopping Basket High Back Seat With Adjustable Headrest Infinite Angle Tiller Adjustment... - Page 6 Scooter Feature Guide continued 778SL Tiller Scooter Controls Front Head Light 260mm X 85mm Pneumatic Tyre 300mm X 100mm Pneumatic Tyres Adjustable Width & Lift Up Armrest Seat Swivel Lever Seat Recline Adjustment Lever Foam Padded Multi Hand Position Handle Bar Detachable Shopping Basket High Back Seat With Adjustable Headrest Tiller Angle Lever Lock...
- Page 7 Scooter Feature Guide continued 889D Tiller Scooter Controls Front Head Light 330mm X 100mm T yres Adjustable Width & Lift Up Armrest Large Foot Platform Easy Clean Multi Position Handle Bar Detachable Shopping Basket One Metre Wide Seat Tiller Angle Lever Lock Suspension Front &...
-
Page 8: Safety Rules
DISCLAIMER SHOPRIDER® is not responsible for any damage or injury incurred due to improper or unsafe use of the SHOPRIDER® scooter. Mechanical or electrical defects will be dealt with on a contingency liability basis. The parts... -
Page 9: Emi Warnings
Australian standard. The intensity of the interfering EMI energy can be measured in volts per meter (V/M). Each SHOPRIDER® scooter can resist up to a certain intensity. This is called “immunity level” the higher the immunity the greater the protection. At this time current technology is capable of achieving 20V/M immunity level which will provide useful protection from the more common sources of radiated EMI. -
Page 10: Adjustments
Adjustments Tiller Angle Adjustment (Fig. 6A) On the left hand side at the base of the tiller is a red lever/black knob. Push/pull the lever to release the pin and select the required tiller angle. Refit the pin into one of the Tiller Angle five location holes. -
Page 11: Armrest Width Adjustments (Fig. 9)
Available on the 888SE only. Use the appropiate tool to either soften (turn to the right) or stiffen (turn to the Figure 12 left) the suspension. Do not turn past the marking noted on the shock absorber otherwise service by a Shoprider dealer will be required. Figure 13... -
Page 12: Scooter Tiller Controls
The speed control dial will allow the scooter to set the speed between 1 (minimum) and 10 (maximum). Please note - When driving your Shoprider up or down an incline it is important to ensure the speed control dial is at 7-10 when going up up the incline &... -
Page 13: 888Se Explorer - Rainrider
Scooter Tiller Controls continued Battery Level Speed Control Indicator Dial Switch Wig Wag Reverse Lever Battery Charger Port Horn Wig Wag Forward Lever Tiller Angle Adjustment Lever Lights 888SE EXPLORER Battery Level Indicator Indicator Switch Battery Charger Port Speed Control Wig Wag Dial Reverse Lever... -
Page 14: 778Sl - 778Hd
Scooter Tiller Controls continued Battery Level Indicator Indicator Switch Speed Control Dial Wig Wag Reverse Lever Wig Wag Forward Lever Horn Lights Hazard Lights Switch Tiller Angle Battery Adjustment Lever Charger Port 778SL Battery Level Speed Control Indicator Dial Indicator Hi/Low Speed Switch Switch... -
Page 15: 889D
Scooter Tiller Control continued Battery Charger Port Speed Control Battery Level Dial Indicator K ey Switch Wig Wag Wig Wag Reverse Lever Forward Lever Indicator Lights Switch Horn Tiller Angle Hazard Adjustment Lever Lights 889D... -
Page 16: Free Wheel Operation (Fig. 14)
The scooter should not be used unless the ant-tips are fitted. Please note No anti-tip wheels are fitted to the 889D Shoprider® is not responsible for the damage or injury due to improper or misuse of the scooter. Rear Chassis Cover... -
Page 17: Operating Your Shoprider® Scooter
Operating Your Shoprider® Scooter Mounting the Scooter For your first lesson be sure you and your Shoprider® scooter are on a level surface with plenty of room to test drive the scooter. Mount the scooter, either by lifting the armrest and sliding on to the seat or rotate the seat by lifting the seat swivel lever and then rotate to face the tiller. -
Page 18: Grass And Gravel
This will reduce the possibility of the scooter tipping. CAUTION: Do not drive your Shoprider® across the side of an incline Do not stop if possible while driving up or down an incline. Use 7-10 setting on your speed dial when going up an incline and 1-4 when going down the incline. -
Page 19: Ramp Angle
Appendix 1 888SE EXPLORER (15%) 91kg (10%) 113kg (0%) 136kg RAINRIDER 12' (20%) 70kg (15%) 90kg (10%) 100kg (0%) 160kg 778SL (15%) 91kg (10%) 113kg (0%) 136kg 778HD (15%) 136kg (10%) 159kg (0%) 183kg 889D 12' (20%) 113kg (15%) 136kg (10%) 159kg (0%) 225kg... -
Page 20: Batteries And Battery Charger
Battery life is not specific due to a number of reasons however Shoprider® encourages that the scooter be placed on charge every night. -
Page 21: Periods Of Storage
Periods of Storage If the Shoprider® scooter is not going to be used for long periods of time then Shoprider® recommends that the scooter be charged every two weeks as a minimum. To optimise the life of the batteries it is also suggested that the scooteris driven for a minimum of 30 minutes then placed back on charge. -
Page 22: Care & Maintenance
Every six months check the tiller base bolts, wheel axle bolts, and arm rest angle adjustment bolts and tighten as necessary. Also check the seat and arm rest tightening knobs and tighten as needed. If your scooter is fitted with authorised Shoprider®... -
Page 23: Additional Rainrider Info
It is recommended that when the RainRider is not being used it is stored in a dry & well ventilated area. Cleaning Your Shoprider® scooter can be cleaned as required however as with all electrical equipment you must ensure that extreme care is used to not water damage any sensitive parts. -
Page 24: Trouble Shooting Guide
Structural Frame – 3 Years Shoprider Australia warrants that the frame will be free from defects under normal use, for a period of three (3) years from the date of purchase by the original customer. - Page 25 Warranty Terms & Conditions Drive Train Assembly – 18 months Shoprider Australia warrants that the drive train Assembly will be free from defects under normal use, for a period of eighteen (18) months from the date of purchase by the original customer.
-
Page 26: Technical Specifications
Driver weight may exceed weight of unit: speed must be reduced when turning. DISCLAIMER Congratulations on your purchase of the Shoprider® It is not intended to be used by individuals with physical limitations that could prevent the user from operating this unit safely. Shoprider® disclaims all responsibility for any personal injury or property damage, which may occur as a result of improper or unsafe use of its products. - Page 27 You can rely on a Shop rider Ask for the brand Shoprider! R E L I A B L E M O B I L I T Y G U A R A N T E E D...
