- Page 1 Owner's Manual Includes the SIA CP-01 Control Panel Standard Features for False Alarm Reduction Document Number 21R00-1 Rev. 2.16 December, 2007...
- Page 2 Document Number 21R00-1 Rev. 2.16 December, 2007 Copyright © 2000-2007 HAI All Rights Reserved www.homeauto.com...
-
Page 3: Table Of Contents
Contents INTRODUCTION............................1 Underwriter's Laboratories (UL) Listing ............................1 OVERALL DESCRIPTION .......................... 2 Console Operation ...................................2 Normal Top-Level Display ................................3 Display Menus ....................................3 Main Menu....................................4 Enable or Disable Console Beeper Locally at the Console......................4 Error Beeps ....................................4 Trouble Beeps.....................................4 Confirmation Beep..................................5 Cancel ......................................5 Time Out.....................................5 OmniLT Maintenance..................................5... - Page 4 About UPB.....................................15 HAI Lighting Control (HLC) Format.............................16 About Rooms ....................................16 About Room Controllers................................16 Room Controller LED Indicators..............................16 About House Controllers ................................17 About Vizia RF Z-Wave ................................17 Vizia RF Z-Wave Format .................................17 About CentraLite ...................................18 About Lutron RadioRA..................................18 About ALC.....................................18 ALC Module Types ..................................18 About X-10 ....................................19...
- Page 5 Temperature Alarms ..................................35 Humidity ......................................35 Status......................................35 Configuring HLC Devices ................................36 Configuring HLC Devices using an Omni Console......................36 Configuring HLC Devices using an OmniTouch Touchscreen ....................37 Setup Mode for HLC Devices..............................37 Event Log.......................................39 Show Events .....................................39 Messages......................................40 Show Message ..................................40 Log Message.....................................40 Clear Message...................................41 Say Message .....................................41 Phone Message ..................................41...
- Page 6 All On/Off Event Buttons .................................55 UPB Link Triggers................................56 Alarm Event Buttons.................................56 X-10 Event Buttons...................................56 Miscellaneous Event Buttons..............................57 Message Event Buttons (Pro-Link)............................57 Switch Press Event Buttons (CentraLite)..........................58 Edit Program Command.................................58 Program Control Commands ..............................58 Unit Toggle Command................................59 UPB Blink Command ................................59 Timed Level Command ................................60 Program Security Commands ..............................60 Program Button Commands..............................60...
- Page 7 Changing Audio Source.................................74 Changing Audio Zone..................................74 Configuring Source and Zone Names ............................74 Programming Audio Commands ..............................75 HAI Hi-Fi Key Press Commands .............................75 Example Programming of Audio Commands ..........................75 UNDERWRITER'S LABORATORIES REQUIREMENTS ..............76 FEDERAL COMMUNICATION COMMISSION NOTICE: ..............77 CANADIAN INDUSTRY CANADA NOTICE..................78 APPENDIX A - SPECIFICATIONS......................
-
Page 9: Introduction

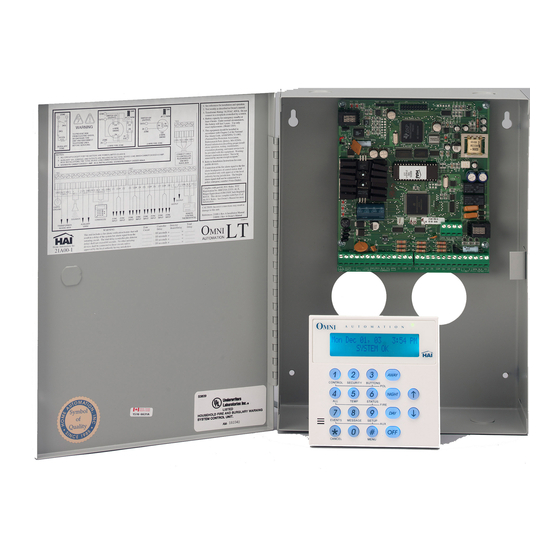

INTRODUCTION Thank you for purchasing your new OmniLT automation system. You are about to experience a new feeling of comfort, convenience, and control. Please take a few moments to become familiar with all of the features of this fine product by reviewing this manual. Please keep this manual on file for future reference. -
Page 10: Overall Description
OVERALL DESCRIPTION Console Operation The console is designed with everything that is necessary for you to program and operate your OmniLT control and security system. Because we feel that it is very important for you to feel comfortable with the operation of your OmniLT, we recommend that you start by becoming familiar with your console. -
Page 11: Normal Top-Level Display
6- UP ARROW The Up Arrow key is used to scroll through menus and lists. The Up Arrow is used to scroll back through a list (for example, if you have already used the down arrow to scroll to an item, the Up Arrow will bring you back to a previous item). 7- CONSOLE LED The Console LED is used to indicate whether the security system is currently armed or disarmed. -
Page 12: Main Menu
When using the arrow keys to scroll through lists of units, zones, buttons, codes, and temperature zones, only the named items are displayed. If no text description has been given to an item, it will be skipped over when scrolling through that list. You can still enter any item number to access it directly, and then scroll up and down among the named items. -
Page 13: Confirmation Beep
OmniLT Maintenance Your OmniLT controller and the consoles are designed to require very little maintenance. For smoke detectors, motion detectors, and other components not manufactured by HAI and follow maintenance procedures outlined by the manufacturer. Consoles can be cleaned using a mild detergent and a soft cloth. -
Page 14: Security System Operation
SECURITY SYSTEM OPERATION Disarming the Security System and Silencing Alarms Before going any further, you should know how to disarm your security system in the event that the alarm sounds. Turning the system OFF disarms the burglar alarm, resets emergency alarms, and silences all sirens and sounders. Press the OFF key. -
Page 15: Using Shortcut Keys
2 = NIGHT The NIGHT mode is used when you are asleep and everyone in your household is at home. In the Night mode, your doors, windows, and non-sleeping area (i.e. downstairs) motion detectors are armed. In the Night mode, there is no entry delay. The alarm system sounder will be activated immediately if any door, window, or non-sleeping area (motion detector) is tripped. -
Page 16: What Happens When You Arm The Security System
What Happens When You Arm the Security System To arm the system into one of the 6 security modes, from the security menu, choose the security mode and press the appropriate key (1 - 6), and then enter your user code number on the console keypad or use one of the Shortcut Keys as described. The console will beep once and the console LED will be set to red The controller will cycle power to reset smoke detectors The top line will display the security mode. -
Page 17: Bypassing Zones
Bypassing Zones 8 = BYPASS You can Bypass a zone that you do not want protected while the system is armed. Bypassing is also the only way that a tamper or panic zone can be disarmed. For example, if there is a liquor closet or gun case on a tamper zone, then you must bypass that zone to gain access to it. -
Page 18: What To Do When You Come Home
What To Do When You Come Home If you enter your home while the system is armed in the Day, Night Delay, Away, or Vacation mode using an entry door: • The console beeper comes on and beeps 4 times per second. •... -
Page 19: Fire Alarm Activated
Fire Alarm Activated When the fire alarm is activated by the smoke/fire detector(s), the alarm responds exactly as described under Burglar Alarm Activated, except: • The console display reads, "FIRE ALARM! ZONE NAME TRIPPED". • The sounder will activate in a 3 pulse temporal pattern to distinguish the fire alarm from the burglar alarm. The fire alarm takes priority over the burglar alarm, however, if a gas alarm is already active, it will not override the gas alarm. -
Page 20: Police Emergency
Police Emergency When the 1 key and the 3 key is pressed simultaneously, the Police Emergency alarm is activated. This alarm operates exactly the same as described for Burglar Alarm Activated except: • The console display indicates: "BURGLARY! - POLICE EMERG TRIPPED". Fire Emergency When the 4 key and the 6 key is pressed simultaneously, the Fire Emergency alarm is activated. -
Page 21: Trouble Indications
Trouble Indications The OmniLT constantly monitors the alarm zones and several internal matters and will alert you if it detects trouble. The particular trouble is indicated on the bottom line of the display and a trouble signal is given by beeping the console beeper continuously, 2 beeps per second. -
Page 22: Manager Code
Testing Your System HAI recommends testing your system on a weekly basis to ensure that you are fully protected. Notify your Central Station that you intend to test the system. To test the siren, press the 1 and 3 keys simultaneously. -
Page 23: Control
X-10, X-10 Pro, Leviton, PCS, ACT, Lightolier, and compatible modules for lights and small appliances. • HAI Communicating Thermostats for controlling Heating, Ventilation, and Air Conditioning Systems. • Programmable Energy Saver Modules (PESM) for central heating and air conditioning systems. -
Page 24: Hai Lighting Control (Hlc) Format
9-16). Each room can consist of a maximum of 8 HLC devices, configured as follows: Up to 7 HAI UPB™ Wall Switches, Dimmers, and/or Modules (for controlling up to 7 lighting loads in a room or area) 1 or more Room Controllers (set a scene in a room, turn the room on and off, and dim and brighten the room) -
Page 25: About House Controllers
When all of the lighting loads in a room are turned off, the “Off” indicator is illuminated. If any of the lighting loads in a room are turned on at an HAI UPB™ Wall Switch or Dimmer, the “On” indicator will illuminate and the “Off”... -
Page 26: About Centralite
The first unit number in each room (i.e. 1 and 9) is reserved for controlling the room. The name for this unit should reflect the room name (e.g. Kitchen, Great Room, Theater, etc.). Vizia RF or Z-Wave lighting devices cannot be associated with these unit numbers. -
Page 27: About X-10
Lightolier Compose, UPB (open UPB format where you can use the programming capability in the OmniLT controller to communicate with the UPB network), Lutron RadioRA, CentraLite, or HAI Lighting Control (HLC). Only one House Code can be configured on OmniLT. -
Page 28: Controlling Units
When the scene command is transmitted (either using a Room Controller or by the OmniLT controller), each HLC device in the specified room will brighten or fade to its preset level for the selected scene. Each lighting scene can also be set or easily changed using the pushbuttons on the HAI UPB™ 6-Button Room Controller, as follows:... -
Page 29: Controlling Individual Lighting Loads In An Hlc Room Or Upb Units
Controlling Individual Lighting Loads in an HLC Room or UPB Units To control individual lighting loads in a room, use the down arrow key to scroll through the list of units. When the unit is displayed, press the ' # ' key. For HLC/UPB lighting loads, the console will display: LR Sconce ↓... -
Page 30: Controlling Individual Lighting Loads In An Vizia Rf Z-Wave Room
Controlling Individual Lighting Loads in an Vizia RF Z-Wave Room To control individual lighting loads in a room, use the down arrow key to scroll through the list of units. When the unit is displayed, press the ' # ' key. For Vizia RF Z-Wave lighting loads, the console will display: LR Sconce ↓... -
Page 31: Controlling Radiora Units
Controlling RadioRA Units Entry Lights ↓ 0=OFF 1=ON 2=DIM 3=BRT Entry Lights ↑ 4=LVL 5=RMP 9=TIM #=STA Press 0 (OFF) to turn the selected unit off Press 1 (ON) to turn the selected unit on. 2 (DIM) does not affect RadioRA units. 3 (BRT) does not affect RadioRA units. -
Page 32: Controlling Compose Units
Before any digits are entered, the ' # ' key may be used to switch between specifying the rate in minutes, seconds, and hours. After you choose between minutes, seconds, and hours, enter the rate (2-99 seconds, 1-99 minutes, or 1-10 hours). Next, enter a number (0-100) to indicate the final lighting level (intensity) desired. -
Page 33: Status Of A Unit
To enter a time, press the 9 (TIM) key. Before any digits are entered, the ' # ' key may be used to switch between minutes, seconds, and hours. After you choose, enter a time (1-99 for seconds & minutes, and 1-18 for hours). Once the time is entered, the control menu is redisplayed with the specified times shown. -
Page 34: All On / Off
All On / Off The All On/Off menu is used to turn all lighting unit numbers on and off. Note: UPB, CentraLite, and RadioRA devices are not affected by the OmniLT “All On” or “All Off” command. To achieve this functionality, we suggest the following: UPB: Program a Link into each device that will respond to an OmniLT “All On”... -
Page 35: Leviton Scene Control
Leviton Scene Control OmniLT supports Leviton Scene Control (a feature found in certain Leviton Switches. There are 16 Scenes that can be set and executed. The Leviton Switches are divided into "lighting groups" of four units each. Each of these lighting groups can be set to four different Scenes. -
Page 36: Scene Off Command
Scene Off Command Once the Scenes have been sent, press the 0 (OFF) key to command the four units in that Scene to turn off. Notes: 1. When sending Scene Commands, the controller must be configured to allow Extended Code transmissions. 2. -
Page 37: Executing Phantom Buttons
Executing Phantom Buttons OmniLT can turn on and turn off each of the 17 possible Phantom Buttons. Phantom Buttons must be pre-programmed into the RS-232 interface or Chronos. Phantom Button 16 is always assigned to “All On” (if the Phantom button is turned on or off) and Phantom Button 17 is always assigned to “All Off”... -
Page 38: Temperature Control
Press the ' # ' key when the desired temperature zone is shown. Press the ' 0 ' key to select all HAI Thermostats. This is a simple way to broadcast the new Heat or Cool setting or change the system mode, fan mode, or hold mode of all HAI thermostats in your system. - Page 39 ' key prior to entering the temperature to make the number negative. The Celsius temperature may also be specified in 0.5 degree steps, if three numeric digits are entered. The third digit adds a .5 to the first two digits, if it is anything other than zero. Enter a leading zero, if necessary. For HAI heat/cool thermostats: Upstairs ↓...
-
Page 40: Programmable Energy Saver Modules (Pesms)
Programmable Energy Saver Modules (PESMs) The PESM is used when you are have any thermostat, other than a HAI Communicating Thermostat, and would like to control your heating and cooling system with the OmniLT system. The PESM is a temperature sensor and control relay in a small enclosure that mounts near your central heating, ventilation, and air conditioning (HVAC) system thermostat. - Page 41 To set up your thermostat for use with the energy saver, set it in the appropriate mode and set the temperature to your preference. NOTE: Your heating and cooling system will always be off if you set your thermostat to Off mode. The PESM cannot turn it back on.
-
Page 42: Freeze Alarms
IMPORTANT NOTES: There is a 3-minute minimum on and off time for PESMs designed to prevent short cycling your HVAC compressor. If the PESM has just turned the HVAC system on or off, it will wait 3 minutes before changing it, even though the display does change. -
Page 43: Temperature Control Of Appliances
Temperature Control of Appliances You can control appliances connected to X-10 and ALC modules (such as a ceiling fan) using the Button feature of the OmniLT. For example, the ceiling fan can be programmed to come on if the temperature goes above the High temperature (a programming example to set this up is shown in the Programming section). -
Page 44: Configuring Hlc Devices
When configuring HLC devices using an Omni console or OmniTouch touchscreen, each device (unit number) must first be assigned a name in the OmniLT controller. HAI recommends that you first configure your OmniLT controller (naming all of the HLC units) using the HAI PC Access Software, and then download the information to the OmniLT controller. -
Page 45: Configuring Hlc Devices Using An Omnitouch Touchscreen
Operation Tap the rocker switch quickly 5 times. The HAI UPB™ Wall Switch or Dimmer will flash the lighting load one time and blink its LED blue to indicate that it is in Setup Mode. Note: The switch will automatically exit Setup mode after 5 minutes. To manually exit Setup mode, tap the switch quickly 2 times. - Page 46 3 = SUN (SUNRISE / SUNSET AUTOMATIC CALCULATION) The system automatically calculates the time of sunrise and sunset each day. From the status menu, press the 3 (SUN) key on the console keypad to display the calculated time of sunrise, sunset, and the outdoor temperature (if outdoor temp sensor installed): Sunrise: 6:00 AM Temp Sunset:...
-
Page 47: Event Log
5 = TEMP (TEMPERATURE) The Temperature Status menu allows you to view and scroll through the status of each Thermostat, PESM, and Temperature Sensor. To enter the Temperature menu, from the Status menu, press the 5 key on the console keypad. The system will display: ↓... -
Page 48: Messages
For trouble restorations, the event log will show the zone name or specific trouble condition and "TRBL RST": 11:57 AM BATTERY TRBL RST The system records each remote access. A remote phone access is when someone calls into the system from an outside phone line. -
Page 49: Clear Message
Clear Message The 3 (CLEAR) key allows you to clear the selected text message, or all text messages from the console's display. TRASH NIGHT ↓ ENTER MESSAGE 0=ALL You may enter the message number followed by the ' # ' key to clear that message, or simply press the down arrow key to scroll through a list of messages. - Page 50 Each message can be up to 15 characters long. To send a longer message, simply program two messages to be sent one after the other. Pro-Link also has the capability to monitor the serial port for incoming text messages. When a text message is received, Pro-Link searches through all 16 messages for a matching message.
-
Page 51: Telephone Control
TELEPHONE CONTROL Telephone Interface Your OmniLT is equipped with a built-in telephone response feature that allows you to control and access the status of your system from any Touch-Tone phone. The OmniLT actually talks to you using a digital recording of an actual human voice, so the sound is incredibly life like. You send commands to the OmniLT using the keys of your Touch-Tone telephone. -
Page 52: Phone Access Denied - Remote Lockout
Phone Access Denied - Remote Lockout The OmniLT has a remote lockout feature to discourage youngsters (and adults who act that way) from trying to access your system. If four invalid codes are entered, the system will hang up and a one-hour lockout period will begin. During the lockout period, the OmniLT will not answer a call after any number of rings, which should discourage the caller. -
Page 53: Recording Your Address
When you are finished with the voice menu, press the 9 (Good-Bye) key. The OmniLT will say, "GOOD-BYE" and hang up. From an in-house phone, the dial tone will return. From a remote phone, you will hear a click as the OmniLT hangs up. It is recommended that you press 9 to terminate a remote call. -
Page 54: Emergency Dial-Out
Delay to allow time for the central station to call the premises. If the HAI Two-Way Audio Module is being used, after the transmission of the alarm to the central station, the operator can talk and listen to people and sounds at the premises. -
Page 55: What You Hear - If Your Omnilt Calls You
What You Hear - If Your OmniLT Calls You When you pick up the phone and say something, the OmniLT will say: (One of the following, depending on type of alarm) BURGLAR ALARM FIRE ALARM AUXILIARY ALARM TEMPERATURE ALARM WATER ALARM GAS ALARM SILENT ALARM ADDRESS: (Your address here) -
Page 56: Setup
SETUP The Setup menu is used to configure operating parameters, program your system to do its automated control and security functions, and give descriptions (names) for all of your zones, units, buttons, codes, temperatures, and messages. To enter the Setup menu, from the top-level display or from the main menu, press the 9 (SETUP) key on the console keypad. Upon entry to the Setup mode, you will first be prompted to enter a security code: SET UP ENTER CODE:... -
Page 57: Duress Code
You can specify the access (on/off) times for the code, this is, the time periods during which the code is valid. CODE X ON TIME: 8:00 AM MTWTF-- #=CHNG CODE X OFF TIME 5:00 PM MTWTF-- #=CHNG The times and days are changed by pressing the ' # ' KEY. Choose the 1 (TIME) key to change the On or Off times. You will be prompted to enter the new time. -
Page 58: Advanced Control Programming (Acp)
Finally, you are prompted to enter the current date: ENTER DATE: MMDDYY Enter the current date. If the current date is February 8, 2006, enter it as “0 2 0 8 0 6”. Advanced Control Programming (ACP) Your OmniLT can be programmed to do automated control and security functions on a time schedule or in response to an event occurring in the system. - Page 59 Selecting the 1 (CTRL) or 5 (TEMP) key will prompt you to specify the desired unit or temperature zone. These can be specified by entering the number, followed by the ' # ' key or by using the arrow keys to scroll through a list of items. UNIT: ↓...
-
Page 60: Delete All Programs
3 = Delete All Programs To delete All automation programs, from the Set Up Program menu, press the 3 (DELETE) key. The display will prompt you to confirm the deletion. DELETE ALL PROGRAMS? 0=NO 1=YES Select 1 (YES) to delete all automation control programs in the system. Select 0 (NO) or press the ' * ' key to return to the Set Up Program menu. -
Page 61: Button And Event Programs
You may also choose to have the program execute up to 120 minutes before or after the time of sunrise or sunset. SUNSET 1=BEFORE 2=AFTER #=AT If the 1(BEFORE) or 2(AFTER) key is selected, you will be prompted to select the amount of minutes: ENTER OFFSET: 0-120 MINUTES When entering a time of day, AM/PM must be specified for the time if the AM/PM format is being used. -
Page 62: Control Unit / Switch Press Event Buttons
Control Unit / Switch Press Event Buttons This Event Button is activated upon the following: • When the specified Unit is turned on or off • When the top-rocker or bottom-rocker is pressed on a UPB, RadioRA, or ALC switch •... -
Page 63: Zone Event Buttons
After the security mode is selected, an additional menu appears which allows you to further specify the button. For example, you would like to activate a button when you arm the system into the 3 (AWAY) mode: WHEN AWAY: 1=DELAY 2=CODE Any of these may be selected alone or in combination. -
Page 64: Upb Link Triggers
Goto” (where the result of the Goto command is “0”) message is received. Using HAI PC Access Software, you can create a program that uses “When Link Fade Stop” as the trigger. When this trigger is used, the program will execute when the “Link Fade Stop” message is received. -
Page 65: Miscellaneous Event Buttons
You are then prompted to enter the X-10 unit code: X-10 UNIT CODE: 1-16 0=ALL Finally, you are prompted to specify the command that activates the event button: WHEN X-10 A1: 0=OFF 1=ON 2=SCENE After specifying the X-10 House Code and X-10 Unit Code, select 0 for Off, 1 for On, or 2 for Scene. "Off"... -
Page 66: Switch Press Event Buttons (Centralite)
Pro-Link determines that a message has been received when: • One or more characters have been received followed by 100 ms of silence • One or more characters followed by a carriage return character are received • One or more characters followed by a line feed character are received It is not necessary to enter the terminating carriage return or line feed character as part of the message name. -
Page 67: Unit Toggle Command
WHEN FRONT FOYER SW1 PRESSED: FRONT FOYER TOGGLE UPB Blink Command Using HAI PC Access Software, you can create programs to blink any UPB device. If you are using HLC, you can not blink an HLC room (i.e. the 1 or 9 unit in an HLC house code);... -
Page 68: Timed Level Command
Timed Level Command Using HAI PC Access Software, you can create programs to set the light level for a specified time. For example, when the Front Door opens and it is dark outside, you can have the Foyer Light illuminate at 50% for 5 minutes with a single program line. -
Page 69: Program Energy Cost
Display Message without Beeping / Without Beeping or Flashing the LED Using HAI PC Access Software, when creating programs to display a message on a console or touchscreen, you can specify if the message will be displayed “With Beep” (the console will beep 5 times), “No Beep” (the console will not beep, but the LED will flash), or “No Beep or LED”... -
Page 70: Enable Or Disable Beeper Programmatically
Enable or Disable Beeper Programmatically Using HAI PC Access Software, you can create programs to either enable or disable the console or touchscreen beeper; individually or all devices. When the beeper is disabled, no audible beeps are emitted from the device, except for alarm conditions. -
Page 71: Program Zone Conditions
Program Zone Conditions Select the 3 (ZONE) key to specify that the program should only execute if a specified security zone is either Secure or Not Ready. The display prompts you for the zone number: ZONE: ↓ ENTER ZONE Enter the zone number followed by the ' # ' key, or use the arrow keys to select the zone. The zone will be displayed and you will be prompted for the state of the zone: IF Front Door: 0=SECURE... -
Page 72: Set Up Dial
Set Up Dial The Set Up Dial menu is used to configure all of the telephone related items for the OmniLT. To enter the Set Up Dial menu, from the Setup menu, press the 4 (DIAL) key. Use the arrows to scroll through the items. For each item, the top line displays a description of the item and its current setting. -
Page 73: My Phone Number
My Phone Number My Phone Number is the phone number that will be announced when the OmniLT dials out in the event of an alarm. It should be set to the phone number of the premises where your system is installed. To enter phone numbers, press the keypad keys 0 - 9. -
Page 74: Dial Order
Dial Order The dial order is the order in which call all will be placed if an Alarm is activated. You can have the system make up to 8 calls in the event of an alarm. You may chose from Dial Out Numbers 1 - 8. You can have the system dial a number twice (or more) which is suggested if you don't have a direct dial number at work, so that your company operator can find you, if you aren't at your desk, and have you alerted for the next call. -
Page 75: Unvacated Premises
Unvacated Premises When Unvacated Premises is set to Yes, if the alarm is armed in Away or Vacation mode and no exit zone is violated during the exit delay (i.e. the premises was not vacated), the system will automatically arm to Day mode at the expiration of the exit delay. To configure Unvacated Premises, from the Set Up menu, press the 5 (ARM) key. -
Page 76: Set Up Miscellaneous
Set up Miscellaneous To configure Miscellaneous items in the system, from the Set Up menu, press the 6 (MISC) key. High Security Mode In High Security Mode, the Master or Manager code is always required to do the following functions: •... -
Page 77: House Code Format
House Code Format The House Code can be configured to use the Standard (Preset Dim Command), Extended Code (Level Command), Lightolier's Compose Mode, UPB (open transmission format), Lutron’s RadioRA transmission format, HAI Lighting (HLC), or CentraLite transmission format. HC 1 FORMAT:... -
Page 78: Time Clocks
2. When the House Code is configured as UPB, RadioRA, or CentraLite, “House Code All On” does not affect the state of the installed devices; however, if this setup item is set to “Yes”, OmniLT will change the status of all units on that House Code to “On”... -
Page 79: Daylight Savings
The value specified for longitude may be adjusted to correct for areas, such as Nova Scotia, where the local time differs from Greenwich Mean Time by a non-hourly amount. The calculated time of sunrise/sunset will change by four minutes for every degree change in longitude. -
Page 80: Set Up Names
Set Up Names The system can be set up to display descriptive names such as "FRONT DOOR", "JOHN'S BEDROOM", or "PORCH LIGHT" for zones, units, buttons, codes, temperatures, and messages. These names are displayed instead of the zone, unit, button, code, temperature, or message number that is normally displayed. -
Page 81: Set Up Address
Set Up Address The final setup item is accomplished over the telephone. This is the address that the system says when it dials out in an emergency. Your voice will be recorded on computer chips in the OmniLT controller and saved to be played back in the emergency message when the system dials out for an alarm. -
Page 82: Audio Control
Once configured by your installer, from any OmniTouch touchscreen, you can control on/off, volume, and muting of any Audio Zone on the HAI Hi-Fi system. Furthermore, you can select the Audio Source (up to 6 Audio Sources) and Audio Zones (up to 8 Audio Zones) on the HAI Hi-Fi audio distribution system. -
Page 83: Programming Audio Commands
Master Bath Programming Audio Commands Using HAI PC Access Software, you can create programs to control Audio Zones, Volume, Audio Sources, and simulate Key Presses on the audio system keypad or remote control. The Audio Zone Command allows you to create programs to select Off, On, Mute Off, and Mute On for individual Audio Zones or for All Audio Zones. -
Page 84: Underwriter's Laboratories Requirements
UNDERWRITER'S LABORATORIES REQUIREMENTS For a complete list of requirements and restrictions when installing the OmniLT panel in a UL Listed system, refer to the Underwriter's Laboratories Requirements section of the Installation Manual (21I00-1). When used in UL Listed Installations, the following items apply: The “High Security Mode”... -
Page 85: Federal Communication Commission Notice
FEDERAL COMMUNICATION COMMISSION NOTICE: This equipment complies with Part 68 of FCC Rules. On the door, inside of the OmniLT enclosure, is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this information to your telephone company. -
Page 86: Canadian Industry Canada Notice
CANADIAN INDUSTRY CANADA NOTICE Notice: The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Industry Canada does not guarantee the equipment will operate to the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. -
Page 87: Appendix A - Specifications
APPENDIX A - SPECIFICATIONS Size: Controller: 9.1W x 12.1H x 3.5D Console: 4.6W x 4.5H x 1.2D Weight: Controller: approx. 4.5 lb. Console: approx. 0.5 lb. Operating 32 - 122 degrees F (0 - 50 degrees C) Ranges: 10 - 95 % relative humidity, non-condensing Power: 120 VAC, 60 Hz, 60 watts Transformer:... -
Page 88: Appendix B - Character Codes
APPENDIX B - CHARACTER CODES CODE CHAR CODE CHAR CODE CHAR CODE CHAR SPACE " < & > ¥ × ¯ à ß... -
Page 89: Appendix C - Voice Descriptions
APPENDIX C - VOICE DESCRIPTIONS CODE DESCRIPTION CODE DESCRIPTION ELEVEN APPLIANCE TWELVE AREA THIRTEEN ATTIC FOURTEEN AUTO FIFTEEN AUXILIARY SIXTEEN AWAY SEVENTEEN BACK EIGHTEEN BASEMENT NINETEEN BATH BATTERY TWENTY THREE BOY'S THIRTY BRIGHTER FOUR BUILDING FORTY BURGLAR FIVE BUTTON FIFTY BYPASS CANCEL SIXTY... - Page 90 CODE DESCRIPTION CODE DESCRIPTION DRIVEWAY LIGHT DURESS LISTEN EAST LIVING EMERGENCY ENERGY MAIN ENTER MASTER ENTRY MEDICAL EVENTS MINUS EXIT MINUTES FAMILY MODE MOTION FIRE NIGHT FOYER NORTH FREEZE FRONT FUSE NUMBER GARAGE NURSERY GIRL'S OFFICE GLASS GOOD-BYE GOTO GUEST OUTDOOR OUTLET HALL...
- Page 91 CODE DESCRIPTION CODE DESCRIPTION PUMP THERMOSTAT READY TIME RECORD TIMED REMOTE REPEAT TROUBLE RESTORE TRIPPED RIGHT UNIT RISE ROOM VACATION SAVER WATER SECONDS WEST SECURE WINDOW SECURITY ZONE SETTING STOCK SHOP UTILITY SIDE EQUIPMENT SILENT COMPUTER SOUTH APARTMENT STAIRS STAR STATUS STEPS STORAGE...
- Page 93 NOTE TO INSTALLER Following installation, this manual shall be left for the homeowner's use. • • New Orleans, LA U S A...
