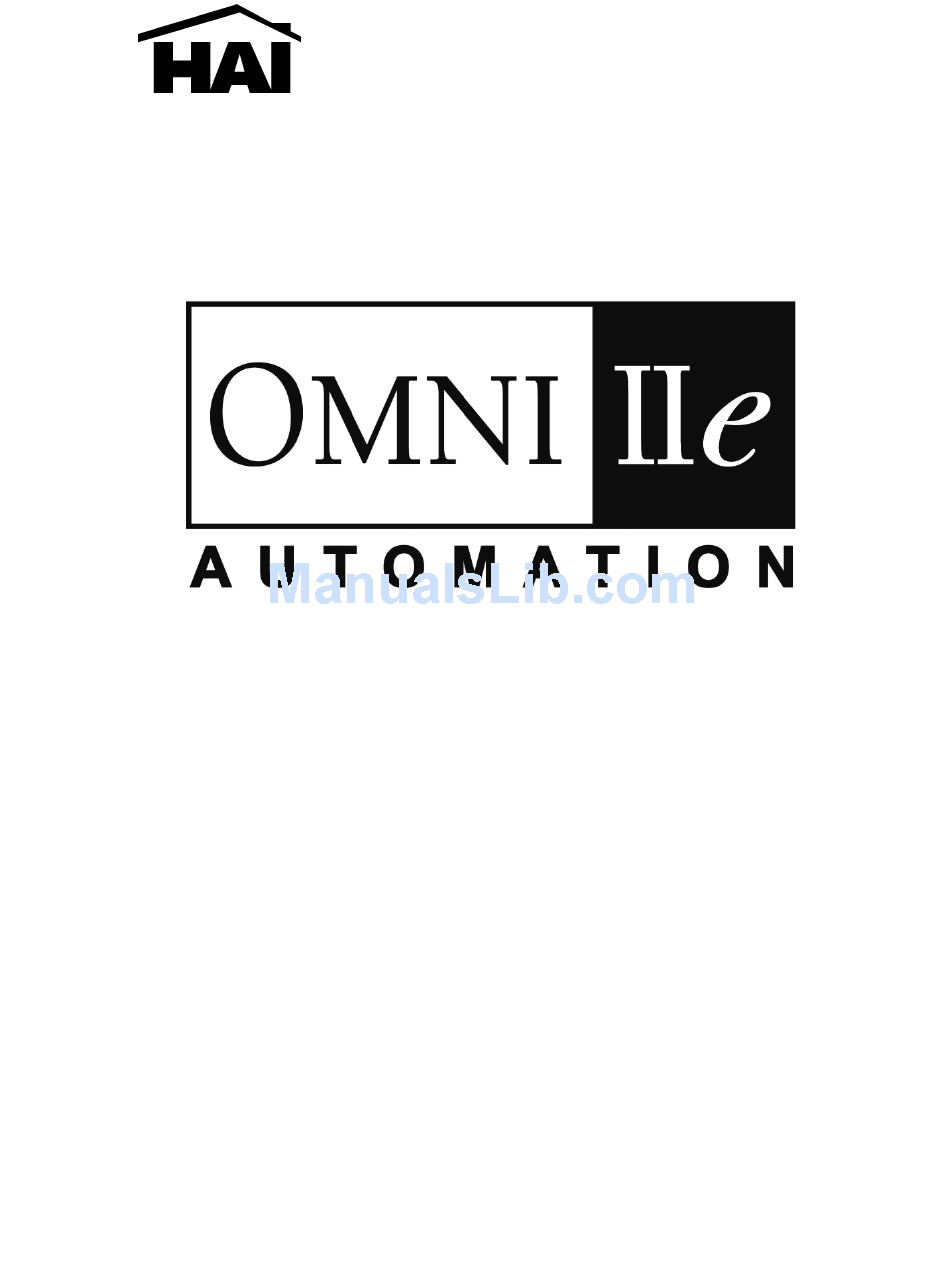

HOME AUTOMATION, INC
Owner's Manual
Includes the SIA CP-01 Control Panel Standard
Features for False Alarm Reduction
Document Number 20R00-50 Rev. 3.2
August, 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNI IIe and is the answer not in the manual?

Questions and answers

Related Manuals for HAI OMNI IIe

Summary of Contents for HAI OMNI IIe

  • Page 1 HOME AUTOMATION, INC Owner's Manual Includes the SIA CP-01 Control Panel Standard Features for False Alarm Reduction Document Number 20R00-50 Rev. 3.2 August, 2009...
  • Page 2 Copyright © 2001-2009 Home Automation, Inc. All Rights Reserved...

  • Page 3: Table Of Contents

    Error Beeps ....................................4 Trouble Beeps.....................................4 Confirmation Beep..................................5 Cancel ......................................5 Time Out.....................................5 Areas ........................................5 Omni IIe Maintenance ..................................5 SECURITY SYSTEM OPERATION ......................6 Disarming the Security System and Silencing Alarms ........................6 Arming the Security System ................................6 Using Shortcut Keys ..................................7 Quick Arm .......................................7 What Happens When You Arm the Security System ........................8...
  • Page 4 Testing Your System..................................16 CONTROL ..............................17 Control Commands ..................................17 About UPB.....................................18 HAI Lighting Control (HLC) Format.............................18 About Rooms ....................................18 About Room Controllers................................18 Room Controller LED Indicators..............................19 About House Controllers ................................19 About Vizia RF Z-Wave ................................19 Vizia RF Z-Wave Format .................................19 About CentraLite ...................................20...
  • Page 5 Digital Dialer ....................................50 Voice Dialer....................................50 How the Omni IIe Voice Dialer Works ............................50 What the Omni IIe Voice Dialer Does............................50 What the Omni IIe Voice Dialer Does............................51 What You Hear - If Your Omni IIe Calls You..........................51 Entering the Code ..................................51...
  • Page 6 PC Access............................... 52 Built-In Ethernet Port..................................52 Controller IP Address, Port Number, and Encryption Key ......................52 Omni IIe Ethernet Connections..............................52 Connecting to Network via PC Access ............................52 Dynamic DNS....................................53 SETUP................................55 Configuration and Advanced Control Programming (ACP) ......................55 Set Up Codes....................................55 Authority Level..................................55...
  • Page 7 Set Up Names ....................................82 Set Up Voice....................................82 Set Up Address ....................................83 AUDIO CONTROL ............................84 Changing Audio Source.................................84 Changing Audio Zone..................................84 Configuring Source and Zone Names ............................84 Programming Audio Commands ..............................85 HAI Hi-Fi Key Press Commands .............................85 Example Programming of Audio Commands ..........................85...
  • Page 8 UNDERWRITER'S LABORATORIES REQUIREMENTS ..............86 FIRE ESCAPE PLANNING................................86 FEDERAL COMMUNICATION COMMISSION NOTICE: ..............87 CANADIAN INDUSTRY CANADA NOTICE..................88 APPENDIX A - DIAL OUT PLANNER..................... 89 INSTRUCTIONS TO CALLED PARTY............................90 APPENDIX B - TEXT DESCRIPTION CHARACTER CODES............91 APPENDIX C - VOICE DESCRIPTION CODES ..................92 APPENDIX D –...

  • Page 9: Introduction

    INTRODUCTION Thank you for purchasing your new Omni IIe automation system. You are about to enjoy a new feeling of security, comfort, convenience, and control. Omni IIe coordinates lighting, heating and air, security, scenes, and messages based on your lifestyle and schedule.

  • Page 10: Overall Description

    The console is designed with everything that is necessary for you to program and operate your Omni IIe control and security system. Because we feel that it is very important for you to feel comfortable with the operation of your Omni IIe, we recommend that you start by becoming familiar with your console.

  • Page 11: Normal Top-Level Display

    4:00 PM SYSTEM OK If one of the doors, windows, motion, or other detector connected to the Omni IIe is open, or has detected motion, the bottom line of the display will say, "ZONE NAME NOT RDY". For example, the display will show, "FRONT DOOR NOT RDY".

  • Page 12: Main Menu

    Trouble Beeps The Omni IIe constantly checks the entire system for proper operation. If trouble is found, the trouble is displayed on the bottom line and the console will beep at the rate of two beeps per second to alert you to the trouble. This feature can be turned off if desired - See Set Up Arming, Beep On Trouble.

  • Page 13: Confirmation Beep

    The console in each area acts as if it were controlling its own Omni IIe system. Each area is assigned, by your installer, a group of zones, control units, macro buttons, messages, and thermostats. These items can only be controlled where they have been assigned.

  • Page 14: Security System Operation

    SECURITY SYSTEM OPERATION Disarming the Security System and Silencing Alarms Before going any further, you should know how to disarm your security system in the event that the alarm sounds. Turning the system OFF disarms the burglar alarm, resets emergency alarms, and silences all sirens and sounders. Press the OFF key.

  • Page 15: Using Shortcut Keys

    The programmed Exit Delay is __________ seconds. Quick Arm For extra convenience, the Omni IIe can be armed by simply pressing the DAY, NIGHT, or AWAY button twice, eliminating the need to enter the code. To quick arm the system in the Away mode, from the top-level display, press:...

  • Page 16: What Happens When You Arm The Security System

    What Happens When You Arm the Security System To arm the system into one of the 6 security modes, from the security menu, choose the security mode and press the appropriate key (1 - 6), and then enter your user code number on the console keypad or use one of the Shortcut Keys as described. The console will beep once and the console LED will be set to red The controller will cycle power to reset smoke detectors The top line will display the security mode.

  • Page 17: Bypassing Zones

    If a fire zone is bypassed, the console will continue to beep until that zone is restored - See Restoring Zones. Auto-Bypass In order to prevent the alarm from sounding unexpectedly if a window or door is open when the system is armed, the Omni IIe will automatically bypass the zone if it is opened when the system is armed.

  • Page 18: What To Do When You Come Home

    If enabled, the system waits the Dial Out Delay (15-45 seconds), and then if programmed, the in-house phones are seized (disconnected) and the Omni IIe begins to dial out. There is a communicator delay (Dial Out Delay) of 30 seconds in this control panel. It can be removed, or it can be increased up to 45 seconds, at your option by consulting with your installer.

  • Page 19: Fire Alarm Activated

    Fire Alarm Activated When the fire alarm is activated by the smoke/fire detector(s), the alarm responds exactly as described under Burglar Alarm Activated, except: • The console display reads, "FIRE ALARM! ZONE NAME TRIPPED". • The sounder will activate in a 3 pulse temporal pattern to distinguish the fire alarm from the burglar alarm. The fire alarm takes priority over the burglar alarm, however, if a gas alarm is already active, it will not override the gas alarm.

  • Page 20: Police Emergency

    Police Emergency When the 1 key and the 3 key is pressed simultaneously, the Police Emergency alarm is activated. This alarm operates exactly the same as described for Burglar Alarm Activated except: • The console display indicates: "BURGLARY! - POLICE EMERG TRIPPED". •...

  • Page 21: Trouble Indications

    Codes There are 16 user codes that you may assign to users of the system. All Omni IIe codes are 4 digits in length. A code can be any number from 0001 to 9999. Each user should be assigned a security code with an authority level, areas that can be accessed (if area arming is used), and times and days in which the code will be valid.

  • Page 22: Manager Code

    If you have a code that is only valid in Area 1, you will not be able to disarm or arm Area 2. If you are in Area 1 and wish to disarm the security system in Area 2, Omni IIe will allow you to disarm Area 2 from the console in Area 1 if you have a Master code or a code that is valid for both areas.
  • Page 23 If the ' 0 ' (ALL) key had been selected, the display will show: DISARM ALL AREAS ENTER CODE: #=AREA As the four-digit code is entered, "X" characters are echoed after the "ENTER CODE:" prompt. If the Master code or a valid code is entered, the console will beep one time and Area 2 will be disarmed. Even if Auto Bypass is enabled, the system will not arm another area if any zones in that area are not ready.

  • Page 24: Testing Your System

    The Battery reading should be over 200 - See Status \ Test. Pick up an inside phone and press the # key. When the menu is spoken, press 8, Then 3. The Omni IIe should say "ADDRESS IS: "and play your name and address. If it does, the telephone dialer, telephone access and telephone control systems are all working correctly.

  • Page 25: Control

    Control Commands The control features of the Omni IIe make it easy and convenient to control almost any light or appliance from the console or over the telephone. You may also have your heating and air conditioning (HVAC) under control of the system, which will allow you to save energy dollars by setting the temperature appropriately when you are home, asleep, or away.

  • Page 26: About Upb

    HLC format is a defined structure for configuring, programming, and operating all the HLC lighting devices in your home. Each “House Code” that is configured to use the HLC format consists of 2 rooms with up to 8 HLC devices in each room. Omni IIe supports up to 8 rooms of HLC lighting.

  • Page 27: Room Controller Led Indicators

    When “Status Tracking” is enabled (this is the default setting), Omni IIe keeps track of the exact status of each unit even when a lighting scene is initiated by the Room Controller. Room Controllers also keep track of when individual switches in a room are turned on and off.

  • Page 28: About Centralite

    (i.e. Units 2-8). Using a console, touchscreen, or other interface to Omni IIe, the room can be turned off (all loads in the group are turned off), turned on (all loads in the group are turned on), or set to one of 4 lighting scenes (A-D).

  • Page 29: About Alc

    ALC signal wiring to ALC Switch Modules. ALC Switches communicate with the Omni IIe over low voltage signal wire. They are two-way devices, so the controller always knows the actual status of the switch.

  • Page 30: Unit Numbers

    The control menu is used when controlling lights and appliances. To enter the control menu, from the top-level display or from the main menu, press the 1 (CTRL) key on the console keypad. Omni IIe will automatically display the first named item in that list.

  • Page 31: Configuring Lighting Scenes In An Hlc Room

    • Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18 hours. Press # (STA) to see the exact status of a UPB device. When the ' # ' key is pressed, Omni IIe sends a “Status Request” message to the selected device for its current state. The exact state is then displayed.

  • Page 32: Controlling Vizia Rf Z-Wave

    The only exception is for additional push button controllers. If you have assigned a Node ID to a Unit, but do not name it, the Omni IIe will interpret that as a push button controller, so Z-Wave messages from that push button controller will not be ignored.

  • Page 33: Controlling Centralite Units

    Note: When a RadioRA device transmits a signal (i.e. Switch or Dimmer is turned on or off locally, Mater Control button is pressed, or Phantom Button is executed), Omni IIe will automatically update the status of each affected device. Page 25...

  • Page 34: Controlling Alc Or X-10 Units

    Controlling ALC or X-10 Units Entry Lights ↓ 0=OFF 1=ON 2=DIM 3=BRT Entry Lights ↑ 4=LVL 5=RMP 9=TIM #=STA Press 0 (OFF) to turn the selected unit off. Press 1 (ON) to turn the selected unit on. Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level). Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).

  • Page 35: Controlling Compose Units

    Controlling Compose Units Entry Lights ↓ 0=OFF 1=ON 2=DIM 3=BRT Entry Lights ↑ 4=SCN 9=TIM #=STA Press 0 (OFF) to turn the selected unit off. Press 1 (ON) to turn the selected unit on. Press 2 (DIM) to dim the selected unit (1-9 steps, each step is 10% from its current level). Press 3 (BRT) to brighten the selected unit (1-9 steps, each step is 10% from its current level).

  • Page 36: Status Of A Unit

    Controlling Outputs The Omni IIe has eight outputs that can be used to switch relays. Outputs 1-8 are controlled as Unit Numbers 65-72, respectively. If the Interior Horn is configured as a "General Purpose" output, Unit Number 73 is used to control the output. If the Exterior Horn is configured as a "General Purpose"...

  • Page 37: All On / Off

    The All On/Off menu is used to turn all unit numbers in the specified House Codes on and off. Note: UPB, CentraLite, and RadioRA devices are not affected by the Omni IIe “All On” or “All Off” command. To achieve this functionality, we suggest the following: UPB: Program a Link into each device that will respond to an Omni IIe “All On”...

  • Page 38: Leviton Scene Control

    Leviton Scene Control Omni IIe supports Leviton Scene Control (a feature found in certain Leviton Switches). There are 64 Scenes that can be set and executed. The Leviton Switches are divided into "lighting groups" of four units each. Each of these lighting groups can be set to four different Scenes.

  • Page 39: Scene Off Command

    A special UPB command called “Link Off” (deactivate) is used to command all of the devices that have the same Link to go to 0% at their preset fade rate. For instance, in our “All On” and “All Off” example, when “Link 50 Off” is transmitted by Omni IIe, each Wall Switch with Link 50 will go to 0% to achieve the “All Off”...

  • Page 40: Executing Phantom Buttons

    Buttons A powerful feature of the Omni IIe is the ability to program Buttons. A Button (also known as macro) is a number on the keypad that is programmed to execute a series of commands when it is pressed. Buttons are used to program functions that are specific to your home and lifestyle.

  • Page 41: Temperature Control

    Press the ' # ' key when the desired temperature zone is shown. Press the ' 0 ' key to select all HAI Thermostats. This is a simple way to broadcast the new Heat or Cool setting or change the system mode, fan mode, or hold mode of all HAI thermostats in your system.
  • Page 42 ' # ' key prior to entering the temperature to make the number negative. The Celsius temperature may also be specified in 0.5 degree steps, if three numeric digits are entered. The third digit adds a .5 to the first two digits, if it is anything other than zero. Enter a leading zero, if necessary. For HAI heat/cool thermostats: Upstairs ↓...

  • Page 43: Programmable Energy Saver Modules (Pesms)

    (HVAC) system thermostat. The PESM allows the Omni IIe to read the temperature of the area that the HVAC system controls. When you are away or asleep, the PESM can be set to allow the temperature to drift higher or lower to reduce the operating time, hence saving energy dollars.
  • Page 44 Control actions for temperature sensors: • Set low setpoint • Set high setpoint To enter the temperature menu, from the top-level display or from the main menu, press the 5 (TEMP) key on the console keypad. You will be prompted with the first named temperature zone (i.e. Upstairs). The temperature zone can be specified by entering the temperature zone number followed by the ' # ' key, or by pressing the arrow keys to scroll through the list of temperature zones.

  • Page 45: Freeze Alarms

    Temperature Control of Appliances You can control appliances (such as a ceiling fan) using Advanced Control Programming (ACP) of the Omni IIe. For example, the ceiling fan can be programmed to come on if the temperature goes above the High temperature.

  • Page 46: Temperature Alarms

    Temperature Alarms Temperature sensors can be used to signal that a temperature (in a special room, like a greenhouse or wine cooler) has gotten too high or too low. If the temperature in this zone goes above the High setpoint or below the Low setpoint, the console beeper is activated (inside and outside sirens are not activated) and the central station and/or voice dialer is called.

  • Page 47: Configuring Hlc Devices

    When configuring HLC devices using an Omni console or OmniTouch touchscreen, each device (unit number) must first be assigned a name in the Omni IIe controller. HAI recommends that you first configure your Omni IIe controller (naming all of the HLC units) using the HAI PC Access Software, and then download the information to the Omni IIe controller.

  • Page 48: Setup Mode For Hlc Devices

    Operation Tap the rocker switch quickly 5 times. The HAI UPB™ Wall Switch or Dimmer will flash the lighting load one time and blink its LED blue to indicate that it is in Setup Mode. Note: The switch will automatically exit Setup mode after 5 minutes. To manually exit Setup mode, tap the switch quickly 2 times.
  • Page 49 ONHK - ON HOOK OFFHK - OFF HOOK RING - RINGING DEAD - DEAD PHONE LINE The second part shows how the Omni IIe is currently using the phone line: IDLE - NOT USING THE PHONE LINE LOCAL - LOCAL ACCESS...

  • Page 50: Event Log

    REM ACCESS An event is logged after three unsuccessful attempts are made to log into the system from a remote phone, the Omni IIe will lock out remote telephone access for 1 hour to discourage any further attempts to access the system - See Telephone Control.

  • Page 51: Messages

    Say Message Note: To Say a message, the HAI Two-Way Audio Module (with a speaker) must be installed. The 4 (SAY) key allows the controller to say the selected voice message over a speaker. This voice message can be an audible reminder of special events and occasions.

  • Page 52: Phone Message

    64 messages for a matching message. If one is found, the Program Command (macro) corresponding to the matching message is activated. When receiving an ASCII message that is over 15 characters, Omni IIe only processes the last 15 characters of the message. Pro-Link determines that a message has been received when: •...

  • Page 53: Telephone Control

    In-House Phones Each time you pick up your telephone at home, the Omni IIe will also pick up the line and listen for a # (pound) key. If Omni IIe does not hear the # key within 5 seconds, it hangs up and does not listen in again until the next time you pick up your phone. If the Omni IIe hears any key other than the # key while it is listening in, it disconnects itself immediately.

  • Page 54: Phone Access Denied - Remote Lockout

    So that the Omni IIe does not tie up your phone, there is a 10 to 15 second time-out that starts after the Omni IIe stops talking. If it does not hear any numbers from your phone in 10 to 15 seconds after it stops talking, the Omni IIe will hang up. If you are on a remote phone and the Omni IIe hangs up, you must call the Omni IIe again.

  • Page 55: Control

    When bypassing and restoring a zone, if voice descriptions have been programmed, after a three-second delay, the system will begin reading from the list of zones. If the ' # ' key is pressed, Omni IIe will read the next three descriptions (if programmed).

  • Page 56: Status

    Press 7 from the MAIN MENU to get to the EVENT menu. The Omni IIe will read the 3 latest events. Press the ' 7 ' key for Omni IIe to read 3 more events, or ' * ' to cancel.

  • Page 57: Phone

    The Omni IIe will say, "GOOD-BYE" and hang up. From an in-house phone, the dial tone will return. From a remote phone, you will hear a click as the Omni IIe hangs up. It is recommended that you press 9 to terminate a remote call. If you don't, the Omni IIe will hang up anyway after about 15 seconds.

  • Page 58: Emergency Dial-Out

    What the Omni IIe Voice Dialer Does When an alarm is activated, the Omni IIe will wait the Dial Out Delay. If your system is monitored by a central station, it will be notified first. Then the voice dialer will dial out to the numbers as described above.

  • Page 59: What The Omni Iie Voice Dialer Does

    What the Omni IIe Voice Dialer Does When an alarm is activated, the Omni IIe will wait the Dial Out Delay. If your system is monitored by a central station, it will be notified first. Then the voice dialer will dial out to the numbers as described above.

  • Page 60: Pc Access

    Omni IIe is capable of communicating with an IBM compatible personal computer (PC). The PC can be local (in-house) or remote. The PC must be equipped with a modem or serial port and running PC Access software. The Omni IIe has a built-in modem and can be accessed over the telephone or over a direct serial connection (RS-232/RS-485 through either a built-in or optional serial interface module).

  • Page 61: Dynamic Dns

    (the router/switch) in the local network. This allows you to locate and connect to the Omni IIe controller without having a computer on the local network powered up and running.
  • Page 62 To connect to an Omni IIe controller from the Internet using HAI PC Access, under Configure >> Network enter the public IP address: To connect to an Omni IIe controller on a local network using HAI PC Access, (i.e. 134.42.112.8) under Configure >> Network enter the controller’s IP address:...

  • Page 63: Setup

    Set Up Codes Omni IIe has 16 user codes that you may assign to users of the system. All Omni IIe security codes are 4 digits in length (0001 to 9999) and must be unique. The controller will not allow the duplication of any user code including the Duress Code.

  • Page 64: Access Areas

    If you are forced to disarm the system against your will by an intruder, disarm it as you normally would, but use the Duress Code instead of your normal code. The system will disarm normally. No sirens will sound, no lights will flash, but the Omni IIe will perform a silent dial out and say that this is a silent alarm.

  • Page 65: Advanced Control Programming (Acp)

    This item is used to correctly calculate the times for sunrise and sunset. You are only asked this question when you set the time. Once the time is set, Omni IIe will automatically adjust the "time of day" each time daylight savings time begins and ends.

  • Page 66: Add Programs

    1 = Add Programs The 1 (ADD) key is used to add new automation programs to the system. When you press the 1 (ADD) key, the Edit Program menu is displayed which allows the various parts of a program to be specified - See Edit Program. You may edit each part of the program as specified under Edit Program.

  • Page 67: Delete All Programs

    The first program is displayed once the down arrow is pressed. The top line displays the time or button/event that activates the program and any condition that must be true for the program to activate. The bottom line shows the command to execute when the program is activated.

  • Page 68: Edit Programs When

    Edit Programs When Selecting the 1 (WHEN) key, from the Edit Program menu, allows the time or button/event that activates the program to be changed. The display shows: EDIT WHEN 1=TIMED 2=BUTTON Times Programs Selecting 1 (TIMED) sets the program to be activated at a specific time of day. You are prompted to enter the time and date or days of week.

  • Page 69: Button And Event Programs

    Button and Event Programs Selecting 2 (BUTTON), from the "Edit When" menu, sets up a program to be activated when a macro button is executed or an event occurs. The user is prompted to specify the button/event that activates the program: BUTTON: ↓...

  • Page 70: Security Mode Event Buttons

    Corresponding Switch Table UPB 6-Button UPB 8-Button RadioRA ALC 4-Button StarLite Switch Omni IIe Keypad Keypad Master Control Keypad On Button 1 or E Off Button 2 or F 3 or G 4 or H 5 or I 6 or J...

  • Page 71: Zone Event Buttons

    Selecting 3 (AREA) allows you to specify that the event button is activated only when the specified area is armed or disarmed. You will be prompted to enter the area: AREA: ↓ ENTER AREA 0=ALL The area number should be entered followed by the ' # ' key, or the arrow keys may be used to scroll through a list of areas. WHEN C1 A1 AWAY: 1=DELAY 2=CODE 3=AREA...

  • Page 72: Upb Link Event Buttons

    Goto” (where the result of the Goto command is “0”) message is received. Using HAI PC Access Software, you can create a program that uses “When Link Fade Stop” as the trigger. When this trigger is used, the program will execute when the “Link Fade Stop” message is received.

  • Page 73: Miscellaneous Event Buttons

    "Off" events will be activated whenever the selected device is turned off. "On" events will be activated whenever the selected device is turned on. "Scene" events will be activated whenever the selected device is set to the specified scene. "On" events will also be activated whenever the selected device is set to a scene other than off.

  • Page 74: Switch Press Event Buttons (Centralite)

    Switch Press Event Buttons (CentraLite) When a button is pressed on a CentraLite keypad, the "When Switch" program is activated. Pressing the 9 (SWITCH) key allows you to select the "When Command" for a switch pressed activated event. You are first prompted to enter the switch number: SWITCH NUMBER: ↓...

  • Page 75: Unit Toggle Command

    WHEN LINK 1 ON: Porch Light STATUS When “Link 1 On” is received on the UPB network, Omni IIe sends a status request message to the UPB Wall Switch (named Porch Light) to acquire its current status. This “Status Request” program is particularly beneficial to keep the current state of UPB devices that are altered by a “lighting scene”...

  • Page 76: Program Security Commands

    Press the ' # ' key first to specify all areas. Program Video Commands Using HAI PC Access Software, you can create programs to display a camera automatically on an OmniTouch with Video touchscreen when an event occurs.

  • Page 77: Raise Or Lower Temperature Command

    Display Message without Beeping / Without Beeping or Flashing the LED Using HAI PC Access Software, when creating programs to display a message on a console or touchscreen, you can specify if the message will be displayed “With Beep” (the console will beep 5 times), “No Beep” (the console will not beep, but the LED will flash), or “No Beep or LED”...

  • Page 78: Beep Command

    Beep Command Using HAI PC Access Software, you can create programs to beep a console (or touchscreen) or all consoles (or touchscreens). You can program the console(s) to beep once per second indefinitely, to turn off a previous “beeper on” command, or a single beep 1-5 times.

  • Page 79: Program Security Mode Conditions

    Program Security Mode Conditions Press the 2 (SEC) key to specify that the program should only execute if the security system is armed in a particular mode. Select the security mode from the following menu: 0=OFF 1=DAY 2=NIT 3=AWY 4=VAC 5=DYI 6=NTD Next, select whether the system is considered in the specified mode during the exit delay: INCLUDE EXIT DELAY? 0=NO 1=YES...

  • Page 80: Set Up Dial

    Set Up Dial The Set Up Dial menu is used to configure all of the telephone related items for the Omni IIe. To enter the Set Up Dial menu, from the Setup menu, press the 4 (DIAL) key. Use the arrows to scroll through the items. For each item, the top line displays a description of the item and its current setting.

  • Page 81: Rings Before Answer

    DIAL OUT 1 OFF Dial Out Number 1 has two times associated with it, an On and Off time. The Omni IIe will only call this number if the time and days are between the Dial Out 1 On and Dial Out 1 Off times and dates.

  • Page 82: Dial Out Numbers 2-8

    The default for Dial Out 1 On is 12:00 AM MTWTFSS, and the default for Dial Out 1 Off is Never, so that Dial Out Number 1 is always active. The Time that was entered before setting an On or Off time to Never is saved, and will be redisplayed when a day is set in place of Never.

  • Page 83: Unvacated Premises

    "ZONE NOT RDY". If the system is armed and a zone is open when the Exit Delay expires, the alarm will sound. The default for Enable Auto Bypass is No. All On For Alarm This option will instruct Omni IIe to execute an X-10 All On command in the event that any type of alarm occurs. Page 75...

  • Page 84: Beep On Trouble

    Beep On Trouble If the Omni IIe detects any troubles with itself or one of the zones connected to it, it will display a message on the screen and beep the console twice per second, continuously (i.e. beep beep...beep beep...). You can silence this sound by pressing the ' * ' key.

  • Page 85: Console 1-8 Audible Exit Delay

    2. When the House Code is configured as UPB, RadioRA, or CentraLite, “House Code All Off” does not affect the state of the installed devices; however, if this setup item is set to “Yes”, Omni IIe will change the status of all units on that House Code to “Off”...

  • Page 86: Time Clocks

    2. When the House Code is configured as UPB, RadioRA, or CentraLite, “House Code All On” does not affect the state of the installed devices; however, if this setup item is set to “Yes”, Omni IIe will change the status of all units on that House Code to “On”...

  • Page 87: Latitude, Longitude, And Time Zone

    Prime Meridian, and time zone. These items should be set to the proper values for the location where the Omni IIe is installed. The latitude and longitude for a particular location may be obtained from an almanac or map of the area. These values should be entered to the nearest degree.

  • Page 88: Daylight Savings

    Daylight Savings The Omni IIe automatically calculates the day of daylight savings time each year. It also adjusts the "time of day" each time daylight savings time begins and ends. To enable the system to properly calculate daylight savings time, a start month, start weekend, end month, and end weekend is set-up at the factory.

  • Page 89: Controller Port Number

    Controller Port Number The controller’s local network port number identifies the logical channel to the Omni IIe controller. For example, port 80 is used for HTTP traffic; the controller’s local network port number is used for Omni-Link traffic. To view and assign the controller’s local network port number, from the previous Setup item (IP ADDRESS), press the down arrow key ( ↓...

  • Page 90: Set Up Names

    Set Up Voice The Omni IIe can be set up to speak descriptive names such as "FRONT DOOR" for control zones, units, buttons, codes, temperatures, areas, and messages. These names will be spoken over the telephone along with the item number that is normally spoken.

  • Page 91: Set Up Address

    Pick up an inside phone and press the ' # ' key on the telephone within 5 seconds of picking up the phone. The Omni IIe will respond with a menu. Press 8 on the telephone keypad, then 8. The unit will say "ADDRESS IS:" then the Omni IIe will play back the message stored in the Address memory if one has been entered by your installer.

  • Page 92: Audio Control

    The names that are displayed on the OmniTouch touchscreen interface for Audio Source and Audio Zone must be configured in the Omni IIe controller. A name must be given to each Audio Source and Audio Zone to make it available in the respective list box when changing the Audio Source or Audio Zone.

  • Page 93: Programming Audio Commands

    Note: The Volume up and Volume down will raise and lower the volume in the specified Audio Zone by 5%. Example Programming of Audio Commands You can create programs in your Omni IIe to customize your music experience. For example, you can create programs to play your favorite music when you return home and disarm your system.

  • Page 94: Underwriter's Laboratories Requirements

    UNDERWRITER'S LABORATORIES REQUIREMENTS For a complete list of requirements and restrictions when installing the Omni IIe panel in a UL Listed system, refer to the Underwriter's Laboratories Requirements section of the Installation Manual (20I00-50). When used in UL Listed Installations, the following items apply: The “High Security Mode”...

  • Page 95: Federal Communication Commission Notice

    FEDERAL COMMUNICATION COMMISSION NOTICE: This equipment complies with Part 68 of FCC Rules. On the door, inside of the Omni IIe enclosure, is a label that contains, among other information, the FCC registration number and Ringer Equivalence Number (REN) for this equipment. If requested, provide this information to your telephone company.

  • Page 96: Canadian Industry Canada Notice

    IF YOU HAVE TROUBLE WITH YOUR PHONES ...and you suspect that your Omni IIe is causing the trouble, disconnect the Controller from the phone lines by removing the PHONE LINE cable from BOTH THE PROCESSOR BOARD AND THE RJ31X JACK INSIDE THE CONTROLLER ENCLOSURE.

  • Page 97: Appendix A - Dial Out Planner

    APPENDIX A - DIAL OUT PLANNER Use the following dial-out planner to help you set-up the voice dial-out numbers: Omni IIe Voice Dial-Out Planner DIAL OUT NUMBER 1: __________________________________ AREA: _____________ DIAL OUT 1 ON: TIME: _______________ DAYS: _______________ DIAL OUT 1 OFF:...

  • Page 98: Instructions To Called Party

    Dear ___________________________________________________________________ I have programmed my Omni IIe Home Automation system to call you if my alarm is activated. If it is activated, it will call and say: "Emergency... Emergency... The (burglar or fire) alarm has been activated at the following address:...

  • Page 99: Appendix B - Text Description Character Codes

    APPENDIX B - TEXT DESCRIPTION CHARACTER CODES CODE CHAR CODE CHAR CODE CHAR CODE CHAR SPACE " < & > ¥ × ¯ à ß Page 91...

  • Page 100: Appendix C - Voice Description Codes

    APPENDIX C - VOICE DESCRIPTION CODES CODE DESCRIPTION DESCRIPTION DESCRIPTION CODE CODE (ADDRESS MSG) BOARD CURTAIN (BEEP) BOAT DAMPER (MEMO MESSAGE) BOILER DANGER (PAUSE) BOTTOM DATE (SHORT PAUSE) BOUDOIR A. M. BOY'S DEAD ABOVE BREAK DECEMBER AC POWER BREAKFAST DECK ACCESS BRIGHTER DECREASE...
  • Page 101 CODE DESCRIPTION DESCRIPTION DESCRIPTION CODE CODE EXTERIOR HARBOR LOCK FACTORY HAVE LOFT FAILURE HEAT FALL HELLO LOWER FAMILY HELP MACHINE HIGH MAID'S FATHER’S HIGHER MAIL FAULT HOBBY MAIN FEBRUARY HOLD MANAGEMENT FENCE HOLIDAY MANAGER FIFTEEN HOME MARCH FIFTY MASTER FILE HOURS FILTER HOUSE...
  • Page 102 CODE DESCRIPTION DESCRIPTION DESCRIPTION CODE CODE RESIDENCE STEPS RESTORE STOCK RESTRICTED STORAGE ONLINE RIGHT STORE ONLY RISE STUDIO OPEN ROMANTIC STUDY OPTION ROOF SUITE ROOM SUMMER OTHER SUMP SAFE OUTDOOR SAFETY SUNDAY OUTLET SATELLITE SWITCH OUTSIDE SATURDAY SYSTEM OK OVER SAUNA TABLE OVERFLOW...
  • Page 103 CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION VACATION WALK WINDOW VALVE WALKWAY WINE VANITY WAREHOUSE WING VAULT WARNING WINTER WATER WOOD VIDEO WEDNESDAY WORK VISITOR WELCOME TO OMNI YARD VOLUME WELCOME WAITING WEST ZONE Page 95...

  • Page 104: Appendix D - Firmware Updates

    Clipsal C-Bus Format Omni IIe groups devices by “House Code”, which consists of 4 consecutive unit numbers, starting at Unit 1. Each “House Code” can be configured to a different lighting protocol format such as: Standard X-10, Extended X-10, Lightolier Compose, UPB (open UPB format where you can use the programming capability in the Omni IIe controller to communicate with the UPB network), Lutron RadioRA, HAI Lighting Control (HLC), CentraLite, Vizia RF Z-Wave, or Clipsal C-Bus.
  • Page 105 • Timed commands may be from 1-99 seconds, 1-99 minutes or 1-18 hours Press # (STA) to see the status of the device. Note: When a Clipsal C-Bus signal is received over the network, Omni IIe will automatically update the status of the device. Page 97...

  • Page 106: User Settings

    Omni IIe has 10 User Settings which may be used. Once configured by your installer, you can name and assign values to each of the preconfigured User Settings.
  • Page 107 THEN SET WAKE UP TIME TO 8:00AM Enhanced Programming Note: To take advantage of the Enhanced Programming features, programs must be written with HAI PC Access Version 3.0 or later. Enhanced Programming consists of several new features and structures that allow you to take full advantage of the powerful programming capabilities of your Omni IIe controller.
  • Page 108 Conditions can reference properties of units, security status, zones, thermostats, temperature and humidity sensors, time, date, audio, access control, messages, as well as constants and user settings. The condition can be evaluated by just about anything the HAI controller knows about. Units: current state, previous state, timer, and level.
  • Page 109 The current real-time status for heating, cooling, humidifying, and dehumidifying can also be used in automation programming logic. Omnistat2 Features There are several features on Omnistat2 thermostats that are supported by the Omni IIe controller. These features include: Fan Cycle Mode Vacation Hold...
  • Page 110 Time and Date The Omni IIe now sends the current time of day and the date to the Omnistat2. As long as the time and date is correct on the Omni IIe, there is no need to set the time or date on the Omnistat2.
  • Page 111 Automatic Cycling of Switched Power when the System is Disarmed Whenever the Omni IIe security system is disarmed, the controller will cycle power to the SWITCH 12V or a Switched Power Output to reset smoke detectors and other latching devices. In previous versions of controller firmware, the SWITCH 12V or Switched Power Outputs were only cycled with the security system was armed.
  • Page 112 Arming or Disarming of the Security System in the Respective Area Each HAI Access Control Card Reader is assigned to an Area. When a valid card or key tag (a card or key tag that is valid for the current time of day and day of week, that is assigned for the respective reader, and that has arming and disarming privileges for...

  • Page 113: User Setup

    User Setup Each Access Control Card and Key Tag used is assigned to a code in the HAI controller. The Access Control Card or Key Tag is governed by the validation times/days set for the code (i.e. the Access Control Card or Key Tag is only valid when the code is valid).
  • Page 114 Deleting Access Control Cards or Key Tags To delete an Access Control Card or Key Tag that is enrolled in the system, scroll down to the particular “Card Number” menu item, and then press the ' # ' (#=DEL) key. CARD 1 NUMBER: 095 13564 #=DEL...
  • Page 115 Log Access Control Card and Key Tag Activity Each Access Control Card or Key Tag that is enrolled in the system can be configured to log activity whenever the card is presented at a reader, even if the user was denied access. When enabled, the system will log the Access Control Card Reader where the card was presented, the user that presented the card, if the card was accepted or declined, and the time and date in which the card was presented.
  • Page 118 NOTE TO INSTALLER Following installation, this manual shall be left for the homeowner's use. HAI • New Orleans, LA • U S A...
