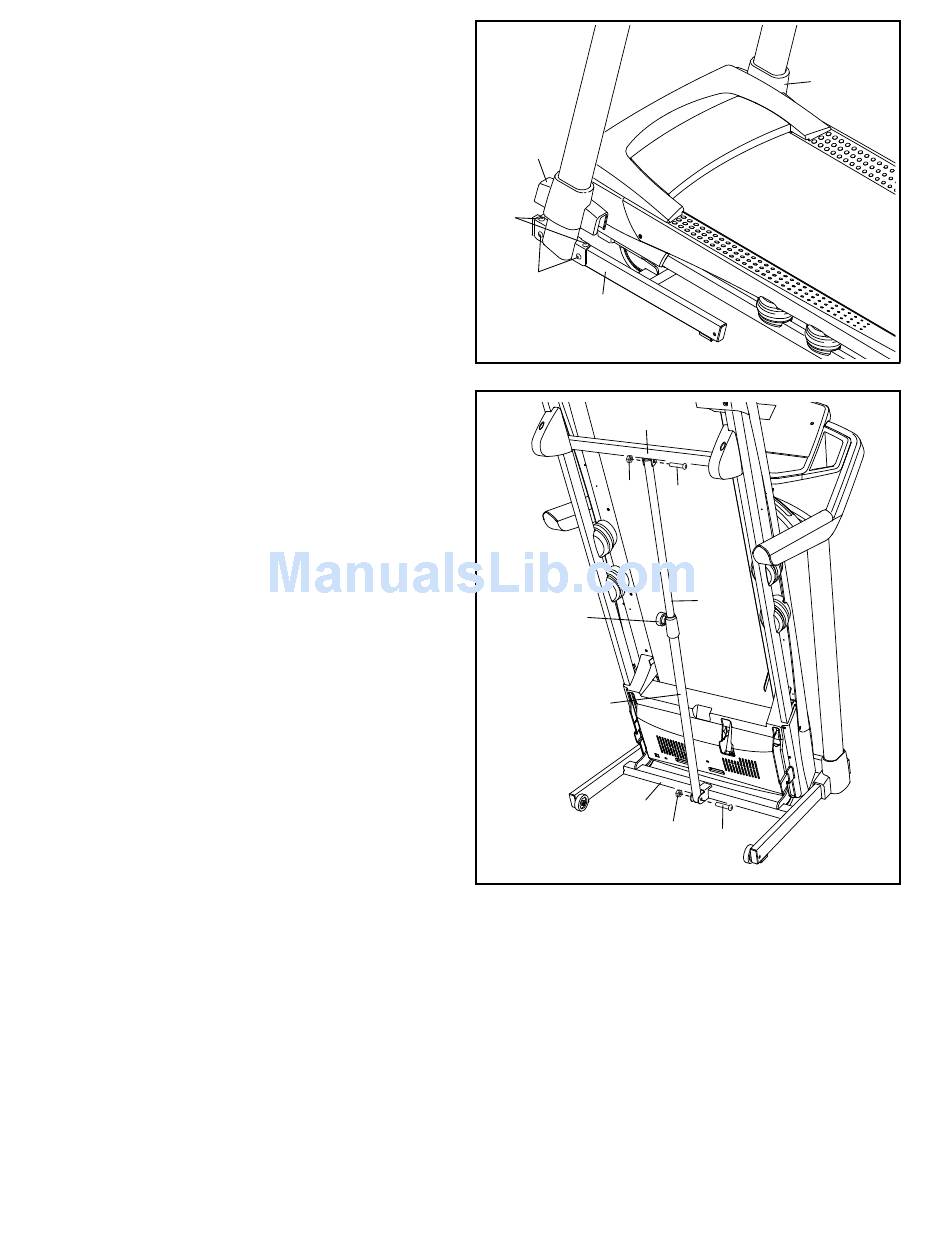

13. Firmly tighten the four 3/8" x 2 3/4" Screws (5)
and then tighten the four 3/8" x 1 1/4" Screws (6)
(only one side is shown).
Press the Left Base Cover (81) and the Right
Base Cover (89) onto the Base (95) until they
snap into place.
14. Raise the Frame (63) to the position shown.
Have a second person hold the Frame until
step 15 is completed.
Orient the Storage Latch (57) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (57) to
the Base (95) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
Attach the upper end of the Storage Latch (57)
to the bracket on the Frame (63) with a 3/8" x
2" Bolt (3) and a 3/8" Nut (12).
