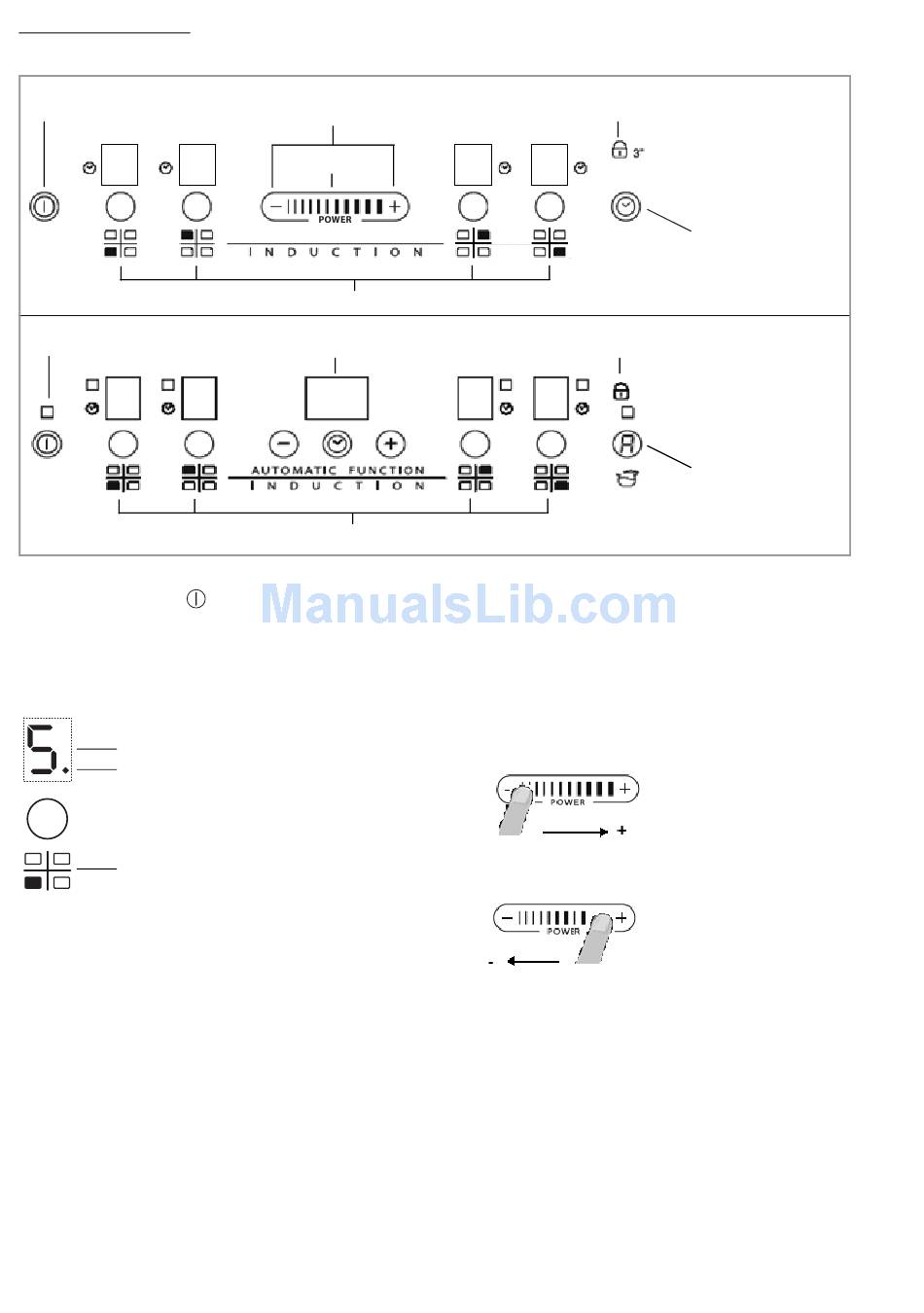

Control Panel Description

Control panel
On/Off
On/Off
Switching the hob ON/OFF
To switch the hob on, press the
off. All the cooking zones are deactivated.
If the hob has been in use, the residual heat indicator "H" remains lit until the cooking zones have cooled down.
If within 10 seconds of switching on, no function is selected, the hob switches off automatically.

Switching on and adjusting cooking zones

Power indicator display
Selected cooking zone indication
Cooking zone positioning
Place the pot on the cooking zone, switching the hob on, activate the required cooking zone by pressing the corresponding circular button "5" appears on the display.
With the Slider (if available) it is possible to select the required power level, from min. 0 to max. 9, or booster "P" if available. To increase the power level, slide your
finger on the slider from left to right several times; to decrease it, slide in the opposite direction. Alternatively the "+" and "–" quick access buttons can be used.

Deactivation of cooking zones

To switch off the cooking zone, press the corresponding button for more than 3 seconds.
The cooking zone switches off and, if still hot, the letter "H" appears on the zone display.

Control panel lock

This function locks the controls to prevent accidental activation of the hob. To activate the control panel lock, switch the hob on and press the Lock function button for three seconds;
an acoustic signal and a luminous indicator near the padlock symbol signal activation. The control panel is locked except for the switching off function. To deactivate the control
lock, repeat the activation procedure. The luminous dot goes off and the hob is active again.
The presence of water, liquid spilled from pots or any objects resting on the button below the symbol can accidentally activate or deactivate the control panel lock.
Quick access
Slider
Cooking zone controls and corresponding display
Timer
Cooking zone controls and corresponding display
button for approx. 2 seconds until the cooking zone displays light up. To switch off, press the same button until the displays switch
Control panel lock
Control panel lock
Slider operation
Increase power level
Decrease power level
EN17
Timer/Lock
function button
Ecobooster/Automatic/Lock
function button
