Installation Guide

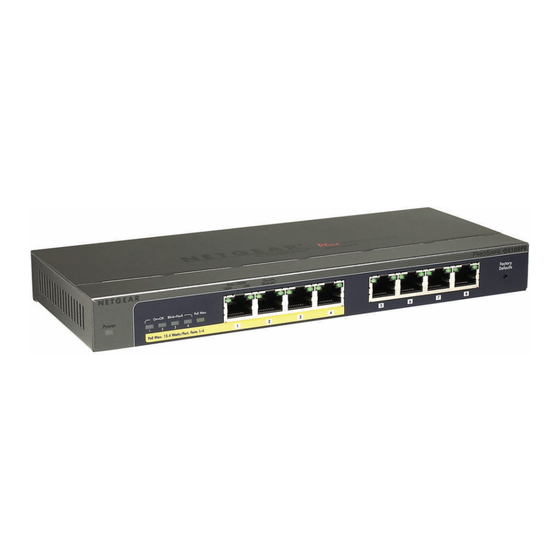

ProSafe Plus 8-Port Gigabit Switch
with 4-Port PoE GS108PE
Step 1. Connect equipment
Computer
Server
GS108PE
Optional router
Step 2. Connect power
Internet
Optional
modem
Step 3. Check status
Power LED
PoE LEDs
On
PoE in use
PoE not provided
Off
(slow blinking)
PoE Max. LED
PoE halted
Less than 7W of PoE
(fast blinking)
power is available
PoE MAX LED was
No PoE use (off)
active in the previous
2 minutes (blinking)
PoE ports are
working normally (off)
Port LEDs
1000 Mbps link
(both LEDs)
100 Mbps link
(left LED)
10 Mbps link
(right LED)
Activity (blinking)
No link (off)
