Installation Guide
ProSafe Plus 24-port 10/100Mbps Switch JFS524E
®

Start Here

Estimated Installation Time: 5–10 minutes

Unpack the Box and Verify the Contents

When you open the box, verify that you received everything. The package includes:
• ProSafe Plus 24-port 10/100Mbps Switch JFS524E
®
• AC power cord
• Rack-mounting screws
• Installation Guide (this document)
• Resource CD (contains switch configuration software)
If you do not have everything listed above, see the support information card for
contact information. If you are missing the support information card, get contact
information at in the Technical Support section.
http://www.NETGEAR.com

Prepare to Install the Switch

Decide where you want to place the switch. Find a flat horizontal surface such as a
table, desk or shelf. The switch comes with rack-mounting screws. You can use the
screws if you want to mount the switch in an equipment rack. Make sure the
selected location is:
• Not in direct sunlight or near a heater or heating vent.
• Not cluttered or crowded. There should be at least 2 inches (5 cm) of clear space
on all sides of the switch.
• Well ventilated (especially if it is in a closet).
Also, you will need one Category 5e (Cat 5e) Ethernet cable with RJ-45 connectors
for each device you want to connect to the switch. Each Ethernet cable must be less
than 328 feet (100 meters).

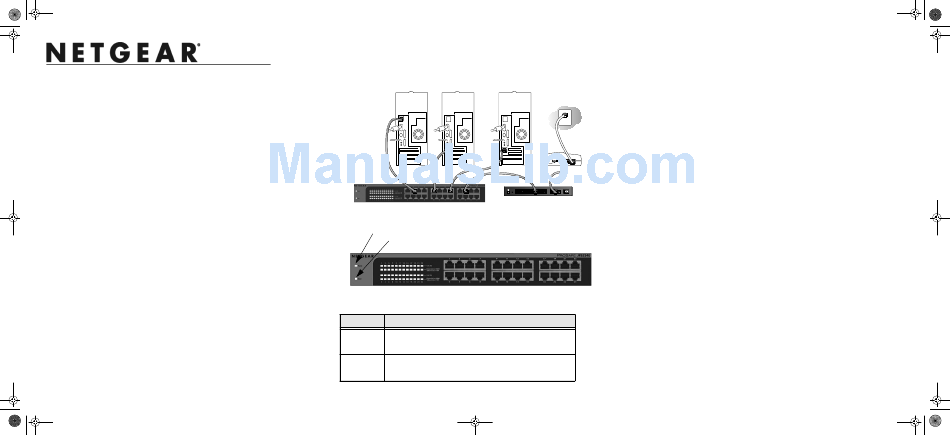

Install the Switch and Connect the Other Devices

1. Place the switch on a flat surface or mount in a rack.
2. For each device, insert one end of an Ethernet cable into the port in the device and
insert the other end into one of the Ethernet ports on the switch.
8
3. Connect the power cord into the back of the switch and then plug the cord to an AC
power source (such as a wall socket or power strip). The Power light should light up.
Power
Reset
4. Check the LEDs to confirm that all connections are correct.
LED Activity
Power • On: Switch has power.
• Off: No power.
RJ-45 ports • Top LED on/Blink: Link/Activity
• Bottom LED Off/Green: 10 Mbps/100Mbps.

Set Up the Switch Configuration Utility

In order to make use of the switch's enhanced features you can install and use a
switch configuration utility. This utility is on the Resource CD shipped with the
switch.
Note: The configuration utility is installed on your PC and is only supported on MS
Windows.

Install the Configuration Utility

To install the ProSafe
1. Insert the Resource CD into a PC connected to the switch.
2. Click on Install ProSafe Plus Utility and follow the prompts to install the
program. The switch configuration utility will be installed in the program
directory of your PC and a ProSafe Plus Utility icon will be placed on your
desktop.
LOCAL
10/100M
7 6 5 4 3 2 1 INTERNET
12VDC 1.2A
OFF ON

Configure the Switch

To configure the switch to use enhanced features:
1. Double click the ProSafe Plus Utility icon. The configuration home screen
displays.
2. The configuration utility displays a list of enhanced switches it discovers on the
local network. Select the switch you want to configure.
3. You will be asked to enter a password. The default is "password".
4. Enter the desired switch configuration. Refer to the ProSafe
Configuration Utility User Guide for a description of enhanced features. The
user guide can be accessed by links on the Help tab of the utility or on the
Resource CD.
Plus Switch Configuration Utility:
®
Plus Switch
®
