GS105E_IG_24Sept12.fm Page 1 Monday, September 24, 2012 1:56 PM
Installation Guide

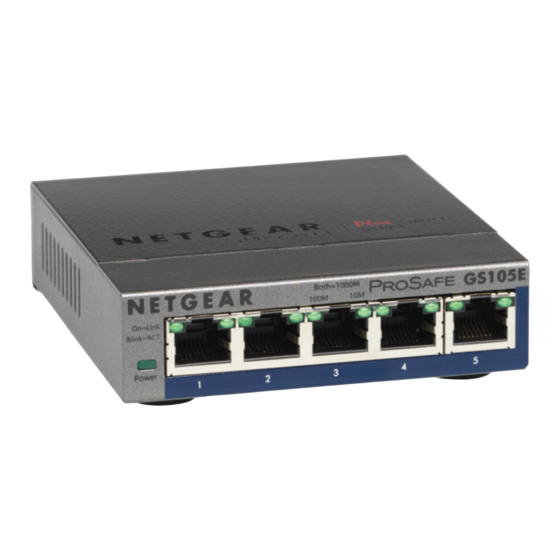

ProSafe Plus 5-Port Gigabit Switch GS105E
Step 1. Connect equipment
Computer
Server
Optional router
GS105E
Step 2. Connect power
Internet
Optional
modem
Step 3. Check status
Port LEDs
Power LED
1000 Mbps link
On
(both LEDs)
Off
100 Mbps link
(left LED
10 Mbps link
(right LED
Activity (blinking)
No link (off)
