Installation

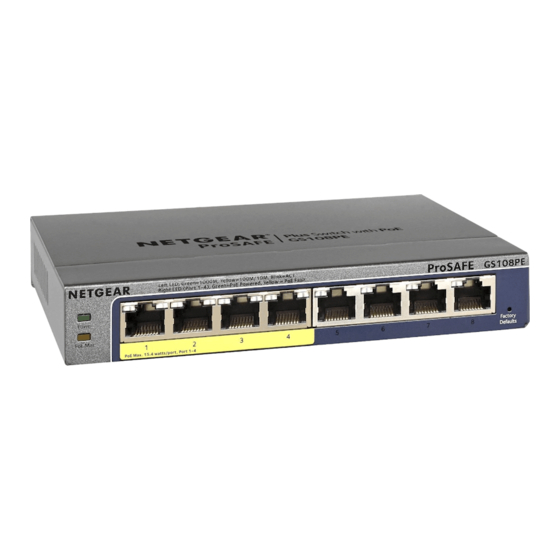

ProSAFE Plus 8-Port Gigabit Switch with
4-Port PoE
GS108PEv3
Step 1. Connect the equipment.
IP Phone
Server
GS108PEv3
Optional router
Step 2. Connect to power.
Internet
Optional modem
Step 3. Check the status.
Power LED
Right PoE LEDs (Ports 1–4)
Left Port LEDs (Ports 1–8)
On
PoE in use
Off
PoE halted
No PoE use (off )
PoE Max. LED
Less than 7W of PoE power is available.
PoE Max. LED was activated in the previous two minutes
(blinking).
PoE ports are working normally (off ).
1000 Mbps
link
10/100 Mbps
Activity
(blinking)
No link (off )
