PS300, ES700, ES900
Elliptical Owner's
Manual
truefitness.com / 800.426.6570 / 1.636.272.7100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True PS300

Summary of Contents for True PS300

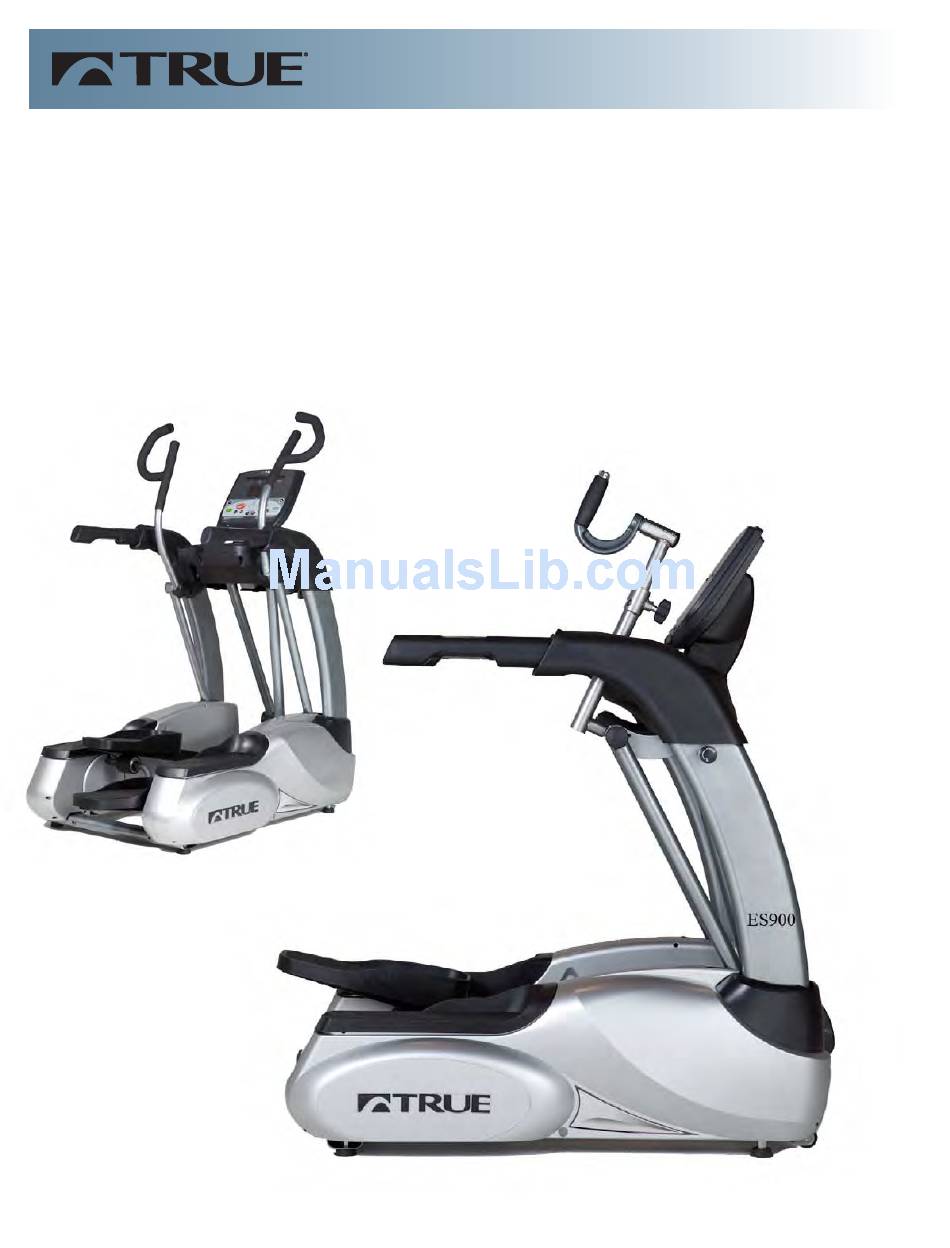

  • Page 1 PS300, ES700, ES900 Elliptical Owner’s Manual truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 2 Frank Trulaske, founder and CEO of TRUE®, has had the same simple philosophy of delivering superior products, service and support for over 30 years. Today, TRUE is the global leader in premium cardio equipment for the commercial and residential markets. Our goal is to be the leader in technology, innovation, performance, safety and style.

  • Page 3: Table Of Contents

    Table of contents Chapter 1: Safety Instructions..........4 Chapter 2: Elliptical Overview..........9 Chapter 3: Display Console..........14 Chapter 4: Programming & Operation......20 Chapter 5: Care & Maintenance.........37 Chapter 6: Troubleshooting..........39 Chapter 7: Additional Information........41 IMPORTANT: All Product shown are prototype actual product delivered may vary. Product specifications, features &...

  • Page 4: Chapter 1: Safety Instructions

    Chapter 1: Safety Instructions Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE SAFETY INSTRUCTIONS These machines (models PS300, ES700 and ES900) are intended for residential use only. CAUTION: Health related injuries may result from incorrect or excessive use of exercise equipment. TRUE STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure or heart disease, is over the age of 45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year.
  • Page 6 • To disconnect, remove power adapter from electrical outlet. • Power adapter requirements for the PS300 are 110V AC input and 9V DC 1.5Amp output, Power adapter requirements for the ES700 and 900 are 110V AC input and 24V DC 7.5Amp output * Note the plug configuration for the power adapter may vary by country.
  • Page 7 Chapter 1: Safety Instructions CAUTION: • Never insert objects into any openings in this product. If an object should drop inside, stop the elliptical, unplug the power adapter from the outlet and carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service.

  • Page 8: Grounding Instructions

    Chapter 1: Safety Instructions GROUNDING INSTRUCTIONS • This product must be grounded. Grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 9: Chapter 2: Elliptical Overview

    Chapter 2: Elliptical Overview Chapter 1: Basic Safety Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 10 Chapter 2: Elliptical Overview PS300 Upper Exercise Arms Keypad + Console Side Rails With Contact Heart Rate Pads Side Steps Footpad truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 11 Chapter 2: Elliptical Overview ES700 Upper Exercise Arms Keypad + Console Side Rails With Contact Heart Rate Pads TRUE Lock Side Steps Footpad truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 12 Chapter 2: Elliptical Overview ES900 Rotating Hand grips Keypad + Console Hand grip Height Adjustment Knob Side Rails With Contact Heart Rate Pads TRUE Lock Side Steps Footpad truefitness.com / 800.426.6570 / 1.636.272.7100...

  • Page 13: Operating Instructions

    Chapter 2: Elliptical Overview ™ TRUE Lock - Exercise Lock Feature The ES700 and ES900 ellipticals include the TRUE Lock. This feature allows users to immobilize the foot pedals. By locking the exercise machine, a user can create a more stable foot pedal when entering and exiting the machine.

  • Page 14: Chapter 3: Display Console

    Chapter 3: Display Console Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 15 Chapter 3: Display Console TRUE Fitness residential ellipticals have several console options. Depending on the console that came with this elliptical, the workouts, programming, and operation of the ellipical may differ. The console options available on these machines are: PS300, ES700 and ES900 Custom Red LED ES700 and ES900 Custom Blue LCD with integrated iPod®...
  • Page 16 Chapter 3: Display Console red led console: PS300 ACCUMULATED WORKOUT HEART RATE OR DISTANCE OR WATTS OF ACCUMULATED RESISTANCE CALORIES ACCUMULATED/REMAINING CURRENT PROGRAM CURRENT RPM OF WORKOUT WORKOUT TIME OR CURRENT PROFILE OR METS (Metabolic Equivalent of Task) WORKLOAD truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 17 Chapter 3: Display Console Red Led Console With Stride Adjust: ES700 and ES900 ACCUMULATED WORKOUT HEART RATE OR DISTANCE OR WATTS OF ACCUMULATED RESISTANCE CALORIES ACCUMULATED/REMAINING CURRENT PROGRAM CURRENT RPM OF WORKOUT WORKOUT TIME OR CURRENT PROFILE OR METS WORKLOAD (Metabolic Equivalent of Task) truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 18 Chapter 3: Display Console blue lcd console: ES700 and ES900 ACCUMULATED WORKOUT TARGET HEART RATE OR DISTANCE OR METS CURRENT HEART RATE (Metabolic Equivalent of Task) iPod TRACK iPod VOLUME ADVANCE CONTROL HEADPHONE Integrated iPod® 30 pin connectivity PLUG-IN ACCUMULATED/REMAINING CURRENT PROGRAM CURRENT RPM OF WORKOUT WORKOUT TIME OR CURRENT...

  • Page 19: Chapter 4: Programming & Operation

    Chapter 4: Programming & Operation Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 20 Chapter 4: Programming & Operation Heart Rate Monitoring: This elliptical can monitor your heart rate using either the chest strap provided with the elliptical or the metal grips on the hand rails (called contact heart rate or CHR pads). A chest strap transmits your heart rate to the elliptical via radio, and the CHR pads connect to a special computer circuit to extract your heart rate.
  • Page 21 Chapter 4: Programming & Operation A Note On Heart Rate Monitoring: The chest strap produces a FM signal that the treadmill reads and registers your heart rate. The accuracy of a reading may be affected when outside interference is present. Contact Heart Rate (chr): The CHR system lets you monitor your heart rate without wearing a strap.
  • Page 22 Chapter 4: Programming & Operation Programed Console Key Functions Red Led: Here is a list of programming options available on your elliptical. Operation may differ depending on the model. For more information on programming and operation please visit www.truefitness.com. Stride length: Red LED Console for models (ES700 and ES900) feature the ability to change the users stride length from 16 to 27 Stride length Adjustments...

  • Page 23: Quick Start

    Chapter 4: Programming & Operation Programed Console Key Functions Red Led Continued: Heart Rate Cruse Control: While in any workout, set your current heart rate as your target heart rate by pressing the HRC CRUISE CONTROL key. Quick Start : Quick Start by pressing the START key.
  • Page 24 Chapter 4: Programming & Operation Preset Workouts Red Led Continued: Cardio 360 Cardio 360 is a cross-training workout that gives you the most exercise for your training time including, lower- body, upper-body and total- body. Use the + or - WORKLOAD keys to adjust Time then press ENTER Use the + or - WORKLOAD keys to adjust Weight then press ENTER Press START to begin program Use the + or - WORKLOAD keys to adjust the workload levels (1-16) at any time during the workout...
  • Page 25 Chapter 4: Programming & Operation Preset Workouts Red Led Continued: Random Workout with series of increasing and decreasing workload changes throughout a workout. Use the + or - WORKLOAD keys to adjust Time then press ENTER Use the + or - WORKLOAD keys to adjust Weight then press ENTER Press START to begin program Use the + or - WORKLOAD keys to adjust the workload levels (1-16) at any time during the workout Sports Intervals...
  • Page 26 Chapter 4: Programming & Operation Programed Console Key Functions Blue Lcd: Here is a list of programming options available on your elliptical. Operation may differ depending on the model. For more information on programming and operation please visit www.truefitness.com. Stride length: Blue LCD Console for models (ES700 and ES900) feature the ability to change the users stride length from 16 to 27 Stride length Adjustments...
  • Page 27 Chapter 4: Programming & Operation Programed Console Key Functions Blue Lcd Continued: Target Heart Rate Workout: Put on a Polar® or compatible transmitter chest strap. Press HRC WORKOUT key then press ENTER. Use the + or - WORKLOAD keys to adjust Time then press ENTER Use the + or - WORKLOAD keys to adjust Age then press ENTER Use the + or - WORKLOAD keys to adjust Target Heart Rate then press ENTER Use the + or - WORKLOAD keys to adjust Weight then press ENTER...
  • Page 28 Chapter 4: Programming & Operation Programed Console Key Functions Blue Lcd Continued: Preset Workouts: Start a Pre-Set workout by pressing the PRESET WORKOUTS key. Press the PRESET WORKOUTS key until the desired program appears on the console then press ENTER. All the Preset workouts are listed below.
  • Page 29 Chapter 4: Programming & Operation Programed Console Key Functions Blue Lcd Continued: Arm Sculptor 360 An intense 10 minute workout that focuses on the upper body using various Cardio 360 exercises. Use the + or - WORKLOAD keys to adjust Weight then press ENTER Press START to begin program Use the + or - WORKLOAD keys to adjust the workload levels (1-16) at any time during the workout Leg Shaper 360...
  • Page 30 Chapter 4: Programming & Operation Programed Console Key Functions Blue Lcd Continued: Rolling Hills Workout with a series of gently changing workloads. Use the + or - WORKLOAD keys to adjust Time then press ENTER Use the + or - WORKLOAD keys to adjust Weight then press ENTER Press START to begin program Use the + or - WORKLOAD keys to adjust the workload levels (1-16) at any time during the workout One Big Hill...

  • Page 31: Chapter 5: Care & Maintenance

    Chapter 5: Care & Maintenance Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...

  • Page 32: Cleaning The Equipment

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour water or spray liquids on any part of the elliptical. Allow the elliptical to dry completely before using. Frequently vacuum the floor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation of the unit.

  • Page 33: Chapter 6: Troubleshooting

    Chapter 6: Troubleshooting Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 34 Q. The console shows an error code or has odd characters. If your display has any error messages on it TRUE Fitness recommends that you contact your local dealer or service provider to arrange a service call. The error codes are there for your protection and we do not recommend that you continue using the unit without consulting a professional.

  • Page 35: Chapter 7: Additional Information

    Chapter 7: Additional Information Chapter 1: Safety Instructions Chapter 2: Elliptical Overview Chapter 3: Display Console Chapter 4: Programming & Operation Chapter 5: Care & Maintenance Chapter 6: Troubleshooting Chapter 7: Additional Information truefitness.com / 800.426.6570 / 1.636.272.7100...
  • Page 36 Residential Limited Warranty Chapter 7: Additional Information ESX Elliptical Advanced Setup Mode Their are may default function in your console that you can change in the setup mode Entering Diagnostics Mode: With the console powered up Press and hold the + WORKLOAD key for 10 seconds or until the console beeps. NOTE: If the sound is turned off no beep will be emitted from the console.
  • Page 37 2. This Limited Warranty applies to the product only while the and necessary maintenance. *TRUE Fitness shall not warrant Product remains in the possession of the original purchaser the performance of the heart rate system on its products, as and is not transferable.
  • Page 38 The PS300 and ES700 elliptical comes with two serial numbers; failure to provide reasonable and necessary maintenance (as one on the base and one on the display console (see diagram referenced in the owner’s manual.)
  • Page 39 Please Note: Failure to register this product will result in no servicing or authorization of parts to be shipped. To mail your warranty information, please fill in the information below and mail to: Service Dept., TRUE Fitness, 865 Hoff Road, St. Louis, MO 63366 (or save postage and register online at www.truefitness.com/support) 2.
  • Page 40 2. This Limited Warranty applies to the product only while the and necessary maintenance. *TRUE Fitness shall not warrant Product remains in the possession of the original purchaser the performance of the heart rate system on its products, as and is not transferable.
  • Page 41 Residential Limited Warranty Residential Limited Warranty ESX Elliptical ES900 Elliptical Save Time and Register Online! Activate Multiple Warranties at www.truefitness.com/support 4. This Limited Warranty does not cover damage or equipment failure resulting from or caused by improper assembly/instal- ELLIPTICAL SERIAL NUMBERS: lation, failure to follow instructions and warnings in owner’s manual, accident, misuse, abuse, unauthorized modification, or The ES900 elliptical comes with two serial numbers;...
  • Page 42 Please Note: Failure to register this product will result in no servicing or authorization of parts to be shipped. To mail your warranty information, please fill in the information below and mail to: Service Dept., TRUE Fitness, 865 Hoff Road, St. Louis, MO 63366 (or save postage and register online at www.truefitness.com/support) 2.
  • Page 43 GET CONNECTED. Chapter 7: Additional Information TRUE MOBILE APP & ONLINE DASHBOARD Stay connected and on track with the NEW TRUE Fitness mobile app and online Dashboard. Available to the iTunes App Store and TrueFitness.com Need to upload a workout? Upload a workout from your USB drive.
  • Page 44 Chapter 7: Additional Information CONTACT INFORMATION TRUE FITNESS SERVICE DEPARTMENT 865 HOFF ROAD ST. LOUIS, MO 63366 1.800.883.8783 HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST. LOUIS, MO 63366 1.800.426.6570 1.636.272.7100...
