Summary of Contents for Bushranger 46TBU6

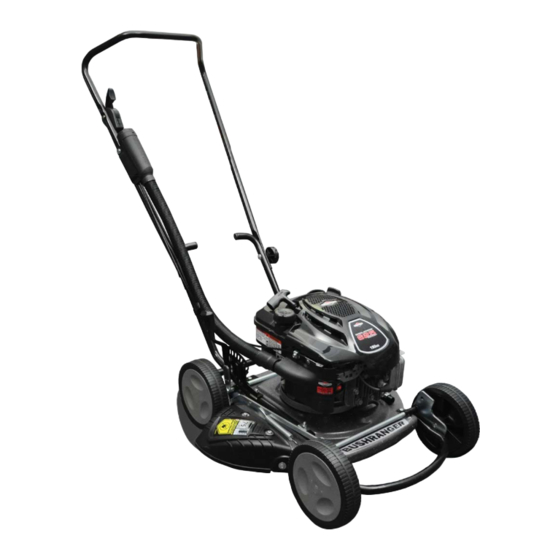

- Page 1 Bushranger 46TBU6 Lawnmower Assembly and Owner’s Manual www.poweruplawncare.com.au WARNING! Read this manual before operating your BUSHRANGER Lawnmower.
-
Page 2: Important Information
Engine must have 600ml off S.A.E. 30 Oil placed in the Sump Before Starting BUSHRANGER BUSHRANGER Dust Cap Bushranger 4 Stroke Briggs & Stratton Mowers Only) Removal of Blue Dust Cap Dispose of dust cap from under fuel cap before initial filling (if fitted) DO NOT REPLACE... -
Page 3: Table Of Contents
Table of Contents Important Notes Unit Details Safety & Handling Safety Instructions Hazards Personal Safety Equipment Assembly Procedures Mastercut Side Chute Mastercut Handle Operation Starting & stoping Maintenance & Care Cleaning Blade Replacement Remote Air Filter Maintenance Replacing Air Filters Maintenance Chart Questions &... -
Page 4: Important Notes
IMPORTANT NOTES Congratulations on your purchase of a top quality Bushranger lawnmower. This instruction manual will aid in the assembly, operation and maintenance of your new lawnmower. Please read carefully to ensure safety and the long life of your product. -
Page 5: Safety Instructions
• Before using the mower, ensure that the blade assembly is not worn or damaged. Always replace worn or damaged blades and bolts in sets to preserve correct balance. Damaged or worn blades and bolts are major hazards. Use genuine Bushranger spare parts only. - Page 6 • Replace worn or faulty mufflers as they adversely affect engine performance and increase emissions. • Bushranger recommends that all maintenance, repair and inspection work be carried out by a Bushranger Authorised Service Centre. • Store the mower in a well ventilated area, away from any naked flames such as those found in hot water heaters.
-
Page 7: Hazards
Hazards The following safety precautions must be strictly observed to avoid the risk of damage or personal injury. • Do not smoke while operating or refuelling the mower. Never add fuel or remove the fuel cap while the engine is running or hot. If the fuel is spilt, do not start the engine. Move the mower away from the area of the spill. - Page 9 Side chute must be fitted before operating mower SAFETY: Before Operating mower: Disconnect spark plug and fit Side Chute as shown. Do not operate mower unless Side Chute supplied by Bushranger is properly fitted. * Bolts, washers, nuts and side chute (guard) supplied...
-
Page 10: Cleaning
OPERATING INSTRUCTIONS Starting & Stopping 4 Stroke Engine - Briggs & stratton, See engine manual & procedure below. STARTING COLD S T A R T I N G COLD 1. Move the throttle control lever to the choke/start position. CHOKE CHOKE CHOKE CHOKE... -
Page 11: Blade Replacement
14-19 Nm (Newton Metres) or 10-14 ft lbs. • Always turn the nut to check tightness, not the bolt. Use only genuine replacement parts made and guaranteed by Bushranger. Insist them from your parts and service dealer. NOTE: Use of non-genuine blades may void your warranty,and could result in... -
Page 12: Remote Air Filter Maintenance
Bushranger recommends that the air filter element and seal ring are replaced annually, or more often in dusty conditions. Always replace with genuine Bushranger spare parts. -
Page 13: Maintenance Chart
Before carrying out maintenance, STOP the engine, disconnect the spark plug lead from the spark plug and wedge it between the cylinder head fins. Never attempt maintenance that is not outlined in this manual. All repair work must be carried out by a Bushranger Authorised Service Centre. -
Page 14: Troubleshooting
Engine worn or seized Contact Service Centre Fuel cap not venting Check / Loosen cap slightly Low or no oil (4 stroke) Check If running difficulties continue, contact your closest Bushranger Authorised Service Centre as listed in the back of this manual. - Page 15 Warranty Service Warranty Service under both the Express Warranty and the warranties implied by law is available at any Bushranger Authorised Service Centre. These centres are staffed and equipped to provide expert service. Warranty Period - 46TBU6...
- Page 16 (direct, indirect, special, consequential, or otherwise and whether or not arising from a negligent act or omission of Bushranger), incurred or suffered by reason for the goods, their use, their design or any failure to deliver or delay in delivering them.
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 ©2010 Powerup Lawncare Products Pty Ltd Bushranger is a trademark of Powerup Lawncare Products Ltd. All rights reserved. No part of this booklet may be reproduced by any means without prior written permission. All information herein is subject to change without notice.
