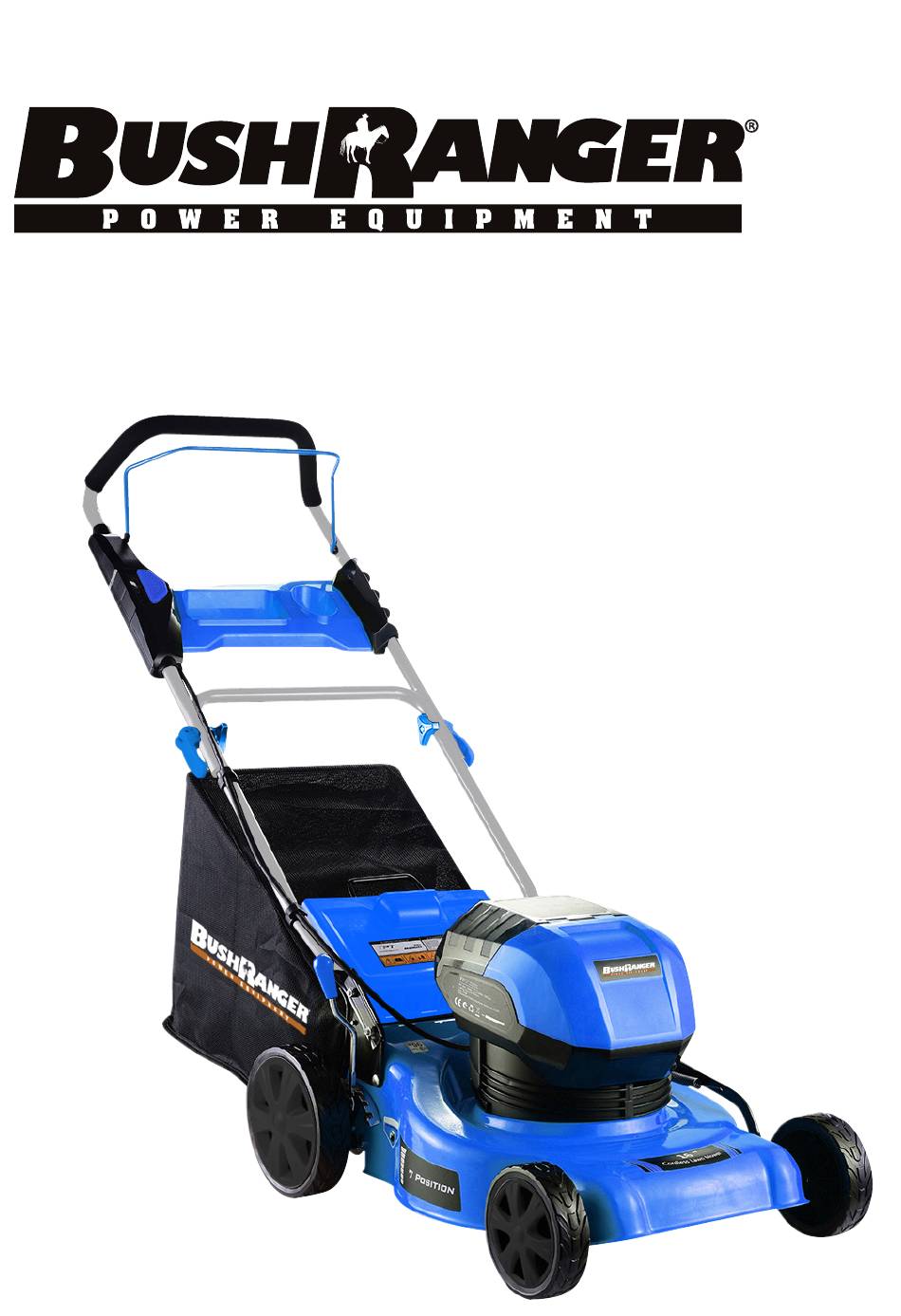

- Page 1 OPERATOR’S MANUAL 36V 16" BATTERY POWERED LAWN MOWER BRU36v9501...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Introduction 03 - 04 Safety Rules & Precautions Important Information 05 - 07 Battery & Charger Safety Rules Child Safety Product Description Detailed Description Of The Product 09 - 10 Technical Data Assembly Unpacking Installing Cup Holder Unfolding &... -
Page 3: Introduction
We are sure you shall appreciate the quality and performance of this ® machine, which will facilitate your task for a long period of time. Remember that you can contact your local Bushranger dealer for any queries regarding assembly and maintenance, as ®... -
Page 4: Introduction
INTRODUCTION CE Marking The product meets demands and regulations set by the European Community. Accumulator Disposal WEEE Marking CAUTION! Unusable power tools do not belong with domestic waste. They must be Old Accumulators and batteries must not be added to household waste, but should be disposed of in accordance with the taken to a communal collecting point for environmentally friendly disposal in accordance applicable legislation. -
Page 5: Important Information
SAFETY RULES & PRECAUTIONS • Never allow children or people unfamiliar with these instructions to use the lawnmower. • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. - Page 6 SAFETY RULES & PRECAUTIONS • Never pick up or carry a lawnmower while the motor is running. • Stop the motor and switch off isolator key and battery / batteries. Make sure that all moving parts have come to a complete stop: - Whenever you leave the machine;...
-
Page 7: Battery & Charger Safety Rules
SAFETY RULES & PRECAUTIONS • When battery pack is not in use, keep it away from other metal objects like paper clips, coin, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. -
Page 8: Child Safety
SAFETY RULES & PRECAUTIONS • The battery should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE using product with its battery in a depleted condition. The battery is not fully charged at the factory. Before attempting to use it must be fully charged firstly. -
Page 9: Detailed Description Of The Product
PRODUCT DESCRIPTION PRODUCT DESCRIPTION DETAILED DESCRIPTION OF THE PRODUCT PART DESCRIPTION QUANTITY Lawn Mower PART DESCRIPTION QUANTITY Mulching Plug Charger Lawn mower Grass Catcher Bag Mulching plug Battery 36v 5AH Charger Battery 36v 2.5Ah - Large Skin Grass catcher bag Battery 36v 2.5Ah - Small Skin Battery 36V 2.5Ah... - Page 10 Lower Handle Locks Bail switch Rear Discharge Cover Lower handle locks Battery Release Button Cup Holder Rear discharge cover NOTE: Bushranger reserves the right to modify the specifications of the device without prior notice. ® Battery release button Cup holder...
-
Page 11: Technical Data
TECHNICAL DATA CORDLESS LAWNMOWER BATTERY AND CHARGER Model BRU36v9501 Battery Pack BRAT36v6500 Battery Type 36 V DC Lithium-ion Charger BRAT36v6525 Charge Time Compatible Battery 123 mins (5.0Ah battery) BRAT36v6250, BRAT36v6251 Pack No-load Speed 3000 - 3500 rpm Cutting Width 400 mm Cather Capacity 50 L (1.4 Bushel) -
Page 12: Installing Cup Holder
INSTALL CUP HOLDER (1) injury. 1. Install cup holder : ASSEMBLY INSTALL CUP HOLDER (1) • Open attachment bag find 4 PCS M4x15 screw and find the cup holder (P) in packing box. • Install cup hodler (P) to upper handle assembly 1. -
Page 13: Installing The Grass Catcher Bag
ASSEMBLY INSTALLING THE GRASS CATCHER (FOR REAR BAGGING OPERATION) (4) INSTALLING THE GRASS CATCHER (FOR REAR BAGGING OPERATION) (4) NOTE: When using the grass catcher (D), do not install the mulching plug. Installing The grass Catcher (Fig. 4) NOTE: When using the grass catcher (D), do not install the mulching plug. -
Page 14: Starting/Stopping The Mower
USING THE PRODUCT USING THE PRODUCT USING THE PRODUCT STARTING/STOPPING THE MOWER (1) Stopping The Mower (Fig. 1) • Raise the battery cover. STARTING/STOPPING THE MOWER (1) • Install battery. • Raise the battery cover. • Lower the battery cover. •... -
Page 15: Mulching Tips
USING THE PRODUCT Mulching Tips NOTE: Inspect the area where the mower is to be used and remove all stones, sticks, wire, bones, and other debris that might be thrown by the rotating blade. • Release the switch to turn the mower OFF when crossing any graveled area (stones can be thrown by the blade). •... -
Page 16: Replacing The Cutting Blade
CARE AND MAINTENANCE Replacing The Cutting Blade NOTE: Only use authorised replacement parts. CARE AND MAINTENANCE Remove Battery REPLACING THE CUTTING BLADE While wearing leather padded gloves, wedge a block of wood between the blade and the mower deck in order to prevent the blade from turning when the nut (1) is being removed. WARNING Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the... -
Page 17: Service & Adjustments
SERVICE AND ADJUSTMENTS Service and Adjustments • Identical replacement parts are available from the manufacturer. When ordering replacement parts, remember the use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety and warranty. •... -
Page 18: Transporting Lithium Batteries
SERVICE AND ADJUSTMENTS PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. Grass jammed between the deck and Remove battery; check under deck for blade. jams. The battery is not fully inserted in the Check the connection between the battery The mower does not start. -
Page 19: Recycling & Disposing
SERVICE AND ADJUSTMENTS Recycling and Disposing (continued) Follow these instructions in order to avoid injury and the risk of fire, explosion, or electric shock, and to avoid damage to the environment: • Cover the battery’s terminals with heavy- duty adhesive tape. •... - Page 20 Copyright © Roy Gripske and Sons Pty. Ltd. 2018. All rights reserved. 1041. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
