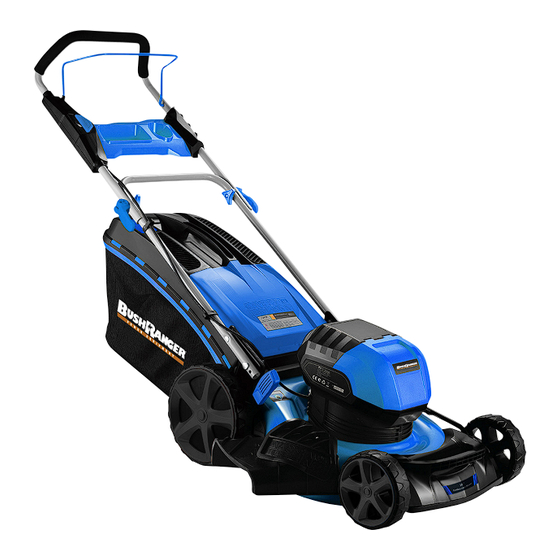

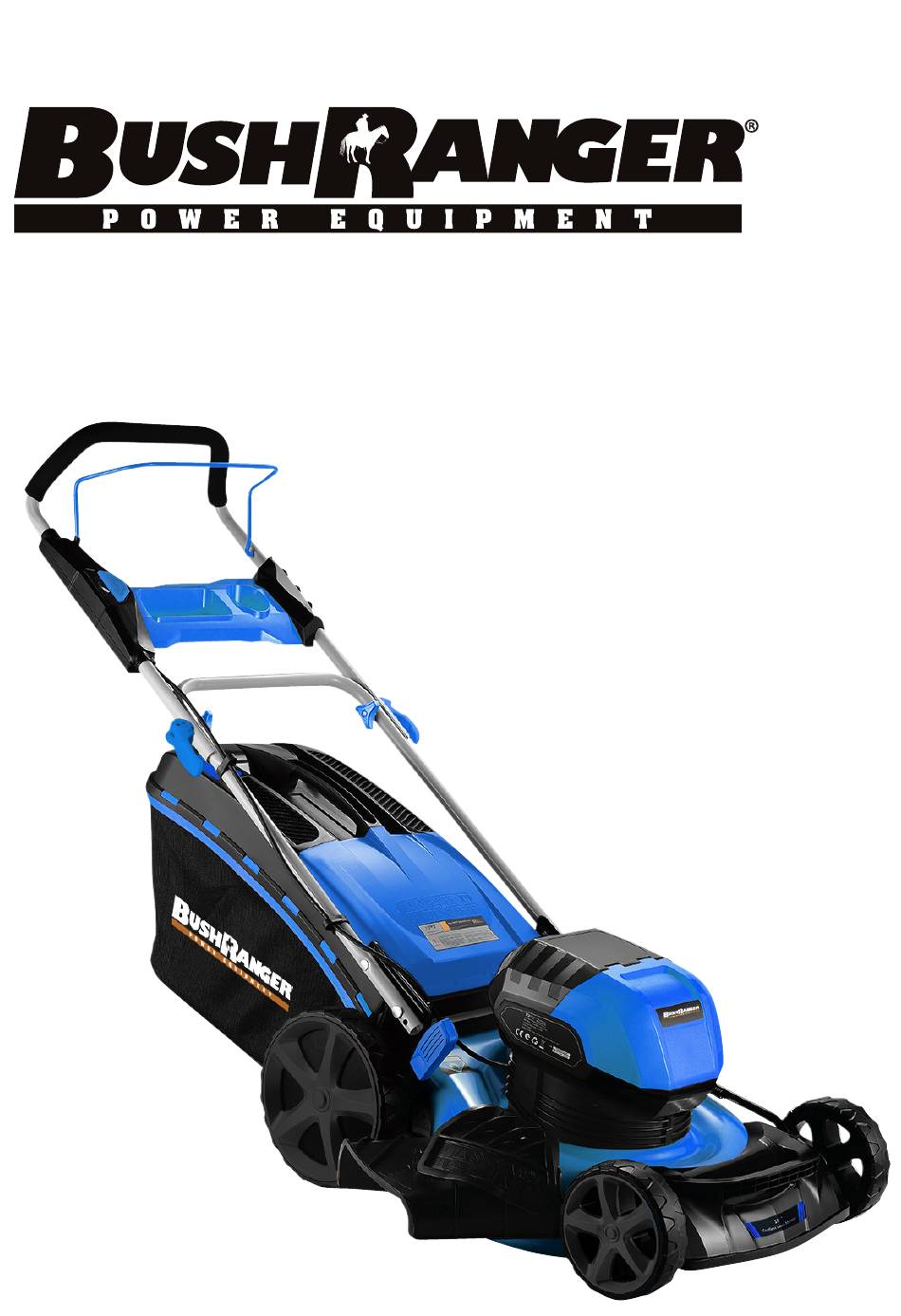

- Page 1 OPERATOR’S MANUAL 36V 18" BATTERY POWERED LAWN MOWER BRU36v9601...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Introduction 03 - 04 Safety Rules & Precautions Important Information 04 - 07 Battery & Charger Safety Rules 07 - 08 Product Description Detailed Description Of The Product Technical Data Assembly Unpacking Unfolding & Adjusting Lower Handle Installing Cup Holder Installing The Grass Catcher Bag Installing/Removing The Mulching Plug... -
Page 3: Introduction
We are sure you shall appreciate the quality and performance of this ® machine, which will facilitate your task for a long period of time. Remember that you can contact your Bushranger dealer for any queries regarding assembly and maintenance, as well as ®... -
Page 4: Important Information
INTRODUCTION CE Marking The product meets demands and regulations set by the European Community. Accumulator Disposal WEEE Marking CAUTION! Unusable power tools do not belong with domestic waste. They must be Old Accumulators and batteries must not be added to household waste, but should be disposed of in accordance with the taken to a communal collecting point for environmentally friendly disposal in accordance applicable legislation. - Page 5 SAFETY RULES & PRECAUTIONS NOTE: Remove batter from mower when not in use or in storage. • Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property. • While mowing, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.
- Page 6 SAFETY RULES & PRECAUTIONS • Never pick up or carry a lawnmower while the motor is running. • Stop the motor and switch off isolator key. Make sure that all moving parts have come to a complete stop: - Whenever you leave the machine; - Before clearing blockages or unclogging chute;...
-
Page 7: Battery & Charger Safety Rules
SAFETY RULES & PRECAUTIONS • When battery pack is not in use, keep it away from other metal objects like paper clips, coin, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. - Page 8 SAFETY RULES & PRECAUTIONS • The battery should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE using product with its battery in a depleted condition. The battery is not fully charged at the factory. Before attempting to use it must be fully charged firstly.
-
Page 9: Detailed Description Of The Product
Rear wheel Front wheel Side discharge Mulching chute plug 36V Battery 36V Charger CORDLESS LAWNMOWER BATTERY AND CHARGER Model Battery Pack BRU36v9601 BRAT36v6500 Battery Type 36 v DC Lithium-ion Charger BRAT36v6525 Charge Time 123 mins (5.0Ah Battery) Compatible Battery Pack BRAT36v6250, BRAT36v6251 No-load Speed 2800-3300 rpm... -
Page 10: Unpacking
ASSEMBLY Unpacking • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. -
Page 11: Unfolding & Adjusting Lower Handle
• If a cable is damaged, contact an Authorized Service Dealer. • If a cable is damaged, contact an Authorized Service Dealer. • If a cable is damaged, contact an authorized Bushranger Service Dealer. ® UNFOLDING AND ADJUSTING HANDLE ASSEMBLY UNFOLDING AND ADJUSTING HANDLE ASSEMBLY a. -
Page 12: Installing Side Discharge Chute
• To remove the mulching plug, lift the rear discharge door (1). • Grasp the handle (2) of the mulching plug. ASSEMBLY Lift and pull the mulching plug out using the handle. • The mulching plug (3) is in serted at an angle, so it requ ires some force to remove it. -
Page 13: Starting/Stopping The Mower
USING THE PRODUCT USING THE PRODUCT STARTING/STOPPING THE MOWER Starting/Stopping The Mower TO START THE MOTOR: To Start The Motor: • Open the battery door. • Open the battery door. • Insert the battery. • Press and hold the safety lock-out button (1). -
Page 14: Slope Gauge
USING THE PRODUCT Slope Gauge WARNING Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope, do not mow it. •... -
Page 15: Emptying The Grass Catcher Bag
USING THE PRODUCT Mulching Tips (continued) • For effective mulching, do not cut wet grass, because it tends to stick to the underside of the deck, preventing proper mulching of grass clippings. New or thick grass may require a narrower cut. The ground speed should be adjusted to the condition of the lawn. -
Page 16: Replacing The Cutting Blade
Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the battery when servicing or transporting the mower. CARE AND MAINTENANCE NOTE: Only use authorized Bushranger replacement parts. ®... - Page 17 CARE AND MAINTENANCE Service and Adjustments (continued) • Keep the handles dry, clean, and free of oil and grease. • In order to reduce the risk of fire, keep the motor free of grass, leaves, and debris build-up. • Check the blade and motor mounting bolts for proper tightness frequently. Visually inspect blade for damage (e.g., bent, cracked, or worn).
-
Page 18: Transporting Lithium Batteries
CARE AND MAINTENANCE PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. Grass jammed between the deck and Remove battery; check under deck for blade. jams. The battery is not fully inserted in the Check the connection between the battery The mower does not start. -
Page 19: Recycling & Disposing
CARE AND MAINTENANCE Recycling and Disposing (continued) Follow these instructions in order to avoid injury and the risk of fire, explosion, or electric shock, and to avoid damage to the environment: • Cover the battery’s terminals with heavy- duty adhesive tape. •... - Page 20 Copyright © Roy Gripske and Sons Pty. Ltd. 2018. All rights reserved. 1041. Images are for illustrative purposes only. Bushranger™ is a trademark of Roy Gripske & Sons Pty Ltd. PLP shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material.
Need help?
Do you have a question about the BRU36v9601 and is the answer not in the manual?
Questions and answers
My BRUv36 cuts out after 5 seconds of staring up. What could be the issue? One battery is full the other half full.
The issue may be caused by an imbalance between the two batteries. The Bushranger BRU36v9601 likely requires both batteries to have similar charge levels to function properly. If one battery is full and the other is only half-full, the voltage difference could trigger a safety mechanism that shuts the mower off.
To fix this issue, try the following steps:
1. Fully charge both batteries before use.
2. Swap battery positions and check if the issue persists.
3. Inspect the battery terminals for dirt or corrosion and clean them if necessary.
4. Ensure the batteries are properly seated in their slots.
5. If the problem continues, test the mower with two fully charged batteries of the same type and capacity.
If the mower still cuts out, there may be a fault with one of the batteries or the mower’s power management system. In that case, consider testing with a different pair of batteries or contacting the manufacturer for further troubleshooting.
