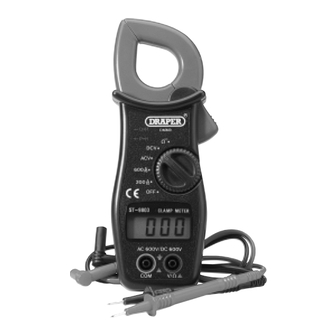

- Page 1 DIGITAL A.C./D.C. CLAMP MULTIMETER STOCK No. 56734 PART No.DMM9 5/99 • INSTRUCTIONS • IMPORTANT:- PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL...
-
Page 2: Specifications
FEATURES Designed to meet International Safety Standards, IEC 1010-1 and VDE0411. Tear-drop shaped jaws for ease to use in crowded cable areas. Electronic overload protection up to 250V/A.C. and D.C. on resistance range. Continuity buzzer ideal for checking the continuity of transformers and motor coils. - Page 3 SPECIFICATION cont’d . . . Jaw opening : Ø 33mm approx. Display ⁄ digit (2000 count) LCD Surge protection : Protected by SG (Spark Gap) Overload protection : Protected by PTC in the Resistance range (Protected circuit from A.C. 250V) Data Hold : Operates in all ranges Peak Hold...
-
Page 4: Description Of Warning Symbols
DESCRIPTION OF WARNING SYMBOLS Earth (ground) TERMINAL. Equipment protected throughout by DOUBLE INSULATION or REINFORCED INSULATION. Caution, risk of electric shock. Caution (refer to accompanying document). WARNING: Sources like small hand-held radio receivers, fixed station radio and television transmitters, vehicle radio transmitters and cellular phones generate electromagnetic radiation that may induce voltages in the test leads of the multimeter. - Page 5 OPERATIONS A.C. CURRENT MEASUREMENT WARNING: MAKE CERTAIN THAT ALL TEST LEADS ARE DISCONNECTED FROM INSTRUMENT TERMINALS. 1. Set the range selector switch to the highest 600A range position. 2. Press the trigger to open the transformer jaws and clamp on to one conductor only (Fig.1).
-
Page 6: Data Hold Function
OPERATION cont’d . . . RESISTANCE MEASUREMENT AND CONTINUITY CHECK WARNING: MAKE CERTAIN THAT THERE IS NO VOLTAGE IN THE CIRCUIT OF COMPONENTS BEING MEASURED. Set the range selector switch to the OHM ( ) position. Insert the red test lead into the V/ terminal of the instrument and the black test lead into the COM terminal. -
Page 7: Declaration Of Conformity
DECLARATION OF CONFORMITY Draper Tools Ltd. Hursley Road, Chandler's Ford, Eastleigh, Hampshire. SO53 1YF. England. Declare under our sole responsibility that the product: Stock Number:- 56734 Part Number:- DMM9. Description:- Digital Clamp Multimeter To which this declaration relates is in conformity with the following directive(s): 73/23/EEC &... - Page 8 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
