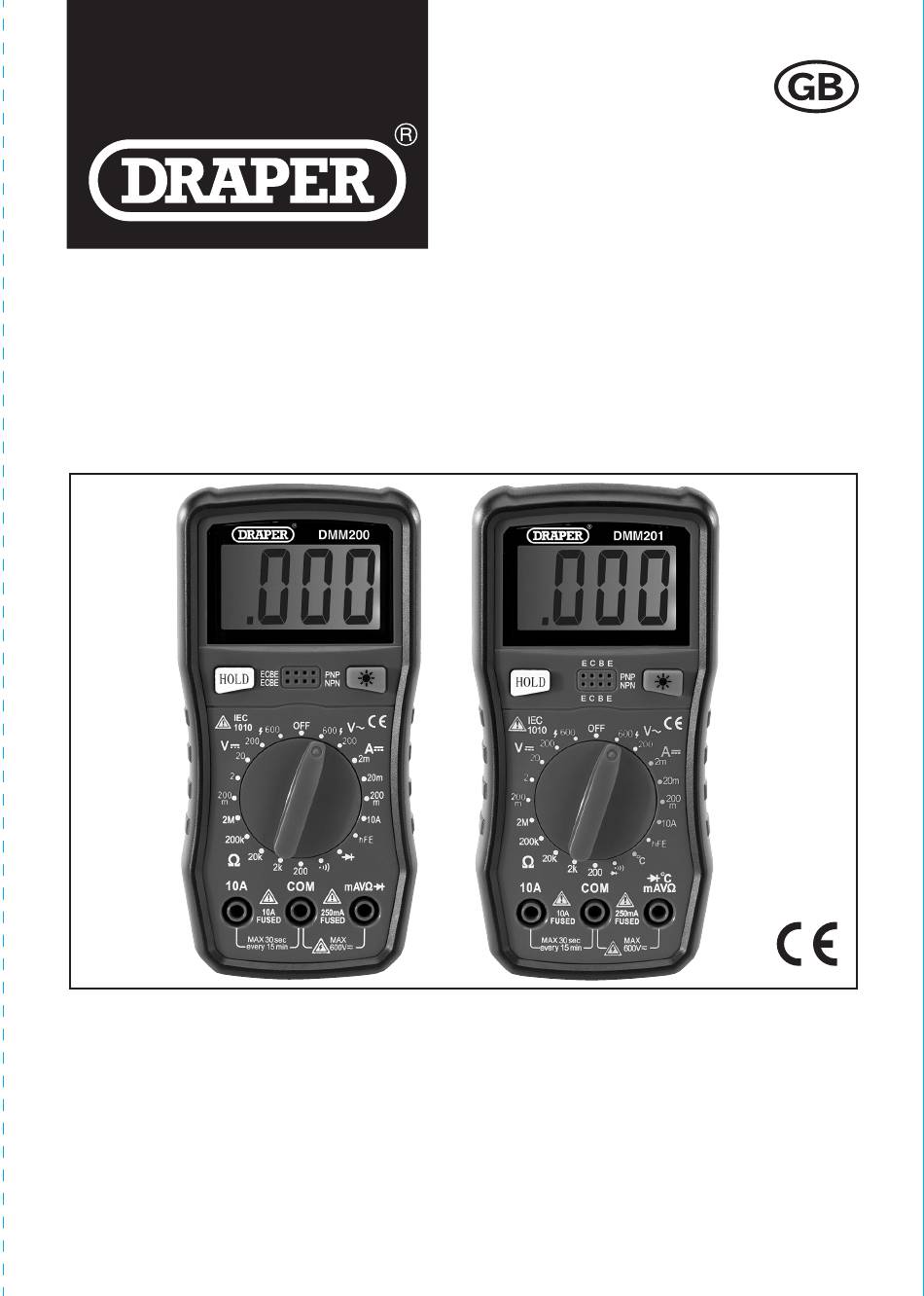

200 SERIES
MULTIMETER
41817 & 41818
IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save
these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the
product with which it is enclosed and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary information
to ensure its correct and safe use. We recommend that this manual is read before any operation or, before performing
any kind of adjustment to the product and prior to any maintenance tasks. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper 200 Series

Summary of Contents for Draper 200 Series

  • Page 1 IMPORTANT: Please read these instructions carefully to ensure the safe and effective use of this product and save these instructions for future reference. This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    2. CONTENTS 2.1 CONTENTS ................Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY ..................2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE...................... 4 INTRODUCTION GENERAL SPECIFICATIONS ................. 5-7 HANDLING & STORAGE ................... 7 HEALTH &...

  • Page 4: Guarantee

    3. GUARANTEE 3.1 GUARANTEE Draper tools have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship. Should the tool develop a fault, please return the complete tool to your nearest distributor or contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF.

  • Page 5: Introduction

    4. INTRODUCTION 4.1 GENERAL SPECIFICATIONS Max Voltage between input terminal and Earth Ground: CATIII 600V. Over-range Indication: display “1” for the significant digit. Automatic display of negative polarity “–” . Low Battery Indication: ‘ ’ displayed. Max LCD display: 1999 (31/2 digits). Fuse protection: F2-0.2A/250V (Ø5x20mm) ；...
  • Page 6 4. INTRODUCTION DC Current Range Accuracy Resolution ±(1.0% of rdg + 10 digits) 1μA 20mA ±(1.0% of rdg + 10 digits) 10μA 200mA ±(1.5% of rdg + 20 digits) 100μA ±(3.0% of rdg + 20 digits) 10mA Overload protection: F1 10A/500V fuse, F2 200mA/250V fuse Maximum input current: 10A ( no more then 10 seconds) Resistance Range...

  • Page 7: Handling & Storage

    4. INTRODUCTION Continuity Test Range Function Built-in buzzer will sound if resistance is lower than 70Ω Over-load protection: DC 250V or AC 220V effective value Open circuit voltage: approximate 3.0V 4.2 HANDLING & STORAGE Care must still be taken when handling, dropping this machine will have an effect on the accuracy.

  • Page 8: Health & Safety Information

    5. HEALTH & SAFETY INFORMATION 5.1 SAFETY PRECAUTIONS This instrument complies with IEC1010 (International Electrotechnical Commission promulgated safety standards). Design and production with an over-voltage category (CAT III) and using the pollution level 2 safety requirements. Warning To avoid electrical shock or personal injury. Please read the safety information and “warnings and precautions”...

  • Page 9: Identification

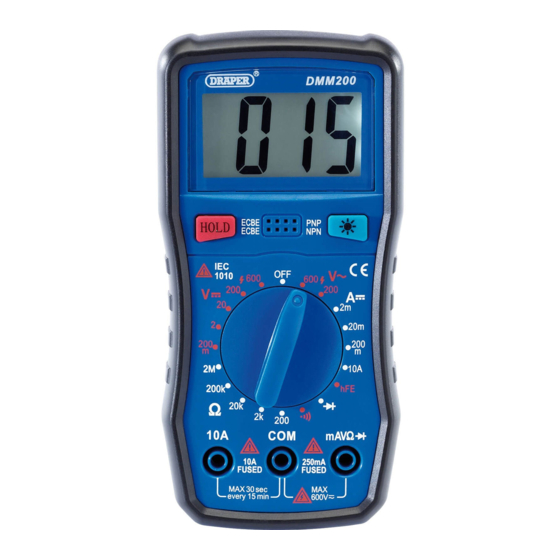

    6. IDENTIFICATION 41818 Shown LCD display window. HFE Transistor test - input socket. HOLD button. Backlight on and off button. Measurement function range switch. Probe sockets.

  • Page 10: Unpacking & Checking

    Carefully remove the product from the packaging and examine it for any sign of damage caused during shipping. Lay the contents out and check them. If any part is damaged or missing, do not attempt to use the tool and contact the Draper Helpline immediately (see back page for details).

  • Page 11: Operating Instructions

    8. OPERATING INSTRUCTIONS WARNING: DO NOT USE ON VOLTAGES ABOVE 600V. 8.1 DC VOLTAGE 1. Connect the black test lead to COM probe socket and the red to VΩmA probe socket. 2. Set the measurement function range switch to the desired range position.

  • Page 12: Transistor Testing

    8. OPERATING INSTRUCTIONS 8.6 TRANSISTOR TESTING 1. Set the measurement function range switch to the ‘hFE’ position. 2. Determine whether the transistor under testing is NPN or PNP. Insert the leads into the correct holes of hFE socket on the front panel. 8.7 DIODE TEST 1.

  • Page 13: Maintenance 9.1 Maintenance

    9. MAINTENANCE 9.1. BATTERY REPLACEMENT WARNING! Before attempting to open the battery cover of the meter, be sure the test leads have been disconnected.

  • Page 14: Explanation Of Symbols

    10. EXPLANATION OF SYMBOLS 10.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish For indoor use. Do not expose to rain. Class II construction (Double insulated) Attention. Conforms to all relevant safety standards.

  • Page 15: Disposal

    11. DISPOSAL 11.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd. DBMC0617...
