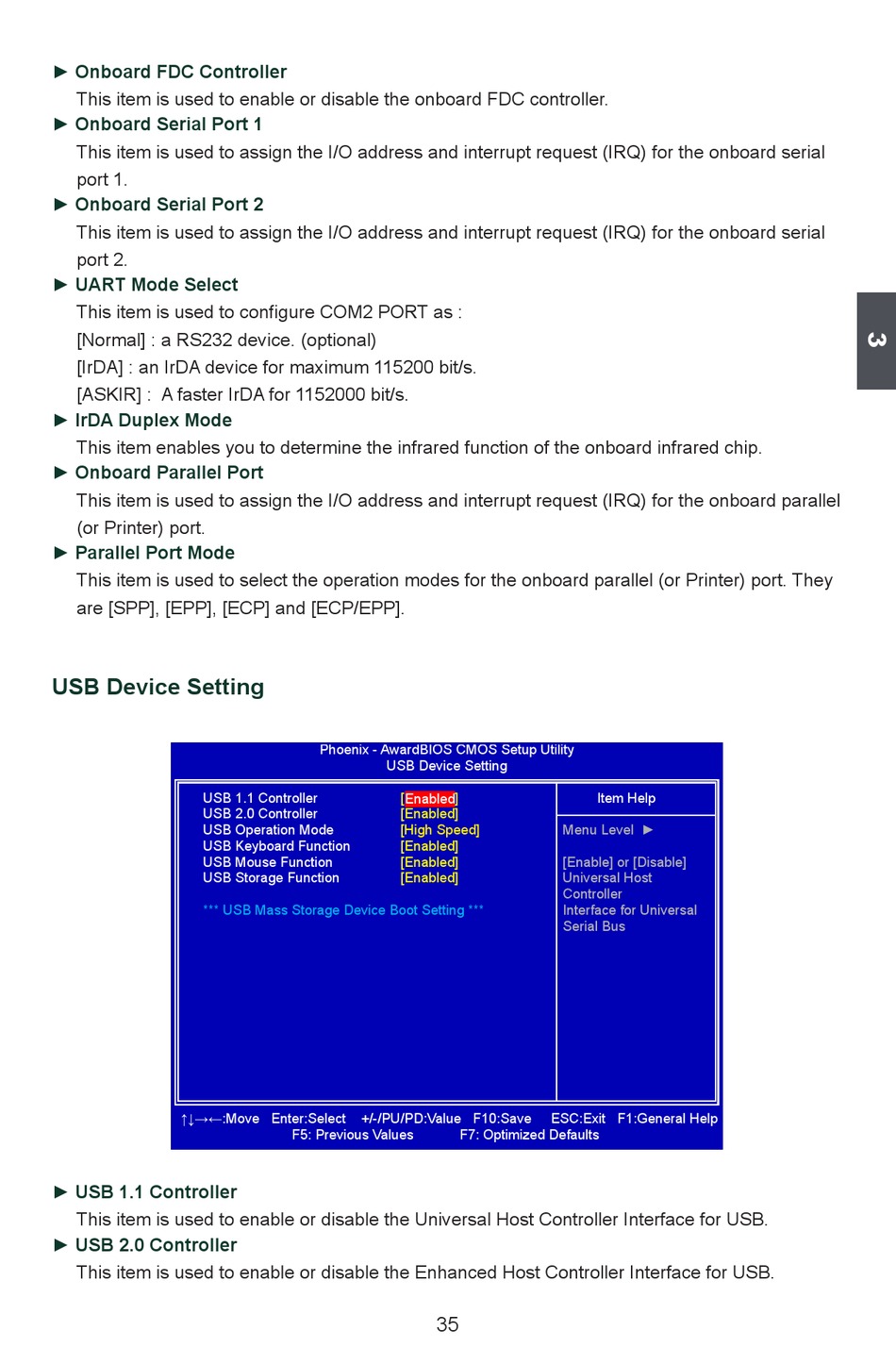

Usb Device Setting - Foxconn 45CMX User Manual

► Onboard FDC Controller
This item is used to enable or disable the onboard FDC controller.
► Onboard Serial Port 1
This item is used to assign the I/O address and interrupt request (IRQ) for the onboard serial
port 1.
► Onboard Serial Port 2
This item is used to assign the I/O address and interrupt request (IRQ) for the onboard serial
port 2.
► UART Mode Select
This item is used to configure C�M2 P�RT as :
[Normal] : a RS232 device. (optional)
[IrDA] : an IrDA device for maximum 115200 bit/s.
[AS�IR] : A faster IrDA for 1152000 bit/s.
► IrDA Duplex Mode
This item enables you to determine the infrared function of the onboard infrared chip.
► Onboard Parallel Port
This item is used to assign the I/O address and interrupt request (IRQ) for the onboard parallel
(or Printer) port.
► Parallel Port Mode
This item is used to select the operation modes for the onboard parallel (or Printer) port. They
are [SPP], [EPP], [ECP] and [ECP/EPP].

USb Device Setting

USB 1.1 Controller
USB 2.0 Controller
USB Operation Mode
USB Keyboard Function
USB Mouse Function
USB Storage Function
*** USB Mass Storage Device Boot Setting ***
↑↓→←:Move Enter:Select
► USB 1.1 Controller
This item is used to enable or disable the Universal Host Controller Interface for USB.
► USB 2.0 Controller
This item is used to enable or disable the Enhanced Host Controller Interface for USB.
Phoenix - AwardBIOS CMOS Setup Utility
USB Device Setting
[Enabled]
Enabled
[Enabled]
[High Speed]
[Enabled]
[Enabled]
[Enabled]
+/-/PU/PD:Value F10:Save
F5: Previous Values F7: �ptimi��ed Defaults
35
Item Help
Menu Level ►
[Enable] or [Disable]
Universal Host
Controller
Interface for Universal
Serial Bus
ESC:Exit F1:General �elp
