Installation
in the desired marked position
while turning the anchor
clockwise until it is flush with
the wall.
9. Insert the wall anchor screws
through the wall bracket and
thread into the wall anchors.
Tighten the screw.
10. Install the remaining screw
through the bracket and into
the wall stud.
!
NOTE: At least one of the
screws must be installed into a
wall stud.

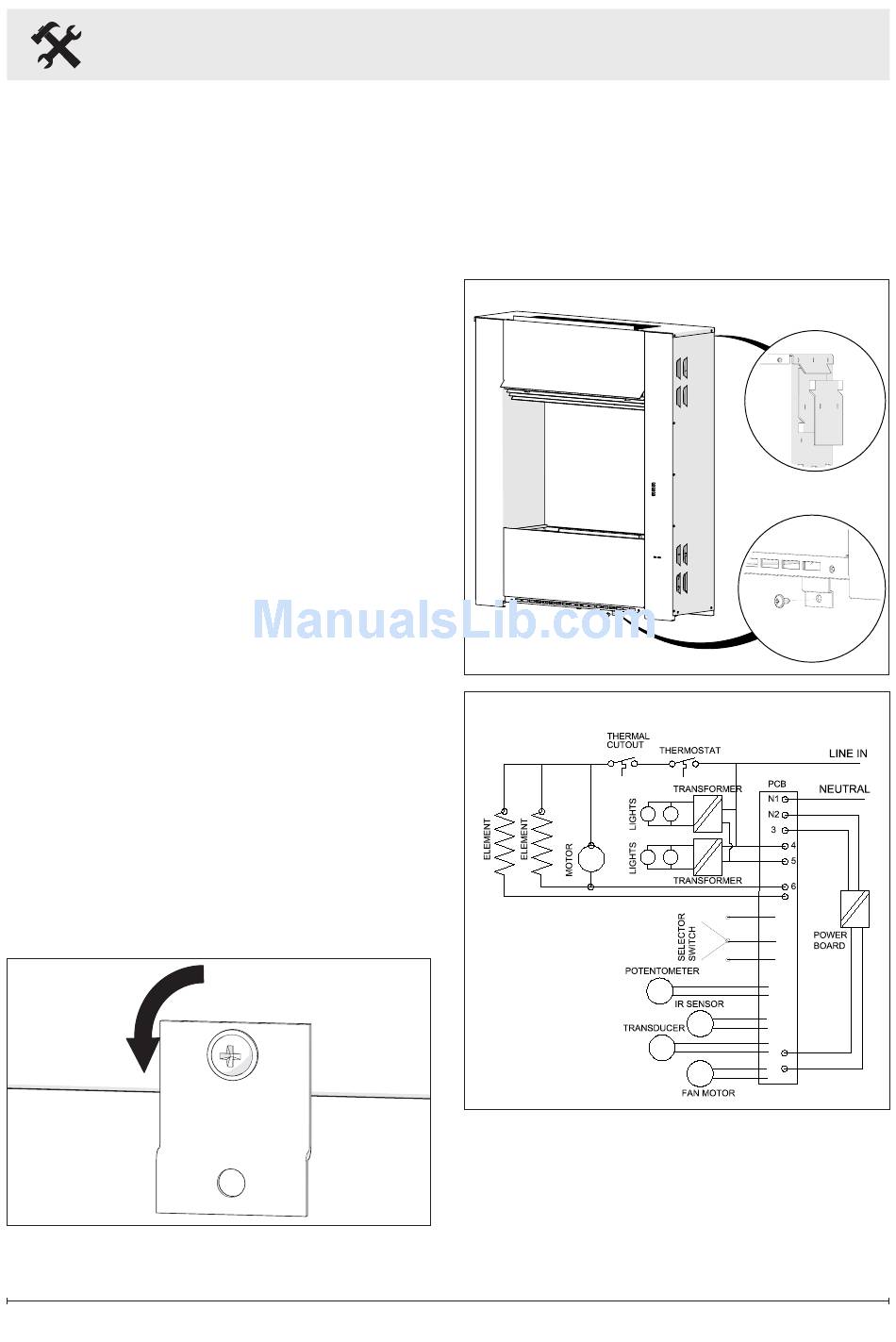

11. Rotate the securing bracket
at bottom of the engine at
the back so that it is pointing
down. (Figure 3)
12. Mount the unit on the wall,
so that the tab on the engine
bracket has been inserted
into the hook on the wall
bracket. (Figure 4)
Figure 3
8
13. Secure the bottom of the wall
mounted engine to the wall
using the securing bracket
and the provided screw.
Figure 4
Wiring
