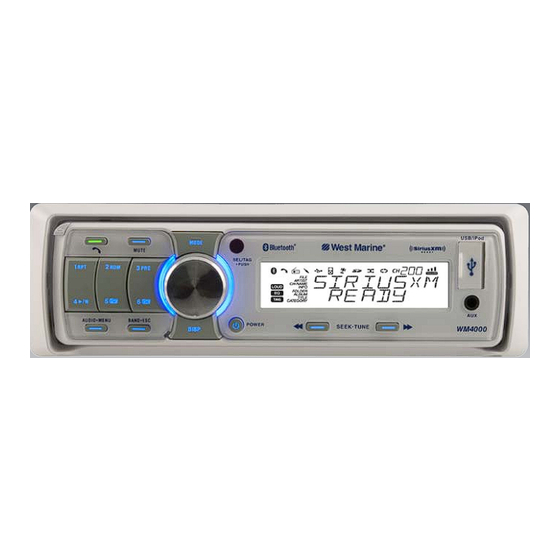

WM4000 MARINE RECEIVER I MODEL 14286801

Owner's Manual

Table of Contents

Summary of Contents for West Marine 14286801

Page 1 WM4000 MARINE RECEIVER I MODEL 14286801 Owner’s Manual...
Page 2: Before You Start
PREPARATION Please read entire manual before installation. Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Remove trim ring and mounting sleeve from the unit. • Install mounting sleeve into opening, bending tabs to secure. • Connect wiring harness and antenna. Consult a qualified technician if you are unsure. • Certain vessels may require an installation kit and/or wiring harness adapter (sold separately). • Test for correct operation and slide into mounting sleeve to secure. • Snap trim ring into place. Vessel Dash Panel or Splashguard Step 1: Insert the mounting sleeve into the vessel's dash panel or installed splashguard Mounting Sleeve...
Page 3: Wiring Diagram
WIRING DIAGRAM RF30KIT RF Remote Input Connect the RF30 receiver (sold separately) RF30KIT: Model 14286819 Rear RCA Auxiliary Input Rear/Sub RCA Output Front RCA Output AM/FM Antenna Input Connect the vessel antenna SiriusXM Tuner Input (SiriusXM Connect Vehicle Tuner sold separately) BLACK Bluetooth Microphone Input (3.5mm)
Page 4: Control Locations - Receiver
CONTROL LOCATIONS - RECEIVER Front Panel Release Tune/Track Up Preset 1 / Repeat Tune/Track Down Bluetooth Talk/End Power Preset 2 / Random Display Mute Preset 6 / Folder Up Preset 3 / Preview Band / Escape Preset 5 / Folder Down Mode (Source) Volume (turn) / Select/Tag (push) Audio / Menu...
Page 5 CONTROL LOCATIONS - IR REMOTE Power Preset 2 / Random Key 7 / Key * Volume Up Preset 6 / Folder Up Preset 4 / Play/Pause Audio / Menu Key 9 / Key # Preset 5 / Folder Down Select / Tag Mute Preset 1 / Repeat Tune / Track Up...
Page 6: General Operation
GENERAL OPERATION Display Layout AM/FM Random SiriusXM Tuner Input Icon Mode SD Card iPod Repeat Mode Input Mode Icon Phone Call Icon Preset or SiriusXM Channel Bluetooth Icon SiriusXM Signal LOUD Indicator EQ Indicator iTunes Tagging Indicator ID3 Tag Display Type Press or any other button (except EJECT) to turn the unit on.
Page 7: Setup Menu
SETUP MENU Menu Function Options Action Press SELECT to seek and save 6 strong stations in the current band. Auto Station AUTO PGM (Tuner mode only) Store STATIONS LOCAL OFF Activates distance tuning (Tuner mode only). Local/Distance Activates local tuning for strong station reception only (Tuner mode Tuning LOCAL ON only). Programs the unit to USA tuner spacing. FREQ'NCY USA Tuner (200kHz for FM and 10kHz for AM). (Tuner mode only) Frequency Programs the unit to European tuner spacing. Spacing FREQ'NCY EUR (50kHz for FM and 9kHz for MW). (Tuner mode only) IPOD CNT Programs the head unit to advanced control of the iPod/iPhone device.
Page 8 GENERAL OPERATION 12/24-hour Clock The clock will display 12-hour AM/PM time in USA frequency spacing mode (PM 10 : 00). In European frequency spacing mode, the clock will display 24-hour time (22:00). Audio Press AUDIO momentarily to select between Bass, Treble, Balance, Fader, Equalizer, Subwoofer and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER SOURCE LEVEL Bass Press AUDIO until BASS appears, then rotate volume knob left/right to adjust ( -6 minimum / +6 maximum). Treble Press AUDIO until TREBLE appears, then rotate volume knob left/ right to adjust ( -6 minimum / +6 maximum). Balance Press AUDIO until BALANCE appears, then rotate volume knob left/right to adjust (BALANCE LEFT 12 - BALANCE RIGHT 12).
Page 9: Am/Fm Tuner Operation
AM/FM TUNER OPERATION Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Press and hold to advance quickly. Manual Tuning Press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. Band Press BAND to select between FM1, FM2, FM3, AM1, AM2 and WB bands. Storing and Recalling Up to 18 FM stations and 12 AM stations can be stored. To store Station Presets a station, select the desired band and station. Press and hold the desired preset button (1-6) for more than 2 seconds. When stored, the preset number will appear in the display. The station can be recalled anytime by pressing the corresponding preset button. WEATHER BAND TUNER OPERATION Band Press BAND to select weather band (WB).
Page 10 SIRIUSXM VEHICLE TUNER CONNECTIONS Connecting the SiriusXM Satellite Radio operation requires the connection of the SiriusXM SiriusXM Vehicle Tuner Connect Vehicle Tuner (sold separately). (sold separately) Note: The SiriusXM Connect Vehicle Tuner must have the SiriusXM logo to be compatible with the WM4000. To connect the SiriusXM Vehicle Tuner, follow the instructions provided with the tuner. When connecting the tuner to the WM4000, the cable orientation should be connected as shown below. WM4000 Head Unit SiriusXM Vehicle SiriusXM-Ready Tuner Cable Input Line up the connector with the pins on the cable. It can only be inserted as shown above. Push the cable into the head unit's connector until it clicks. Attempting to insert the cable differently from shown above may cause damage to the cable or head unit. SIRIUSXM VEHICLE TUNER OPERATION SiriusXM Satellite Radio Everything worth listening to is on SiriusXM, getting over 130 channels, Overview including the most commercial-free music, plus the best sports, news, talk and entertainment. A SiriusXM Vehicle Tuner (sold separately) and Subscription are...
Page 11: Listening To Siriusxm
SIRIUSXM VEHICLE TUNER OPERATION Radio ID To view the Radio ID on the LCD, press TUNE or TUNE until channel 0 appears. The 8 character Radio ID will appear on the display. The Radio ID is also printed on the underside of the SiriusXM Vehicle Tuner. Note: The Radio ID does not use the letters I, O, S, F. Listening to SiriusXM After installation of the SiriusXM Vehicle Tuner, press MODE until Satellite Radio SiriusXM mode appears to begin listening to SiriusXM Satellite Radio. Changing Channels Press to change SiriusXM channels. TUNE or TUNE Press and hold to advance quickly. Band Press BAND to select between the SXM1, SXM2 and SXM3 bands. Up to six presets can be programmed for each band, for a total of 18 SiriusXM Satellite Radio channel presets. Setting Channel Presets To store a channel, choose a Band (SXM1-SXM3), then tune to the desired channel. Press and hold a preset button (1-6) on the front panel or remote control for more than two seconds. When stored, a...
Page 12: Parental Controls
SIRIUSXM VEHICLE TUNER OPERATION SiriusXM Setup Menu To access the SiriusXM setup menu options, press and hold AUDIO/MENU for more than 3 seconds, press AUDIO/MENU to cycle through menu options until "SIRIUSXM SETUP" appears, then press SELECT. Press AUDIO/MENU to cycle through the list of submenu options. Function Action Options Description Choose this option to program a new 4-digit code. Enter the new EDIT CODE code using the input method described below*. Allows channels to be locked, requiring the 4-digit code to be entered before the channel becomes available in the channel *Enter Code Parental CHANNEL lineup. Once selected, the channel list will appear. (default: Controls LOCK • Turn the volume knob to browse through the list of channels. 0000) • Press SELECT to lock the desired channel. • Pressing SELECT on a locked channel will unlock it. Choose this option to reset the locked channels back to the factory CLEAR ALL default. All currently subscribed channels will be unlocked. Delete Tags Deletes all Tags that are saved in memory. (Does not affect Tags (iTunes...
Page 13: Displayed Information
SIIRUSXM VEHICLE TUNER OPERATION Displayed Information Display Press DISP to cycle between the following options: (LINE 1) CHANNEL NAME TITLE CONTENT INFO CATEGORY (LINE 2) ARTIST CLOCK CHANNEL Displays the name of the SiriusXM channel. CATEGORY Displays the category type of the current channel. TITLE Displays the song title from the currently playing song. ARTIST Displays the artist's name from the currently playing song. INFO Displays special channel information from the current channel. SiriusXM Advisory Messages Message Description • Check the SiriusXM tuner connection behind the WM4000 to CHECK TUNER ensure that its correctly connected.
Page 14: Tagging Music
® ITUNES TAGGING (SIRIUSXM MODE) Requirements The iTunes Tagging feature of the WM4000 requires the optional SiriusXM Connect Vehicle Tuner (sold separately). Overview iTunes Tagging allows the user to "Tag" songs that are playing on SiriusXM Satellite Radio channel and enables them to be purchased later through iTunes. With the touch of a button the unit will remember the title and artist song information, and then transfer that information to your iPod device the next time you connect it to the WM4000. A new list called "Tagged" will appear in iTunes, giving you the option to purchase each song. Tagging Music Step 1 Tune to a SiriusXM channel. The TAG button on the LCD will illuminate, indicating that a valid artist name and song title are available. Step 2 Press and hold the TAG button (push in the volume knob and hold). A confirmation will be displayed, indicating that the song information has been saved. The song information will be saved in memory until an iPod device is plugged in. Up to 64 SiriusXM Tags can be saved before they must be...
Page 15: Troubleshooting
® ITUNES TAGGING (SIRIUSXM MODE) Troubleshooting Displayed Message Description There is a compatibility issue with the iPod device that is connected. Check the list of compatible iPod devices below. CHECK iPod VER If the attached iPod device is compatible, update the firmware to the latest version using iTunes. Tags are being sent to the iPod device. This process can take several minutes SENDING TAGS depending on the number of Tags being sent. There is not enough space on the connected iPod device to transfer the iTunes Tags. iPod FULL Free up space using iTunes. Connection error. Ensure the iPod device is powered on and reconnect the iPod TRANSFER FAILED device until a confirmation is displayed. The same song has already been tagged from the same channel, and is currently saved in memory. The same song cannot be tagged twice - unless the song is ALREADY TAGGED tagged on a different channel, the Tags are sent to an iPod device or the tags are erased. MEMORY FULL The internal memory will hold 64 SiriusXM Tags. An iPod device must be connected to transfer the Tags, or the Tags must be deleted before more songs can be tagged. CONNECT iPod There is not sufficient information (artist or title) to tag the song. Some HD Radio NO TAG INFO stations or SiriusXM channels or certain songs may not fully support iTunes...
Page 16: Usb/Sd Card Operation
USB/SD CARD OPERATION Connecting a USB To play MP3/WMA files from most USB mass storage devices, open Device the USB cover door, line up the USB connector and insert the USB (sold separately) device into the WM4000's USB port. Connect an SD Card To play MP3/WMA files from an SD Card, insert an SD card into the (sold separately) SD card slot, located behind the front panel. Insert the SD card with the label facing to the right, and press the card until it clicks into place. Remove the SD card by pressing in until it clicks, then pull to remove. Playing Music When a USB or SD card device is first connected, playback will begin momentarily. Depending on the number of files and folders, it may take several seconds for the device to begin playing. If no valid MP3/ WMA files are detected, “NO FILE” will be displayed and the last mode will be resumed. Track Select Press TRACK to skip to the beginning of the next track. Press TRACK to return to the beginning of the current track. Pressing TRACK again skips to the beginning of the previous track.
Page 17: Displaying Information
USB/SD CARD OPERATION Displaying Information When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select between song title, artist, file name, folder name, track number and clock/elapsed time. "NO TITLE" will be displayed if no song title information is available. "NO ARTIST" will be displayed if no artist information is available. Title Icon: TITLE This icon will illuminate when the song title is displayed. Artist Icon: ARTIST This icon will illuminate when the artist name is displayed. Folder Icon: FOLDER This icon will illuminate when the folder name is displayed. File Icon: FILE This icon will illuminate when the file name is displayed. Folder Access Press to select the previous folder. Press to select the next folder. Note: Folder access is only available on devices with more than one folder. Repeat Press RPT to enter the Repeat menu, then turn the volume knob to select one of the following options: • ALL - Plays all tracks on the device.
Page 18 USB/SD CARD OPERATION File/Folder Compatibility and Support • MP3 data (.mp3) Compatible File Types • WMA data (.wma) • AAC data (.m4a) • DRM protected files • WAV data (.wav) • WMA lossless Incompatible File Types • Apple lossless • WMA Pro • MP3 Pro • MP3 playlists Sampling Frequency • MP3: 8kHz - 48kHz Rate Compatibility • WMA: 32kHz - 48kHz Transfer Bit Rate • MP3: 32kbps - 320kbps Compatibility • WMA: 32kbps - 192kbps • Song Title: 32 characters • Artist Name: 32 characters Character Support • Album Name: 32 characters • File Name: 32 characters • Folder Name: 32 characters...
Page 19: Operation Of Ipod/Iphone
OPERATION OF IPOD/IPHONE Connecting an iPod/iPhone Device USB Connection Using the "dock connector to USB" sync cable (provided with the iPod/iPhone device), plug the USB cable into the WM4000's USB port. Once connected, playback will begin automatically. Controlling a Device: Full Control When the control of iPod/iPhone feature is set to "FULL" in the Setup Menu, use the following functions to control the device: Song Select Press to skip to the beginning of the next song. Press to return to the beginning of the current song. Pressing...
Page 20 OPERATION OF IPOD/IPHONE Controlling a Device: Full Control - Music Search Menu The WM4000 features a powerful music search that simplifies the searching process. Follow the steps below to find the desired song: Begin Searching Press SELECT to begin the search. The main search menu will appear. Select a Category Turn the volume knob to select between artists, albums, songs, playlists, podcasts and audiobooks.
Page 21: Device Compatibility
OPERATION OF IPOD/IPHONE Controlling a Device: Manual Control When the control of iPod/iPhone feature is set to "MANUAL" in the iPod Menu, use the following functions to control the device: Manual Control for iPod When "MANUAL" control is selected from the iPod Menu, the iPod or iPhone device can be controlled directly from the device's interface. All functions except for volume can be used from the iPod or iPhone device. Basic Head Unit Control In addition to manual control of the iPod/iPhone device, the following basic functions are still active: Song Select...
Page 22: Bluetooth Operation
® BLUETOOTH OPERATION Pairing a Device Preparation Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The WM4000 broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "WM4000" The Bluetooth passcode "1234" Note: The WM4000 can be in any mode when you can pair a phone.
Page 23: Making A Phone Call
® BLUETOOTH OPERATION Making a Phone Call Manual Dialing • Press once. "ENTERNUM" will be shown, then an "_" will using IR remote control appear on the display. • Using the remote control, enter the phone number using the 0-9 buttons. Press on the remote control or WM4000 front panel to begin dialing. Placing a call from the Placing a phone call from your cell phone will also use the Bluetooth phone function of the WM4000. Recent Calls List • Press SELECT from Bluetooth mode to view the 10 most recent phone calls that were dialed, received or missed while connected to the WM4000. • Turn the volume knob to cycle through the recent phone numbers. Press SELECT or to dial the phone number.
Page 24: During A Phone Call
® BLUETOOTH OPERATION During a Phone Call Volume Turn the volume knob to adjust the volume level during a phone call. Bluetooth mode has a separate volume level from the main volume of other modes. The WM4000 will remember the volume level in Bluetooth mode and always return to the last volume level for each phone call. Microphone Mute Press MUTE during a phone call to turn the WM4000's external microphone off. Press MUTE again to resume microphone operation. Audio Transfer Press DISP during a phone call to transfer the call from the WM4000 to the cell phone. Press DISP again to toggle the audio back to the WM4000. Call Waiting During a phone call, if there is a second incoming call, press place the first call on hold and switch to the second phone call. Press again to switch back to the first call. Note: Audio transfer and call waiting must be supported by the mobile phone and service provider to function properly. Bluetooth Setup Menu Options Function Options Action BL'TOOTH Bluetooth Enables/disables Bluetooth functionality.
Page 25: Bluetooth Reset
® BLUETOOTH OPERATION Streaming Audio Operation The WM4000 supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile). Notes: • To stream music to your head unit, your mobile device must support the A2DP and AVRCP Bluetooth profiles. Check the owner's manual of your mobile device for details. • Streaming audio must be enabled from your mobile device. This option will vary depending on the device. Some devices allow streaming audio to be disabled. After pairing, connecting and enabling streaming audio from a compatible mobile device, begin playing music using the music player on your mobile device. Once the music is playing, the following functions can be used to control the music: • The button will skip to the next available audio track. • The button will skip to the previous audio track. / II button will toggle between play and pause during playback. • The Note: Some Bluetooth devices may not fully support these commands. Bluetooth Reset Resetting the Bluetooth module will remove the list of paired phones and delete the list of recent calls from memory. To reset Bluetooth, perform the following steps: 1) Press MODE until the head unit is in Bluetooth mode. 2) Press and hold MODE for 5 seconds to reset the Bluetooth settings back to the factory default. Compatibility Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly or may not support all features when used with the WM4000.
Page 26 WEST MARINE ONE YEAR LIMITED WARRANTY What Does This Limited Warranty Cover? West Marine warrants to the original retail purchaser of the West Marine product, where the purchase is made in the United States, that the product will be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. How Long Does This Limited Warranty Last? This limited warranty is valid for 12 months from the date of the original retail purchase from West Marine within the United States (the “Limited Warranty Term”). The warranty period is not extended if we repair or replace a warranted product or any parts. West Marine reserves the right to change the availability of limited warranties, at its discretion, but any changes will not be retroactive and will only apply to subsequent purchases. What Does This Limited Warranty Not Cover? This limited warranty does not cover: • Software. • Commercial or industrial use or operation. • Normal maintenance items or normal wear and tear.
Page 27 WEST MARINE ONE YEAR LIMITED WARRANTY What Must I Do To Keep the Warranty in Effect? • You must keep your receipt or other appropriate documentation as proof of the date of sale and purchase. • You must keep your serial number or order number for the product. This is found on the product itself or on your receipt. • You must not do any of the things that will make the warranty invalid as provided for in this warranty statement. • You must use, install, maintain and operate the product in accordance with published specifications and the user’s manual. What Do I Do If I Need Warranty Service? • Before the warranty expires, please call us at 1-800-BOATING. Please also have your West Marine serial number or order number available.
Page 28 TROUBLESHOOTING Problem Cause Action Yellow wire not connected or incorrect Check connections for voltage Red wire not connected or proper voltage (11~16VDC) Unit will not turn on incorrect voltage (no power) Check connection to Black wire not connected ground Fuse blown Replace fuse Check connections at Speaker wires not connected speakers Unit has power Insulate all bare speaker (but no sound) One or more speaker wires touching each wires from each other and other or touching chassis ground chassis ground Yellow or red wire touching chassis Check for pinched wire ground Unit blows fuses Speaker wires touching chassis ground Check for pinched wire Incorrect fuse rating...
Page 29: Fcc Compliance
FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WM4000 1-800-BOATING...
Page 30: Specifications
SPECIFICATIONS FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 10dBf 50dB quieting sensitivity: Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz 22uV Usable sensitivity: Frequency response: 30Hz-2.2kHz General Speaker output impedance: 4~8 ohms Line output voltage: 2 Volts RMS 7" x 7" x 2" (178 x 178 x 51 mm) Dimensions: USB/SD Card FAT, FAT32 File system: File extensions support:...
Page 31 NOTES WM4000 1-800-BOATING...
Page 32 www.westmarine.com Toll Free: 1-800-BOATING www.westmarine.com ©2013 West Marine. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. SD is a trademark of SD-3C, LLC. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Namsung is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA1212-V01 Front and Rear Inputs...
