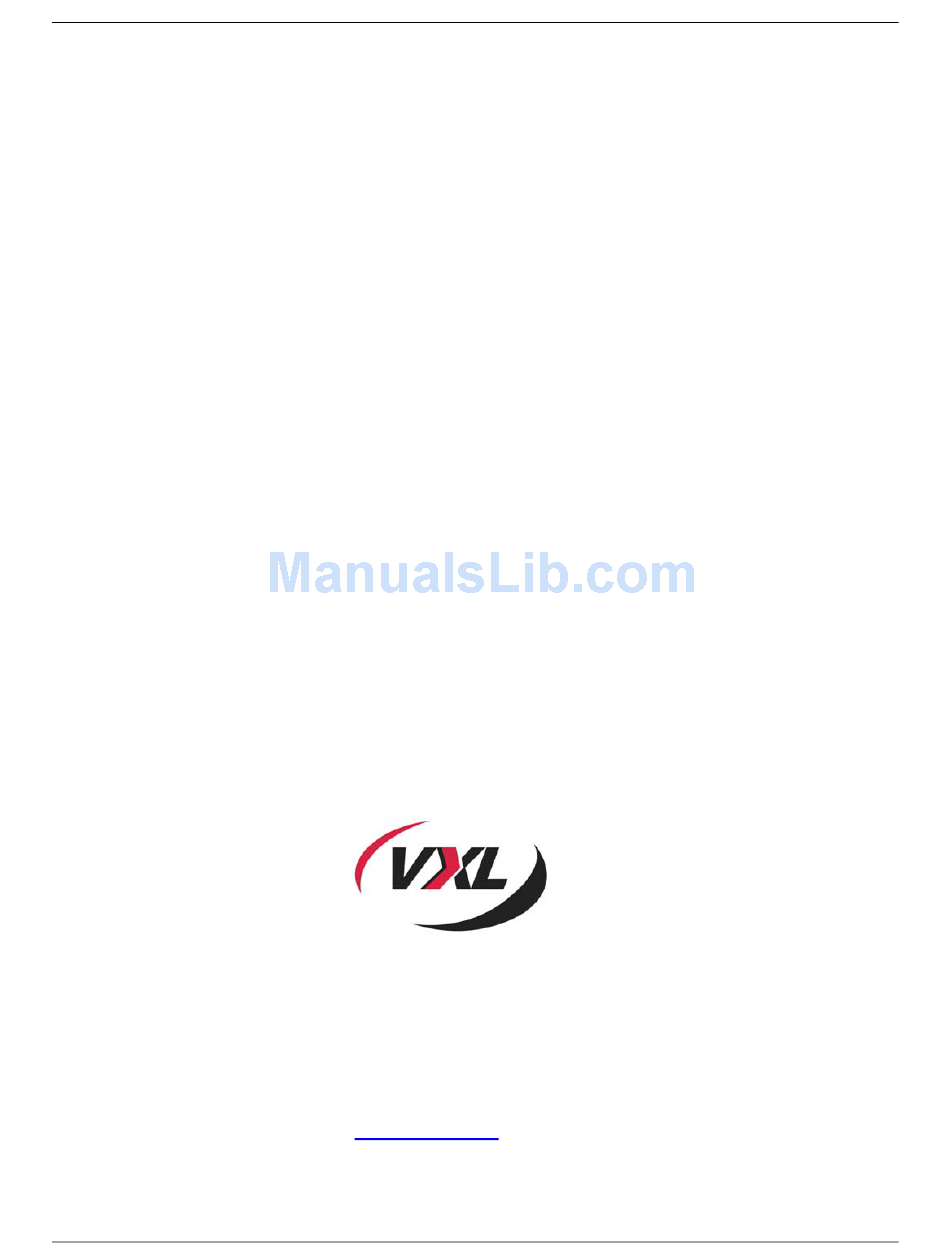

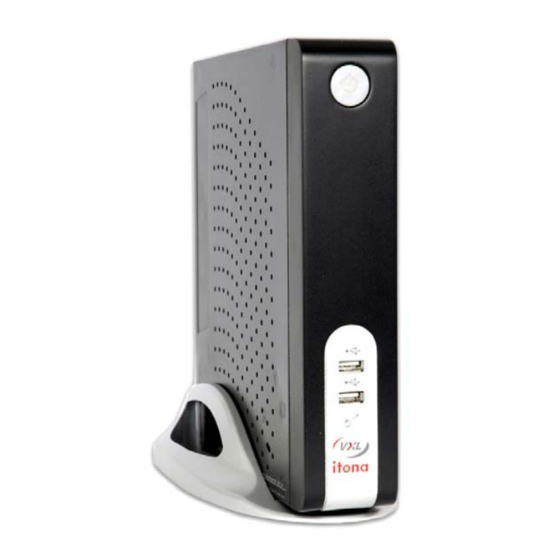

- Page 1 Itona TC23yy Hardware User’s Guide VXL Instruments Ltd, NO.17, House of Excellence, Electronics City, Hosur Road, Bangalore – 560 100, INDIA www.vxl.net...
- Page 2 Itona TC23yy VXL Instruments Ltd Hardware User’s Guide Copyright and Trademark notices ALL RIGHTS RESERVED. Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer.
- Page 3 Itona TC23yy VXL Instruments Ltd Hardware User’s Guide Federal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Itona TC23yy VXL Instruments Ltd Hardware User’s Guide Preface Thank you for purchasing the Itona TC23yy Series Thin Client. This guide contains information to setup and use the hardware of Itona TC23yy Series. The guide consists of the following chapters: •...
-
Page 5: Table Of Contents
Itona TC23yy VXL Instruments Ltd Hardware User’s Guide Table of Contents Introduction ............................6 Overview................................6 Features ................................7 Installation............................8 Step One: Unpack ............................8 Step Two: Prepare............................8 Step Three: Connect accessories and power ....................9 Step Four: Connect to the Server........................11 LAN connection through TCP/IP .......................11 Direct Connection through RS232 ......................12... -
Page 6: Introduction
This guide covers installation and hardware details of Itona TC23yy Series. Itona TC23yy Itona TC23yy Series deliver smart and robust solutions for Thin Client computing. They are aesthetically and ergonomically designed compact desktop, providing simultaneous full screen connectivity to Windows and UNIX application servers – a powerful business alternative to users using Win32 applications while continuing access to legacy UNIX applications. -
Page 7: Features
Itona TC23yy VXL Instruments Ltd Hardware User’s Guide Features The product is equipped with a 10/100 Ethernet port that gives an instant connection to a multi-user Windows NT application server. Also provided are serial, parallel and video display ports. USB and PS/2 compatible keyboard/Mouse ports are available for quick setup and use. -
Page 8: Installation
Step Two: Prepare 1. The site where you want to install the product must have the following • 100~240V AC, 1.2A, 50/60 Hz, 3-pin power Inlet for client (Itona TC23yy). NSURE THAT THE POWER INLET PLUG IS PROPERLY REGULATED AND EARTHED FLOATING... -
Page 9: Step Three: Connect Accessories And Power
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Step Three: Connect accessories and power EFORE CONNECTING ANY CABLES ENSURE POWER CABLE IS UNPLUGED FROM THE UNIT. PLEASE 250V AC 0.75 sq mm, H05VV-F C USE 6A (MIN) / ERTIFIED POWER CORD. - Page 10 Itona TC23YY VXL Instruments Ltd Hardware User’s Guide The table below identifies the devices to be used with each connector of the client. Instructions to connect various accessories Connector Symbol Connect the video cable from your display unit to the video port...
-
Page 11: Step Four: Connect To The Server
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Step Four: Connect to the Server The Thin Client can be physically connected to the server/network in three ways: • LAN connection through TCP/IP • Direct connection through RS232 • Dial-in remote connection through a modem LAN connection through TCP/IP Connect one end of a 10/100 cable to the LAN port of the client. -
Page 12: Direct Connection Through Rs232
Dial-In Remote Connection through Modem Press the power button to power up the Itona TC23yy. The front panel LED lights up and the client boots up with a BEEP sound and takes you to the Connection Manager screen. Refer to the Software User’s Guide for configuring the client. -
Page 13: Specifications
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Specifications Hardware • Processor: VIA C7 ™ nanoBGA2 1GHz • VGA Memory: Shared Video Memory 64MB max • Flash : IDE 40 pin, 32MB • RAM: 256MB Mechanical Itona TC23yy • Height: 228 mm. -
Page 14: Connectors And Cables
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Connectors and Cables Connectors The following tables provide pin details for various connectors on the rear panel of the client. COM Port 9-pin D-type male connector. RS232C compatible, operating at 115.2K baud maximum... -
Page 15: 10/100 Lan Port
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide 10/100 LAN Port RJ-45 modular 8-pin jack. 10/100 Mbps Signal TxD+ TxD- RxD+ RxD- Video Port 15-pin D-type female connector Signal Signal Signal Red return GND No Connection Green Green return GND... -
Page 16: Cables
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Cables 10/100 LAN Cable Cross Connection - (Without Hub) RJ45 RJ45 TXD+ 1 3 RXD+ TXD- 2 6 RXD- 1 TXD+ RXD+ 3 RXD- 6 2 TXD- Straight Connection - (With Hub) -
Page 17: Printer Cable
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide 9-pin to 25-pin Straight Connection 9 Pin 25 Pin Connector Connector (Thin Client) Printer Cable The following table shows the pin connections of the Standard Centronics parallel cable. Some manufacturers change pin functions or polarity on their printers. For such printers, custom cables may be necessary. -
Page 18: Troubleshooting
Itona TC23YY VXL Instruments Ltd Hardware User’s Guide Troubleshooting This chapter contains solutions for problems you may encounter while using the product. Problem Solution • Ensure that the power cord is plugged into an AC outlet. The Power-LED on front panel does not glow when Check the fuse in the power-plug, if available.
