- Page 1 Itona TC4xyy Hardware User’s Guide VXL Instruments Ltd, NO.17, House of Excellence, Electronics City, Hosur Road, Bangalore – 560 100, INDIA www.vxl.net...
-
Page 2: Copyright And Trademark Notices
Copyright and Trademark notices ALL RIGHTS RESERVED. Information in this document is subject to change without notice and does not represent a commitment on the part of the manufacturer. No part of this guide may be reproduced or transmitted in any form or means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of the manufacturer. -
Page 3: Federal Communication Commission (Fcc) Statement
Federal Communication Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 Preface Thank you for purchasing the Itona TC4xyy Series Thin Client. This guide contains information to setup and use the hardware of Itona TC4xyy Series. The guide consists of the following chapters: • Introduction: provides an overview of the product.
-
Page 5: Table Of Contents
Table of Contents Introduction ...6 Overview...6 Features ...7 Optional Features ...7 Installation...8 Step One: Unpack ...8 Step Two: Prepare...8 Step Three: Connect accessories and power ...9 Step Four: Connect to the Server...11 LAN connection through TCP/IP ...11 Direct Connection through RS232 ...12 Dial-In Remote Connection through a Modem...12 Specifications...13 Hardware ...13... -
Page 6: Introduction

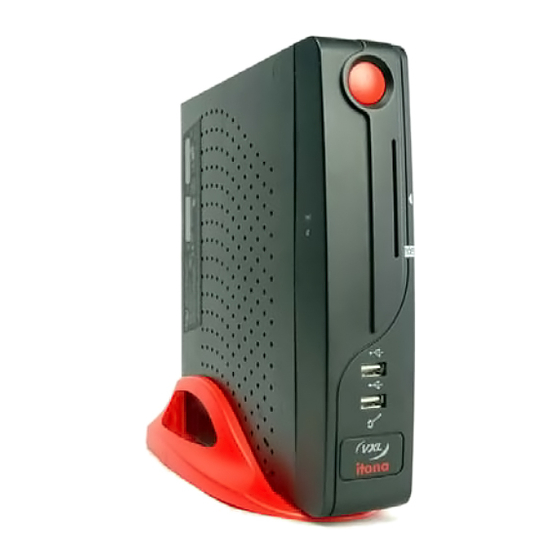

Itona TC4xyy TC43/44yy Itona TC4xyy Series deliver smart and robust solutions for Thin Client computing. They are aesthetically and ergonomically designed compact desktop, providing simultaneous full screen connectivity to Windows and UNIX application servers – a powerful business alternative to users using Win32 applications while continuing access to legacy UNIX applications. -
Page 7: Features
• Smart Card reader • Wireless LAN Note: The optional features cannot be upgraded in the field. Please contact the reseller or dealer from whom you purchased the product for information about optional features. Introduction Itona TC4xyy Hardware User’s Guide... -
Page 8: Installation
Step Two: Prepare 1. The site where you want to install the product must have the following • 100~240V AC, 1.2A, 50/60 Hz, 3-pin power Inlet for client (Itona TC4xyy). NSURE THAT THE POWER INLET PLUG IS PROPERLY REGULATED AND EARTHED GROUND CHASSIS COULD CAUSE AN ELECTRIC SHOCK •... -
Page 9: Step Three: Connect Accessories And Power
Pictures below show the various connectors available on the rear panel of the client. AUDIO LINE OUT EHTERNET PORT LPT PORT PS/2 MOUSE PORT Installation Itona TC4xyy ENSURE POWER CABLE IS UNPLUGED FROM THE UNIT. PLEASE ERTIFIED POWER CORD. Itona TC4xyy Rear view Hardware User’s Guide AUDIO LINE IN 2 –... - Page 10 Connect parallel printer to the parallel port Connect LAN cable to the RJ45 Ethernet port Caution: Ensure that COM1, COM2, Video and Parallel ports are adequately fastened with the screws provided with the cables. Installation Itona TC4xyy Hardware User’s Guide Connector Symbol...
-
Page 11: Step Four: Connect To The Server
Connect one end of a 10/100 cable to the LAN port of the client. Connect the other end to a LAN hub as shown in the figure below. ICA Server Installation LAN Connection through TCP/IP Host 1 Host 2 Ethernet 10/100Base-T Itona TC4XYY Hardware User’s Guide Workstation Winlinx Thin Client... -
Page 12: Direct Connection Through Rs232
Server Press the power button to power up the Itona TC4xyy. The front panel LED lights up and the client boots up with a BEEP sound and takes you to the Connection Manager screen. Refer to the Software User’s Guide for configuring the client. -
Page 13: Specifications
VGA Memory: • Flash : • RAM: • Smart Card reader (optional) • Slim HDD ( optional ) • Wireless LAN ( optional ) Mechanical Itona TC4xyy TC43yy TC44yy • Height: 228 mm. • Width: • Depth: 230 mm. •... -
Page 14: Connectors And Cables
Clear To Send Not Connected Printer Port (Parallel) 25-pin D-type female connector. ECP/EPP compatible. Signal STROBE 2 - 9 DATA 0 – 7 ACKNOWLEDGE BUSY PAPER END ERROR 18 - 25 GROUND Connectors and Cables Itona TC4XYY Hardware User’s Guide... -
Page 15: 10/100 Lan Port
Signal Connectors and Cables Signal Signal Red return GND No Connection Green return GND No Connection Blue return GND Horizontal Sync No Connection Vertical Sync No Connection No Connection Signal Mouse / KBD Clock Itona TC4XYY Hardware User’s Guide... -
Page 16: Cables
RS232 device with a 25-pin connector, 9-pin connector signals must be converted to 25- pin connector signals as shown in the following diagram. 9-pin to 25-pin Cross Connection 9 Pin Connector (Thin Client) SGND Connectors and Cables Itona TC4XYY RJ45 3 RXD+ 6 RXD- 1 TXD+ 2 TXD- RJ45 1 TXD+... -
Page 17: Printer Cable
Please use certified shielded cable only. + Data Bits 0 - 7 - Acknowledge PARALLEL PORT + Paper End 18-25 Connectors and Cables 25 Pin Connector - Strobe PARALLEL + Busy DEVICE - Error Ground Itona TC4XYY Hardware User’s Guide... -
Page 18: Troubleshooting
Troubleshooting This chapter contains solutions for problems you may encounter while using the product. Problem • The Power-LED on front panel does not glow when the client is switched on. • There is no display, though the power-indicating LED glows. •...
